Description

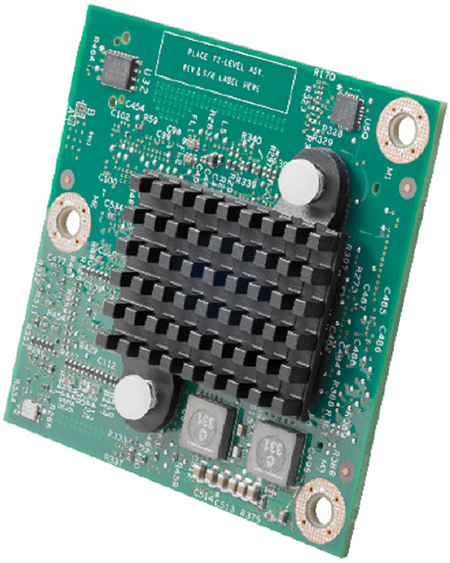

The Cisco SM-X-PVDM-1000 is a high-density Packet Voice Digital Signal Processor (DSP) enhanced services module designed to deliver scalable IP voice, conferencing, transcoding, and media optimization services. Installed in the SM-X slot, this module provides up to 1024 channels of voice processing capacity, making it ideal for large branch, campus, and enterprise unified communications deployments.
Built on multicore DSP technology, the SM-X-PVDM-1000 supports a wide range of voice codecs and media services, enabling efficient call processing, high-quality audio, and seamless interoperability across IP-based networks. It is optimized for use in supported Cisco Integrated Services Routers (ISRs) and Catalyst edge platforms that require high-performance voice and collaboration workloads without expanding physical footprint.
This module supports IP-based voice services only and is well suited for organizations deploying Cisco Unified Communications solutions that require high channel density, scalability, and consistent media performance.
| Specification | Details |
|---|---|
| Manufacturer | Cisco |
| Model | SM-X-PVDM-1000 |
| Module Type | Enhanced Services DSP Module |
| Slot Type | SM-X (Enhanced Services Module Slot) |
| Maximum Voice Channels | 1024 (low complexity) |
| Medium Complexity Channels | 512 |
| High Complexity Channels | 256 |
| Supported Services | IP voice, conferencing, transcoding, media optimization |
| DSP Architecture | Multicore DSP technology |
| Supported Codecs | G.711, G.722, G.729, G.729a/b/ab, iLBC, iSAC (transcoding only) |
| Echo Cancellation | Not supported |
| Noise Reduction | Yes |
| Tone Detection | Yes |
| Gain Control | Yes |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Power Consumption | 50W |
| Input Voltage | 12V |
| Form Factor | SM-X module |
| Application Type | IP-based voice services only |
| Compatibility | Cisco routers with SM-X slots |
| Condition | New |
| SKU | SM-X-PVDM-1000 |
