Description

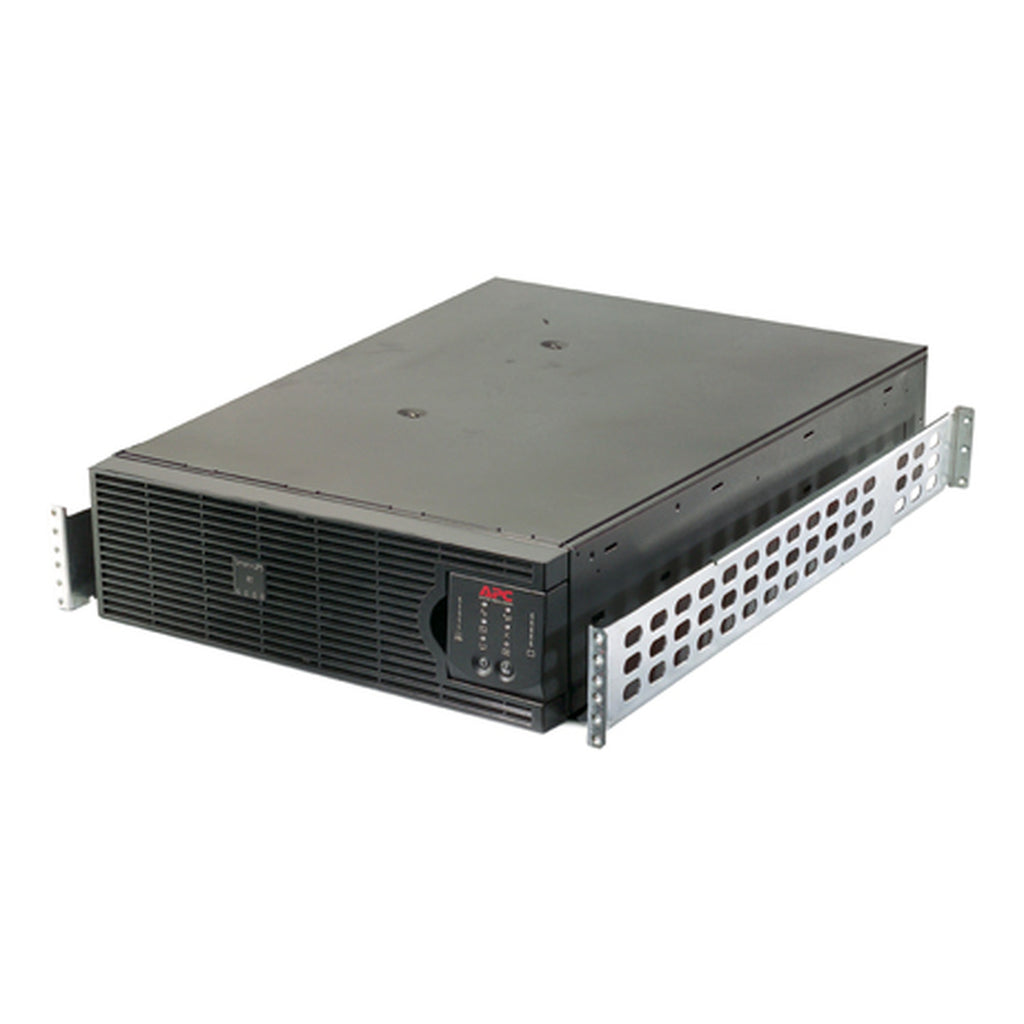

The APC Smart-UPS RT SURTD6000RMXLP3U is a high-performance, 6kVA double-conversion online UPS engineered for critical business applications. Designed for rackmount environments, it delivers dependable 208/240V input with selectable 120V output via multiple NEMA outlets. With true sine wave output, internal bypass, extendable runtime, and a pre-installed Network Management Card, this 3U UPS is ideal for servers, networks, and light industrial needs requiring continuous uptime and remote management.
| Category | Details |
|---|---|
| SKU / Model | SURTD6000RMXLP3U |
| Brand | APC by Schneider Electric |
| UPS Type | On-Line Double Conversion |
| Form Factor | Rackmount (3U) |
| Input Voltage | 208V (Split-phase); also supports 240V |
| Input Connection | NEMA L14-30P |
| Output Voltage | 208V / 240V / 120V |

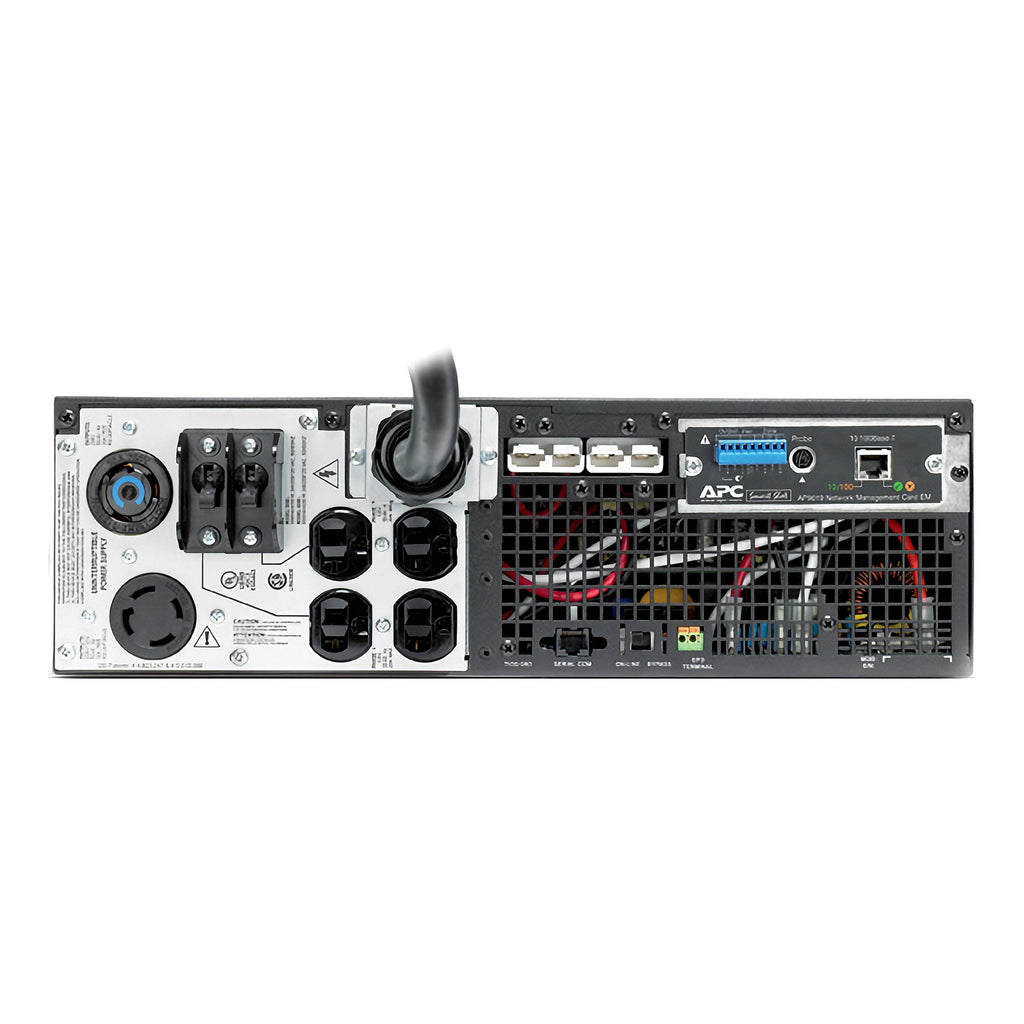

| Output Connections | 4x NEMA 5-20R, 1x NEMA L6-30R, 1x NEMA L14-30R |
| Power Capacity | 6000 VA / 4200 W |
| Efficiency (Full Load) | 90% |
| Battery Type | Lead-acid, hot-swappable |
| Included Battery | 2x Modules (APCRBC140) |
| Recharge Time | 2.5 hours |
| Battery Runtime (Full) | ~4 min at full load |
| Extendable Runtime | Yes |
| Bypass | Internal (Manual and Automatic) |
| Network Management | Pre-installed NMC2 w/ Environmental Monitoring |
| Communication Ports | RS-232, SmartSlot |
| Surge Protection | 480 Joules |
| Audible Alarms | On battery, low battery, overload |
| Rack Mounting | Rails and support feet included |
| Dimensions (HxWxD) | 5.12 x 17.01 x 25.98 in (13 x 43.2 x 66 cm) |
| Weight | 128 lbs (58.06 kg) |
| Environmental Rating | 0–40°C, 0–95% RH, up to 10,000 ft elevation |
| Certifications | CSA Certified |
| Warranty | 2-year repair or replace |
