Description

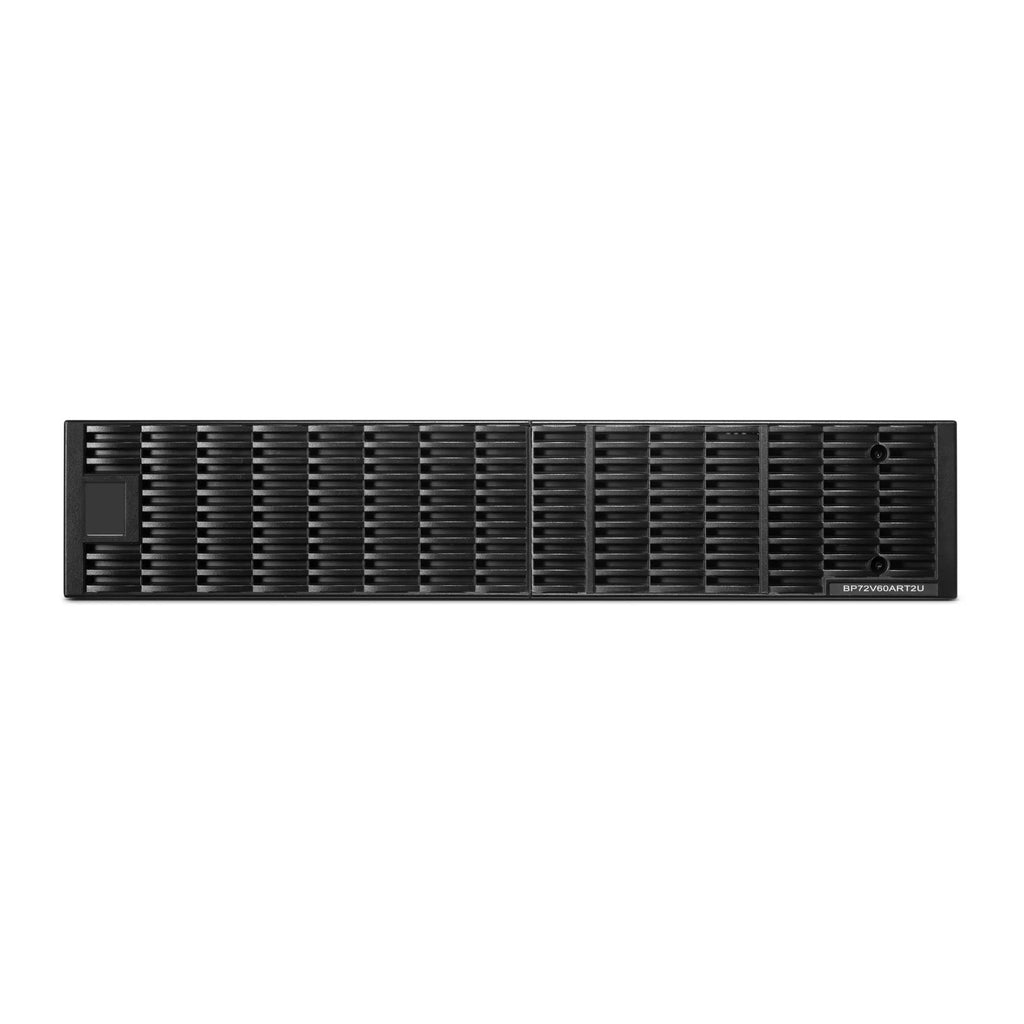

The CyberPower BP72V60ART2U Extended Battery Module is a high-capacity rack/tower convertible battery expansion system designed to significantly extend runtime for compatible CyberPower Smart App Online UPS models during power outages.
Built with Fast Charge Technology and an integrated charger, this module restores backup power quickly while supporting hot-swappable, user-replaceable batteries for simplified maintenance. Its 2U rackmount form factor also allows flexible installation in enterprise server rooms, network closets, and critical IT environments.
With daisy-chain expansion support, up to ten modules can be connected to increase runtime for demanding corporate, storage, VoIP, and edge infrastructure applications.
| Specification Category | Details |
|---|---|
| Product Type | Extended Battery Module (EBM) |
| Brand | CyberPower |
| Model / SKU | BP72V60ART2U |
| Output Voltage | 72 VDC |
| Output Current | 60A |
| Battery Quantity | 12 Batteries |
| Battery Size | 12V / 9Ah |
| Built-In Charger | Yes |
| Typical Recharge Time | 4 Hours (0–90%) |
| Hot Swappable Batteries | Yes |
| User Replaceable Batteries | Yes |
| Expansion Ready (Daisy-Chain) | Yes (up to 10 modules) |
| Form Factor | Rack/Tower Convertible |
| Rack Size | 2U |
| Enclosure Construction | Steel |
| Dimensions (W × H × D) | 17 × 3.5 × 23.6 in (432 × 89 × 599 mm) |
| Weight | 96.8 lbs (43.91 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL 1778, CSA, FCC Class A, RoHS |
| Warranty | 3-Year Limited Warranty |
