Description

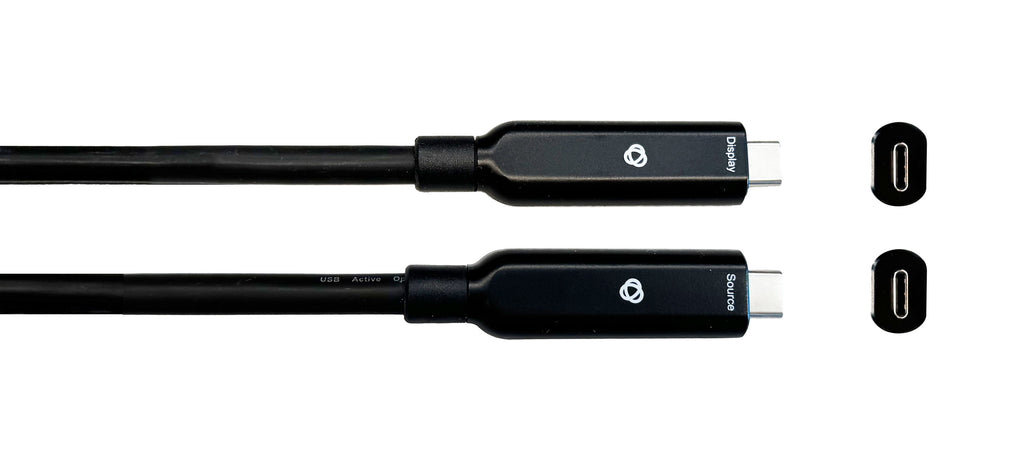

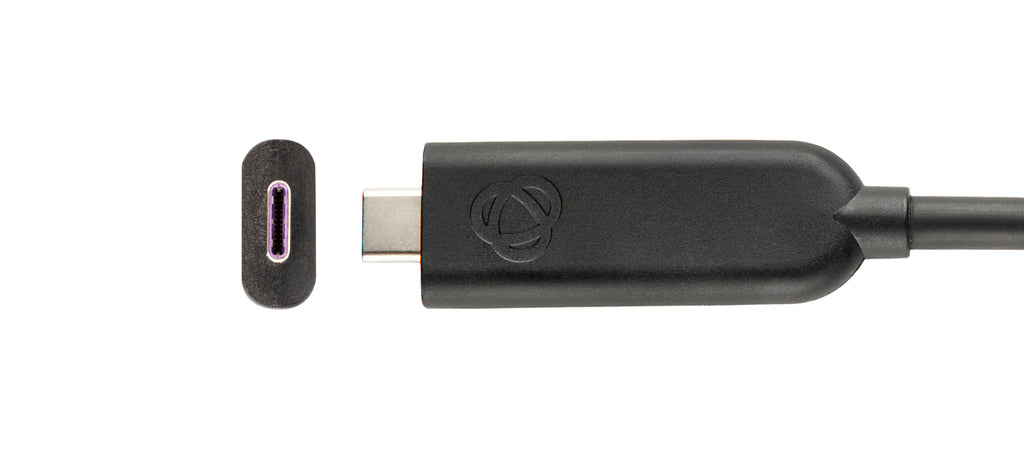

The Kramer CLS-AOCU32/FF-164 is a premium USB-C (M) to USB-C (M) Active Optical Hybrid Cable engineered for long-distance, full-feature connectivity over an extended 164-foot run. Designed for high-performance AV, data, and power transmission, this cable supports 4K@60 4:4:4 video (DP Alt Mode), 10Gbps SuperSpeed+ data, and 60W USB-C power delivery—all simultaneously over one robust AOC link.
Constructed with a durable PVC/LSHF jacket and flexible optical-copper hybrid design, it ensures stable performance in conference rooms, classrooms, workstations, content studios, and device-rich AV environments. Its symmetrical low-profile USB-C connectors allow effortless plug-and-play installation with PC, Mac, mobile devices, monitors, webcams, printers, and more. The cable is fully backward-compatible with USB 1.0/1.1/2.0/3.0 and compliant with CE, FCC, RoHS, and REACH standards.
This extended-length 164-ft version delivers the same reliability, throughput, and quality Kramer is known for—optimized for long-distance USB-C runs without signal loss.
| Category | Specification |
|---|---|
| Cable Type | USB 3.2 Gen-2 Active Optical Hybrid USB-C Cable |
| Video Support | 4K@60 4:4:4 (DP Alt Mode), dual lanes for video + dual lanes for data |
| Data Rate | Up to 10Gbps (USB 3.2 Gen 2) + USB 2.0 |
| Power Delivery | 20V, 3A (60W) |
| Ethernet Support | 10/100/1000 Mbps |
| Connector Type | USB-C Male to USB-C Male, nickel-plated with gold pins |
| Connector Dimensions | 39.5 × 18 × 9 mm (A-side); same for B-side |
| Cable Jacket | PVC, LSHF |
| Cable Diameter | 5.8 mm ± 0.2 mm |
| Minimum Bend Radius | 36 mm |
| Temperature Rating | 80°C |
| Voltage Rating | 30V |
| Conductor Resistance | 28AWG: 237Ω/km max; 20AWG: 38Ω/km max |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 80°C |
| Compliance | CE, FCC, RoHS, REACH; CPR Dca |
| Length | 164 ft |
