Description

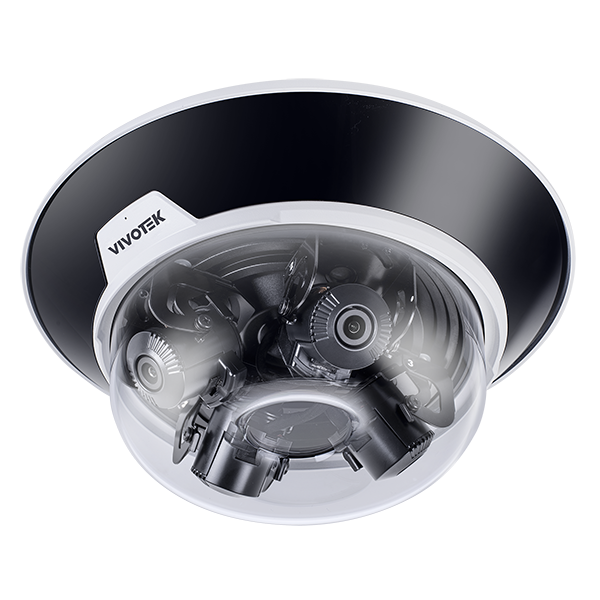

The Vivotek MA9322-EHTV-V2 is a cutting-edge 20MP panoramic IP security camera designed for comprehensive surveillance with four independent 5MP sensors. Each lens offers motorized remote focus and varifocal capabilities (3.2–7.7 mm), enabling flexible field-of-view customization for complete coverage across expansive areas such as parking lots, airports, city surveillance, or large commercial facilities.
Equipped with advanced AI-driven analytics, the MA9322-EHTV-V2 delivers powerful object detection, vehicle and people classification, and attribute extraction — including clothing color, accessories, and vehicle types. Built-in deep learning accelerators ensure real-time intelligent monitoring and smart event detection such as intrusion, loitering, line crossing, and crowd analysis.
Engineered for outdoor performance, the camera is rated IP66 and IK10 for weather and impact resistance, with a robust operating temperature range of -40°C to 55°C. It features built-in IR illuminators with a range of up to 30 meters, Smart IR III technology to prevent overexposure, and WDR Pro for balanced imaging in challenging lighting conditions. With multi-stream H.265/H.264/MJPEG encoding, two-way audio, secure network protocols, and flexible storage options, the MA9322-EHTV-V2 offers professional-grade surveillance for mission-critical security deployments.
| Category | Specification |
|---|---|
| Camera | 4 × 1/2.8" Progressive CMOS sensors, 5MP each (20MP total) |
| Max. Resolution | 2560 × 1920 per channel |
| Lens | Motorized vari-focal, remote focus; f = 3.2–7.7 mm |
| Aperture / Iris | F1.85–F2.4 / Fixed Iris |
| Field of View | 94°–43° (H), 67°–33° (V), 129°–54° (D) |
| Day/Night | Yes, with removable IR-cut filter |
| IR Illumination | Up to 30 m with Smart IR III (8 IR LEDs) |
| Shutter Speed | 1/30 s to 1/32,000 s |
| WDR | WDR Pro, 120 dB |
| Digital Zoom | 48× ePTZ (4× IE, 12× built-in) |
| Minimum Illumination | 0.07 lux (Color), 0.005 lux (B/W), 0 lux with IR |
| Video Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 30 fps @ 2560 × 1920 × 4 (H.265/H.264) |
| Streams | Up to 3 streams/channel (26 total profiles) |
| Audio | Two-way audio (requires AO-006 cable), built-in mic, external mic & line-out support |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP/RTP/RTCP, FTP/SFTP, NTP, SNMP, TLS 1.2/1.3, IEEE 802.1X, ONVIF G/S/T/M |
| Security | HTTPS, signed firmware, secure boot, CSRF protection, FIPS 140-2 TPM, Trend Micro IoT Security |
| AI Analytics | People & vehicle detection, best shot, attribute extraction, intrusion, loitering, line crossing, crowd detection, unattended/missing object detection |
| Storage | MicroSD/SDHC/SDXC (up to 1TB), NAS |
| Event Triggers | Motion/audio detection, tampering, cyberattack, digital input, schedule, shock detection |
| Event Actions | Audio clip, digital output, email, FTP/SFTP, HTTP, NAS, SD card |
| Power Input | IEEE 802.3at PoE (Class 4), AC 24V (optional) |
| Power Consumption | Max. 25.5 W |
| Operating Conditions | -40°C to 55°C (IR off), -40°C to 50°C (IR on), 98% RH |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Certifications | CE, FCC, UL, CB, RCM, UKCA, BIS, BSMI |
| Dimensions / Weight | Ø 275 × 118 mm / 2.7 kg |
| Included Accessories | Quick installation guide, alignment sticker, desiccant bag, screwdriver, screw pack |
