Description

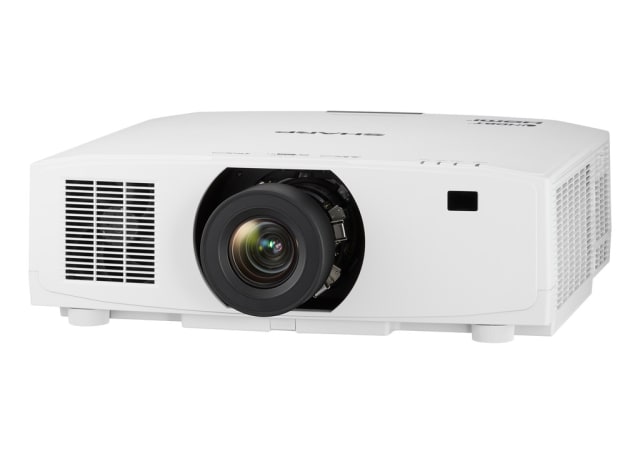

The Sharp XP-V731U-W is a high-brightness professional installation projector engineered for higher education, corporate environments, houses of worship, museums, and large venue applications. Delivering 7,300 lumens (7,600 max) of laser-driven brightness and WUXGA (1920 × 1200) resolution, this model ensures vivid, detailed images even in environments with significant ambient light.
Built on advanced 0.76" LCD laser technology, the XP-V731U-W supports 4K input (4096 × 2160) and HDR10/BT.2020 signals, allowing stunning 4K30 content playback through Sharp’s high-performance video processing. Its long-life laser light source delivers up to 20,000 hours of operation with instant-on performance and reduced maintenance requirements.
Designed for installation flexibility, the projector features motorized zoom and focus lenses (optional bayonet-style lenses), wide lens shift (+50/-10% vertical, ±20% horizontal), roll-free orientation, portrait support, geometric correction, edge blending, and built-in stacking correction for up to four projectors. Integrated HDBaseT, dual HDMI (2.0 with HDCP 2.2), and comprehensive control system compatibility (AMX, Crestron, Extron, PJLink) make it ideal for complex AV infrastructures.
With its clean white chassis, quiet operation (31 dB in Eco mode), and enterprise-grade reliability, the XP-V731U-W is purpose-built for demanding professional installations that require performance, flexibility, and long-term value.
| Specification | Details |
|---|---|
| Model | XP-V731U-W |
| Display Technology | 0.76" LCD Laser |
| Brightness (Typical) | 7,300 Lumens |
| Brightness (Maximum) | 7,600 Lumens |
| Native Resolution | WUXGA 1920 × 1200 |
| Maximum Input Resolution | 4K (4096 × 2160) |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | Up to 3,000,000:1 (Dynamic Contrast) |
| Laser Light Source Life | Up to 20,000 hours |
| Screen Size | 100"–400" (with XP44ML) / 50"–500" (with compatible lenses) |
| Projection Distance | 0.7 m – 50.9 m |
| Lens Type | Optional motorized bayonet lenses (sold separately) |
| Lens Shift | +50/-10% Vertical, ±20% Horizontal |
| Keystone Correction | ±30° Horizontal / ±30° Vertical |
| Geometric Correction | Advanced multi-surface projection capability |
| Stacking Support | Up to 4 projectors (stacking correction built-in) |
| Edge Blending | Integrated multi-projector blending |
| Inputs | 2× HDMI 2.0 (HDCP 1.4/2.2), 1× HDBaseT |
| Control Ports | RS-232, IR, DDC/CI |
| Audio Output | Stereo Mini Jack |
| Power Requirements | 100–240V AC, 50/60 Hz |
| Power Consumption | 456W (Normal) / 412W (Eco) |
| Fan Noise | 40 dB Normal / 31 dB Eco |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (W×D×H) | 19.8 × 16.2 × 6.6 in (503 × 411 × 168 mm) |
| Weight | 24.7 lbs (11.2 kg) |
| Operating Temperature | 32°–113°F (0°–45°C) |
| Operating Altitude | Up to 8,500 ft (2,600 m) |
| Chassis Color | White |
| Lens Included | No – lens sold separately |
