Description

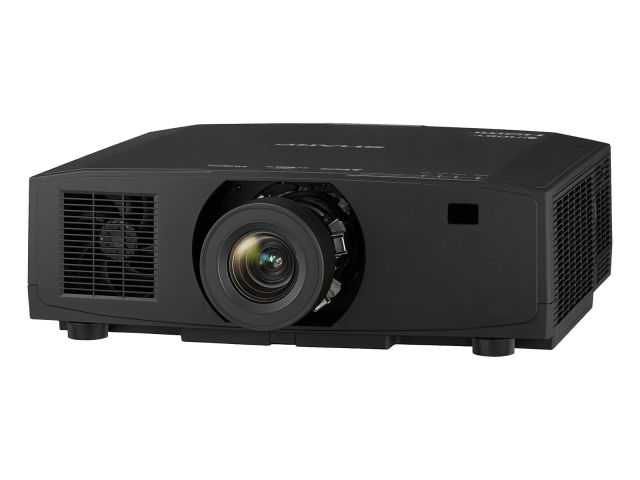

The Sharp XP-V731U-B is a high-brightness professional installation projector engineered for higher education, corporate environments, museums, houses of worship, and large venues. Featuring a powerful 7300-lumen laser light source, WUXGA (1920 × 1200) resolution, and support for 4K input signals, this projector delivers exceptional clarity, color accuracy, and long-term reliability.
Designed for flexible installation, the XP-V731U-B supports motorized interchangeable lenses (sold separately) with throw distances from 0.7 to 50.9 meters, enabling precise image placement in virtually any environment. Roll-free capability, geometric correction, stacking correction (up to four projectors), and edge blending ensure seamless performance across complex installations.
The long-life laser light source provides up to 20,000 hours of operation with instant-on performance and consistent brightness. Built-in HDBaseT, dual HDMI 2.0 inputs with HDCP 2.2, and advanced control compatibility (AMX, Crestron, Extron, PJLink) simplify integration into modern AV infrastructures.
With support for HDR10, BT.2020 signals, and Sharp’s proprietary 4K processing, the XP-V731U-B produces detailed, high-impact visuals ideal for large-format projection applications.
| Specification | Details |
|---|---|
| Model | XP-V731U-B |
| Display Technology | 0.76" LCD |
| Brightness (Typical) | 7,300 Lumens |
| Brightness (Maximum) | 7,600 Lumens |
| Native Resolution | WUXGA 1920 × 1200 |
| Maximum Input Resolution | 4K 4096 × 2160 |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | Up to 3,000,000:1 (Dynamic Contrast) |
| Light Source | Laser |
| Laser Life | Up to 20,000 Hours |
| Lens | Optional motorized bayonet-style lenses (sold separately) |
| Lens Shift | +50/-10% Vertical, ±20% Horizontal |
| Throw Distance | 0.70 to 50.9 meters |
| Keystone Correction | ±30° Horizontal / ±30° Vertical |
| Edge Blending | Integrated |
| Stacking Correction | Built-in (Up to 4 projectors) |
| HDBaseT | Yes (HDCP 1.4/2.2) |
| HDMI Inputs | 2 × HDMI 2.0 (HDCP 1.4/2.2) |
| External Control | RS-232, IR, DDC/CI |
| Power Requirements | 100–240V AC, 50/60 Hz |
| Power Consumption | 456W (Normal) / 412W (Eco) |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (W × D × H) | 19.8 × 16.2 × 6.6 in. (503 × 411 × 168 mm) |
| Net Weight | 24.7 lbs (11.2 kg) |
| Fan Noise | 40 dB (Normal) / 31 dB (Eco) |
