Description

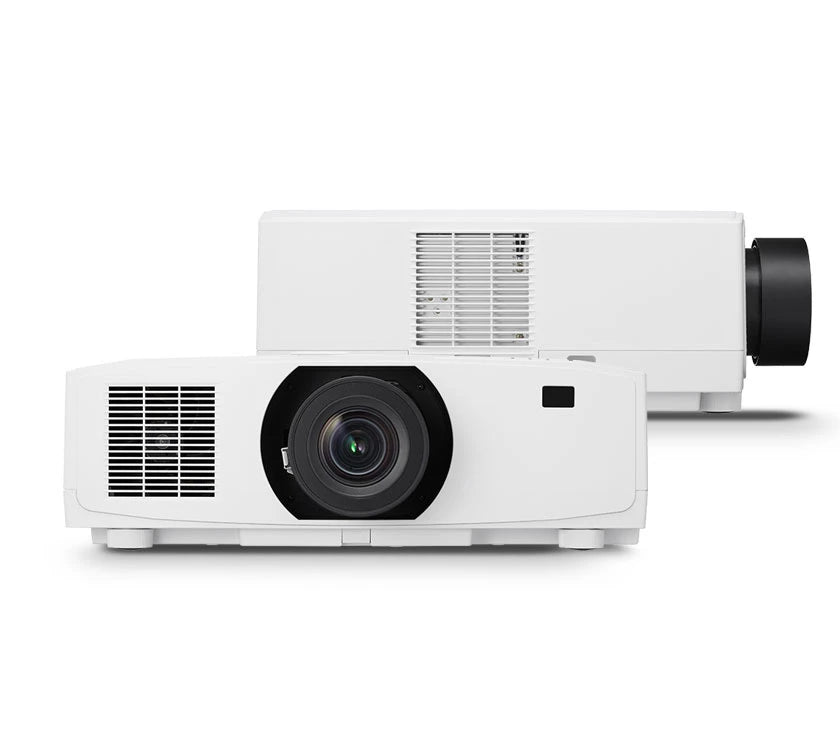

The Sharp XP-V801U-W is a high-brightness professional installation projector engineered for higher education, corporate environments, houses of worship, museums, and large venues. Delivering 8,000 lumens of typical brightness and WUXGA (1920 × 1200) resolution with 4K signal support, this laser projector ensures vivid, detailed images even in high ambient light conditions.
Powered by a long-life dual blue laser light source rated up to 20,000 hours, the XP-V801U-W offers instant-on performance, reduced maintenance, and consistent white balance throughout its lifespan. Its motorized bayonet-style interchangeable lens system (sold separately) provides exceptional installation flexibility with projection distances from 0.7m to 50.9m and support for ultra-short, short, and long throw options.
Advanced built-in features such as edge blending, stacking correction (up to four projectors), geometric correction, roll-free installation, and integrated HDBaseT connectivity make it ideal for complex AV environments. With support for HDR10, BT.2020, AMX, Crestron RoomView, Extron XTP, and PJLink, the XP-V801U-W integrates seamlessly into professional control systems.
Designed for demanding installations, this 4K-ready laser projector delivers powerful performance, flexibility, and long-term reliability.
| Specification | Details |
|---|---|
| Model | XP-V801U-W |
| Display Technology | 0.76" LCD |
| Brightness (Typical) | 8,000 Lumens |
| Brightness (Maximum) | 8,300 Lumens |
| Native Resolution | WUXGA 1920 × 1200 |
| Maximum Supported Resolution | 4K (4096 × 2160) |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | Up to 3,000,000:1 (Dynamic Contrast) |
| Light Source | Dual Blue Laser |
| Laser Life | Up to 20,000 Hours |
| Screen Size | 50" – 500" (depending on lens) |
| Projection Distance | 0.7m – 50.9m |
| Lens Type | Interchangeable motorized bayonet style (sold separately) |
| Lens Shift | +50/-10% Vertical, ±20% Horizontal |
| Keystone Correction | ±30° Horizontal, ±30° Vertical |
| Geometric Correction | Multi-surface projection (spheres, cylinders, corners) |
| Edge Blending | Built-in |
| Stacking | Up to 4 projectors |
| Inputs | 2 × HDMI 2.0 (HDCP 1.4/2.2), 1 × HDBaseT |
| Audio Output | Stereo Mini Jack |
| External Control | RS-232, IR, DDC/CI |
| Power Requirements | 100–240V AC, 50/60 Hz |
| Power Consumption | 490W (Normal), 445W (Eco) |
| Fan Noise | 42 dB Normal / 32 dB Eco |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (W × D × H) | 19.8 × 16.2 × 6.6 in. (503 × 411 × 168 mm) |
| Net Weight | 24.7 lbs. (11.2 kg) |
| Filter Life | Up to 10,000 Hours |
| Operating Temperature | 32–113°F (0–45°C) |
