Description

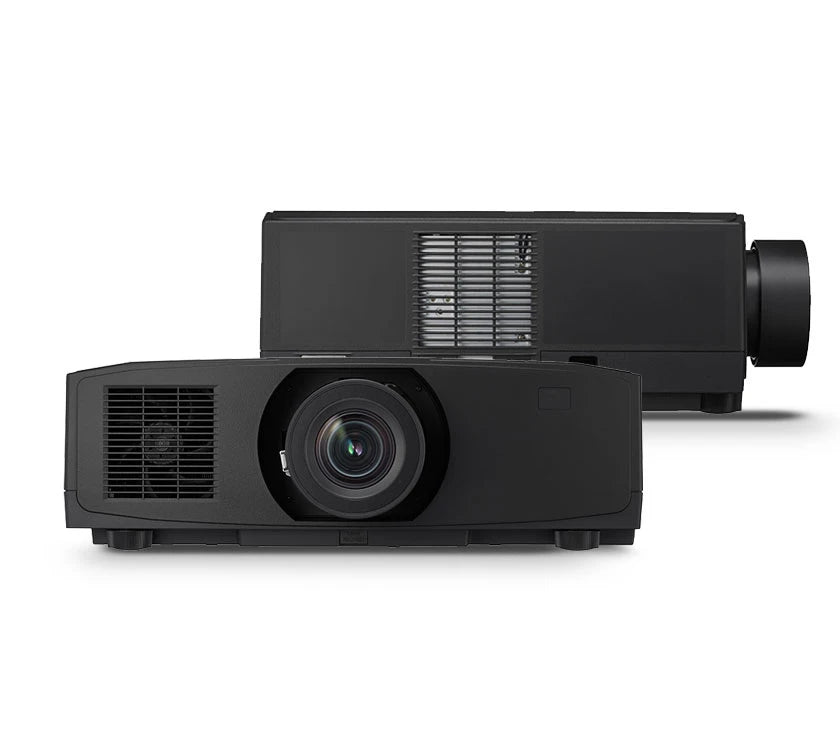

The Sharp XP-V801U-B is a high-brightness, professional LCD laser installation projector designed for higher education, corporate environments, houses of worship, museums, and large venues. Delivering 8,000 lumens of typical brightness and WUXGA (1920 × 1200) resolution, this model ensures vivid, detailed visuals even in rooms with high ambient light.
Built on Sharp’s V Series laser platform, the XP-V801U-B supports 4K input signals up to 4096 × 2160 and HDR10 with BT.2020 compatibility. Dual blue laser light sources provide exceptional color stability and long-term reliability, while the 20,000-hour laser life reduces maintenance and total cost of ownership.
Engineered for flexible installations, the projector supports motorized bayonet-style interchangeable lenses (sold separately), roll-free orientation, portrait setup, geometric correction, and advanced keystone adjustment. Built-in stacking correction (up to four projectors) and edge blending enable seamless multi-projector configurations for large-scale displays.
With integrated HDBaseT, dual HDMI 2.0 inputs, and comprehensive control compatibility (AMX, Crestron RoomView, Extron XTP, PJ Link), the XP-V801U-B simplifies system integration while maintaining full professional-grade performance.
Ideal for auditoriums, lecture halls, sanctuaries, and large conference rooms, the Sharp XP-V801U-B delivers brightness, scalability, and installation versatility in one powerful platform.
| Specification | Details |
|---|---|
| Model | XP-V801U-B |
| Display Technology | 0.76" LCD |
| Brightness (Typical) | 8000 Lumens |
| Brightness (Maximum) | 8300 Lumens |
| Native Resolution | WUXGA 1920 × 1200 |
| Maximum Supported Resolution | 4096 × 2160 (4K Ready) |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9, 21:9) |
| Contrast Ratio | Up to 3,000,000:1 (Dynamic Contrast) |
| Light Source | Dual Blue Laser |
| Laser Life | Up to 20,000 hours |
| Screen Size | 50" – 500" (lens dependent) |
| Projection Distance | 0.70 m – 50.9 m (lens dependent) |
| Lens Type | Motorized zoom & focus, interchangeable bayonet style (sold separately) |
| Lens Shift | +50% / -10% Vertical, ±20% Horizontal |
| Keystone Correction | ±30° Horizontal, ±30° Vertical |
| Geometric Correction | Supports projection on curved and non-standard surfaces |
| Stacking Capability | Up to 4 projectors with built-in stacking correction |
| Edge Blending | Integrated |
| Inputs | 2 × HDMI 2.0 (HDCP 1.4/2.2), 1 × HDBaseT |
| Output | Audio Out (Stereo Mini Jack) |
| External Control | RS-232, IR, DDC/CI |
| Network / Control Support | AMX Beacon, Crestron RoomView, Extron XTP, PJ Link |
| Power Requirements | 100–240V AC, 50/60 Hz |
| Power Consumption | 490W (Normal) / 445W (Eco) |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (W × D × H) | 19.8" × 16.2" × 6.6" |
| Weight | 24.7 lbs (11.2 kg) |
| Fan Noise | 42 dB Normal / 32 dB Eco |
