Description

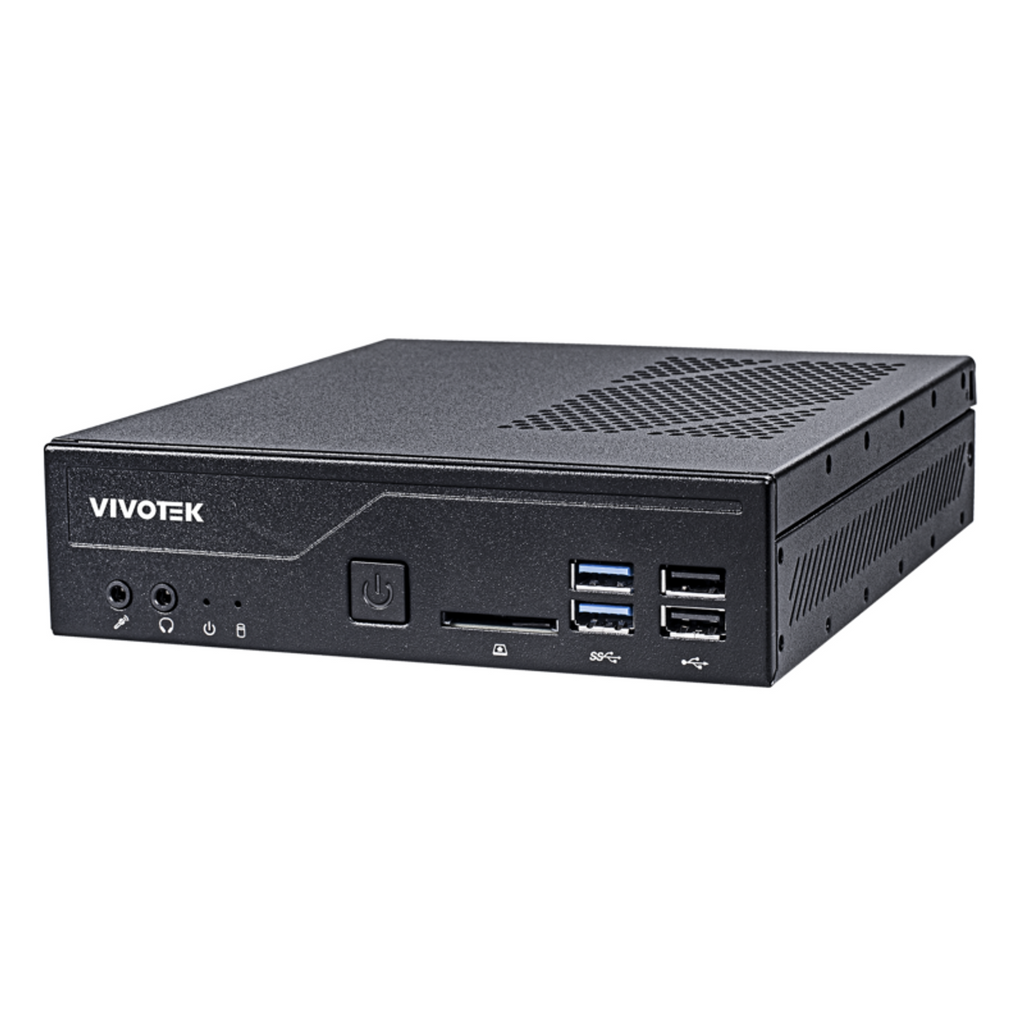

The Vivotek IE8213-FM is an advanced VAST Face Facial Recognition Content Management System (CMS) designed to deliver high-performance, secure, and scalable biometric access control and attendance management. By utilizing facial recognition as a non-transferable credential, IE8213-FM provides a more secure alternative to traditional access cards, ensuring seamless authentication and identity verification in a wide range of applications — from security checkpoints and corporate facilities to visitor management and time attendance systems.
Powered by an Intel® i7 processor and 32GB of DDR4 memory, the IE8213-FM supports up to 50,000 face profiles and 128 connected devices including cameras, tablets, and workstations. Its feature-rich dashboard offers real-time monitoring, infographic-based analytics, and detailed reporting to enhance situational awareness and decision-making. Advanced rule-based automation allows administrators to trigger actions based on events, schedules, POI profiles, or group affiliations, while comprehensive POI management tools streamline enrollment, grouping, and reporting workflows.
With its hardened HTTPS security, RESTful API support, and compatibility with VIVOTEK VAST2, VAST FaceVisitor, and other CMS platforms, the IE8213-FM is a robust and future-ready solution for enterprise-grade facial recognition deployments.
| Specification | Details |
|---|---|
| Model | IE8213-FM |
| Processor | Intel® i7-10700 |
| Memory | 32GB DDR4-2666 RAM |
| Storage | 2.5" 500GB SSD |
| Operating System | Linux |
| Maximum Face Database | 50,000 profiles |
| Device Support | Up to 128 devices |
| Network | 10/100/1000 Mbps Ethernet |
| Power Input | 100–240V AC |
| Power Consumption | Max. 90W |
| Dimensions (L x W x H) | 190 x 165 x 43 mm |
| Weight | 1.3 kg (net), 2.1 kg (gross) |
| Certifications | CE, FCC |
| System Architecture | Three-tier (Web, Application, Database Server) |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP, HTTPS |
| Supported Hypervisors | VMware, Hyper-V, VirtualBox |
| Container Type | Docker |
| Database Type | MongoDB |
| Security Features | Single device login, renewable session tokens, hardened HTTPS |
| Interface | Web client (Chrome, Firefox) |
| Supported Languages | English, Traditional Chinese |
| Camera Installation Height | Up to 3.0 m |
| Image Modes | Color, Monochrome |
| Robustness | Handles facial expressions, eyewear, hair changes, irregular lighting, partial obstruction |
| Supported I/O Devices | Moxa E1214, Advantech ADAM 60XX, VIVOTEK AO-20W |
| IP-to-Wiegand Converters | Doorcard DCT-4TW26, VIVOTEK AO-20W |
| Notification Methods | HTTP GET/POST, WebSocket |
| POI Management | Web enrollment, card or facial authentication, batch enrollment, group management |
| Reporting | Attendance, event, action, and investigation reports with Excel export |
| Automation & Rules | Trigger relays, IP-to-Wiegand, HTTP commands based on event/location/POI |
| System Compatibility | VIVOTEK VAST2, VAST Face CMS, VAST FaceVisitor |
| Applications | Security access, VIP recognition, contactless clock-in, identity verification |
