Description

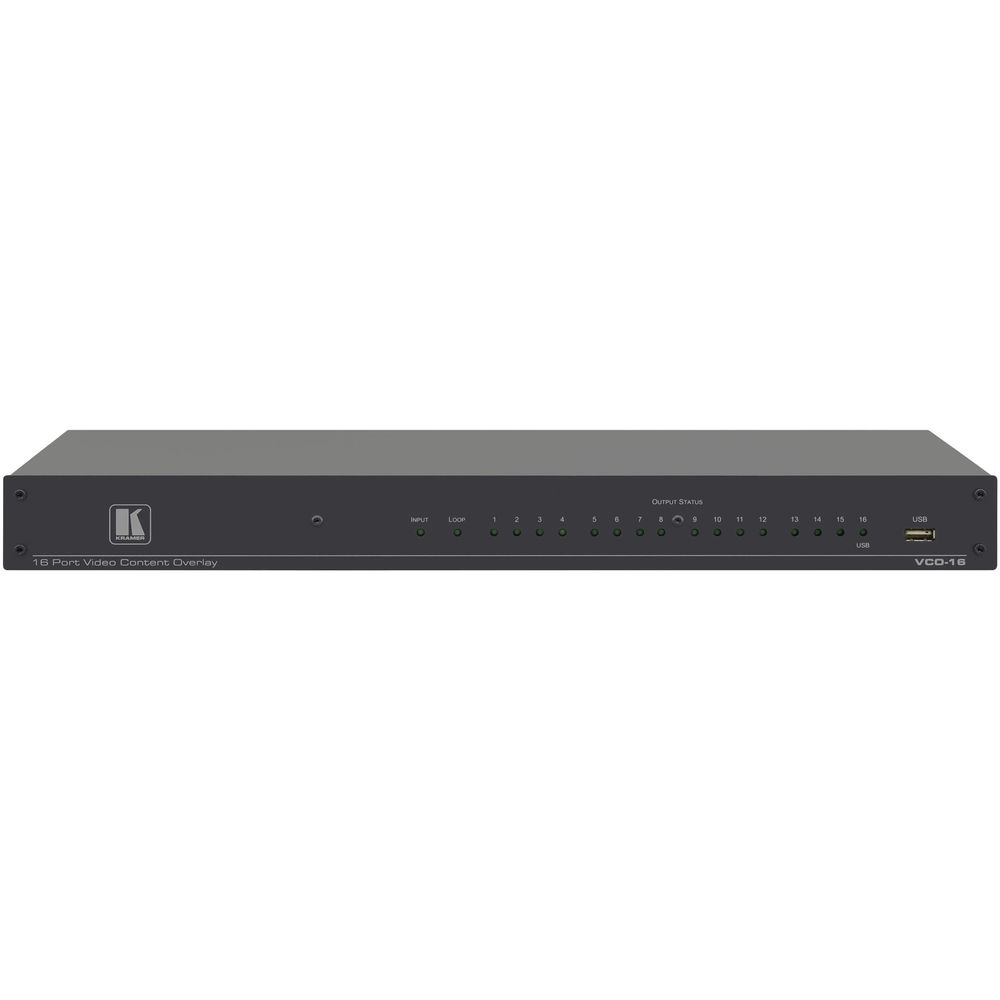

The Kramer VCO-16/110V is a professional-grade 16-port Video Content Overlay (VCO) solution designed for high-impact digital signage, hospitality, retail, sports venues, and multi-display environments. It enables users to overlay static or animated graphics, promotional messages, alerts, and announcements onto any HDMI video feed in full HD resolution (1080p60 or 1920×1200).

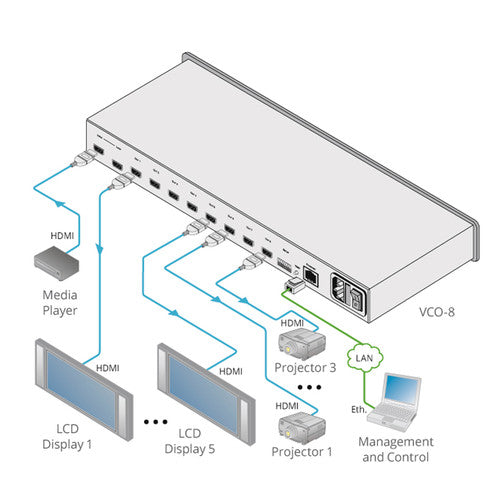

Engineered for scalability and easy centralized management, the VCO-16 allows you to control and schedule separate overlay layers for each of its 16 HDMI outputs—ideal for environments requiring different content per display. With looping HDMI connectivity, multiple units can be daisy-chained to create systems with dozens of synchronized outputs.
Its built-in Ethernet interface integrates seamlessly with the Kramer VCO Setup Application, enabling simple device configuration, overlay creation, scheduling, IP management, and real-time monitoring. Housed in a 19" 1U rackmount enclosure and powered by a universal 110V AC input, the VCO-16/110V is a cost-effective, reliable, and scalable platform for delivering dynamic on-screen messaging across any display network.
| Category | Specification |
|---|---|
| SKU | VCO-16/110V |
| Product Type | 16-Port Video Content Overlay Distribution Amplifier |

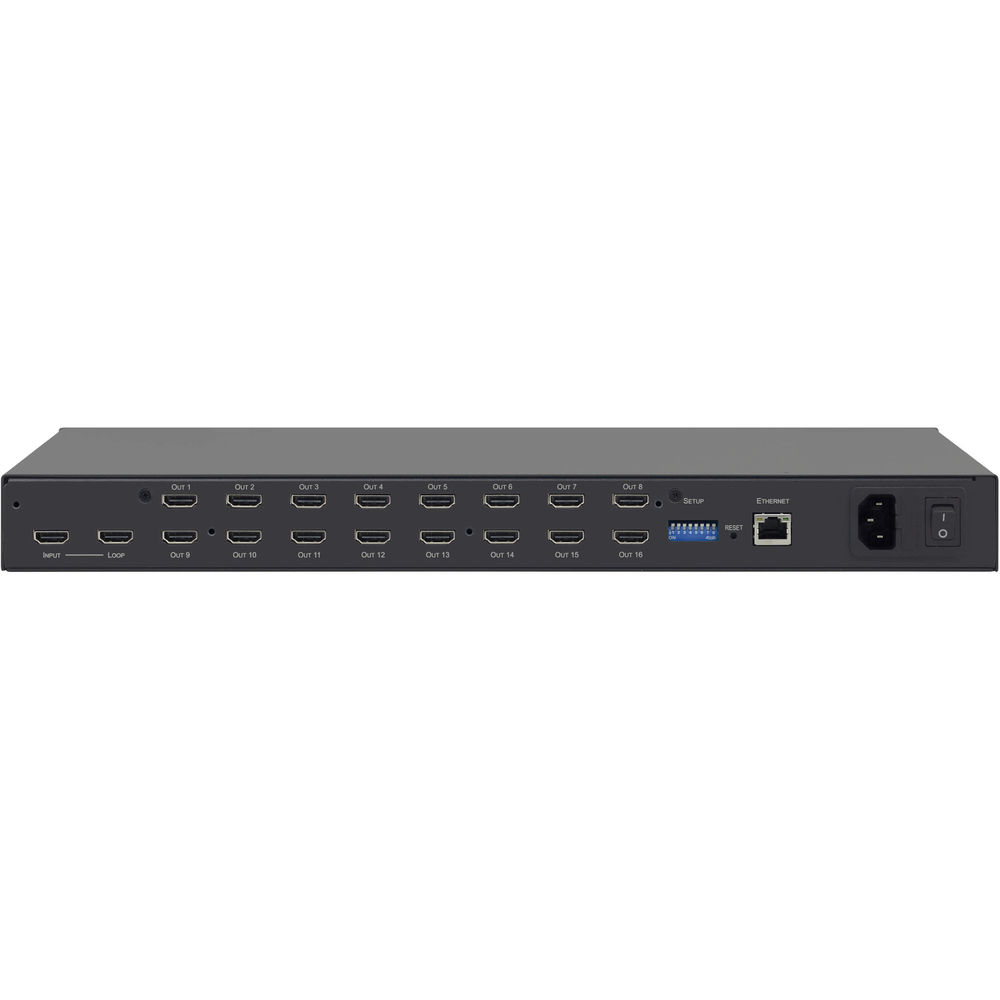

| Inputs | 1 × HDMI Input |
| Outputs | 16 × HDMI Outputs |
| Loop-Through | 1 × HDMI Loop Output for daisy-chaining additional VCO units |
| Maximum Resolution | 1080p60, 1920×1200 |
| Overlay Capability | Static or animated PNG/JPG/PSD overlays; transparency and movement control |
| Overlay Management | Via Kramer VCO Setup Application; per-output overlay assignment and scheduling |
| Network Interface | 1 × Ethernet port for setup, control, and IP configuration |
| IP Addressing | Static IP via DIP switches (last octet); higher octets configurable in software |
| Reset/Test Functions | Rear RESET button for IP restore and test pattern activation |
| Chassis | 19" 1U rackmount enclosure |
| Power Input | 110V AC (AC connector with fuse) |
| Use Cases | Digital signage, retail messaging, hospitality, entertainment venues, corporate display networks |
| Special Features | Unlimited overlay templates, error reporting, per-display control, scheduling engine |
