Description

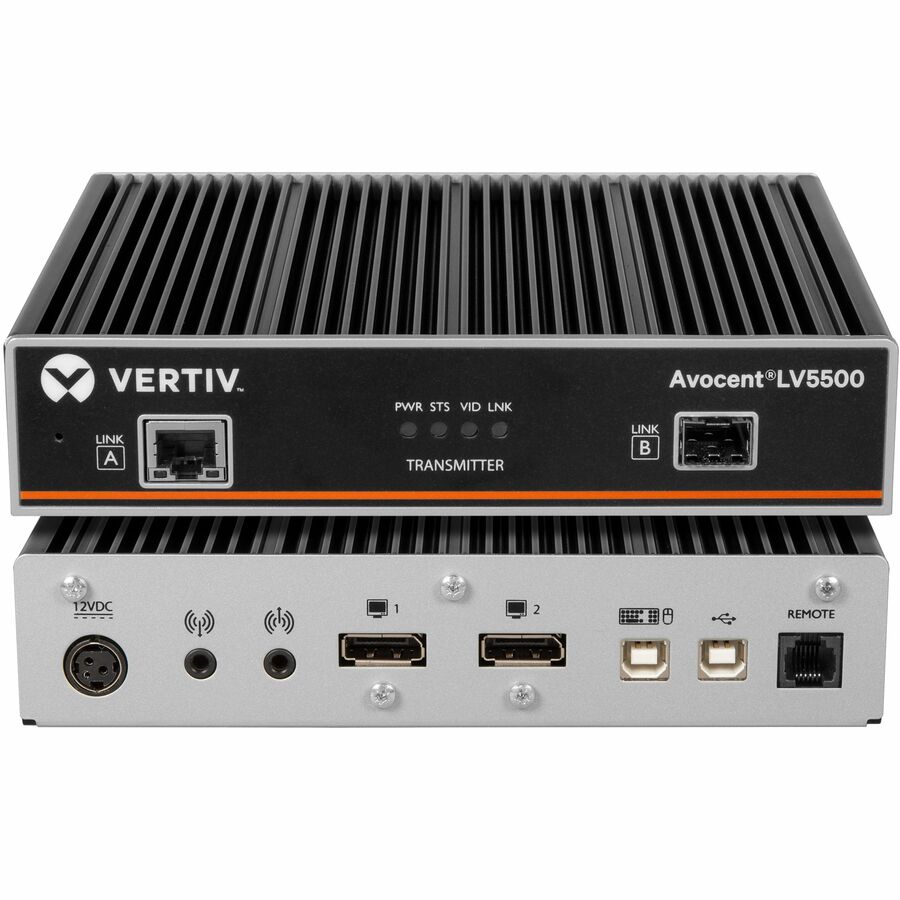

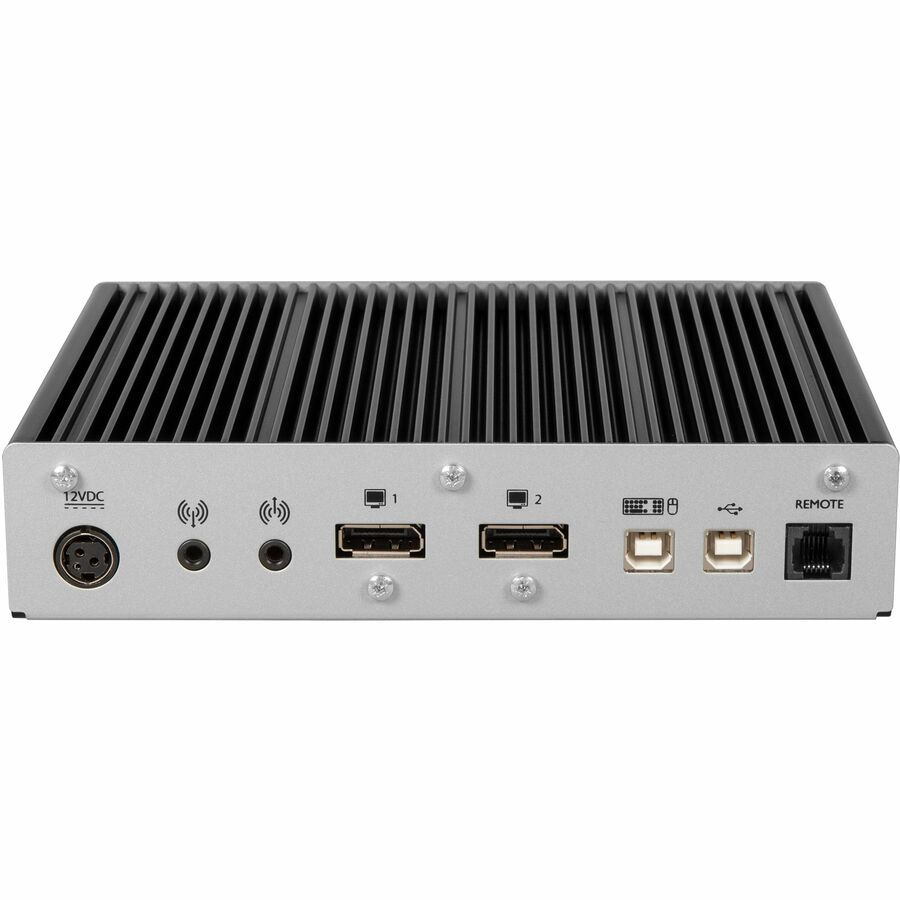

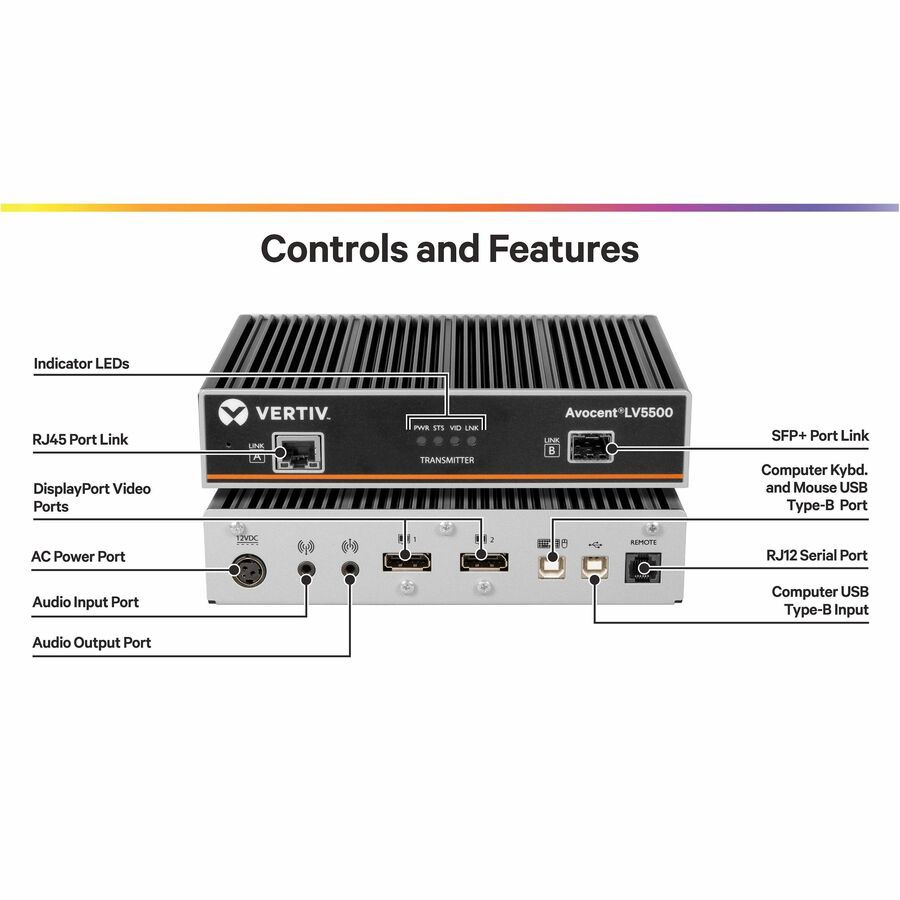

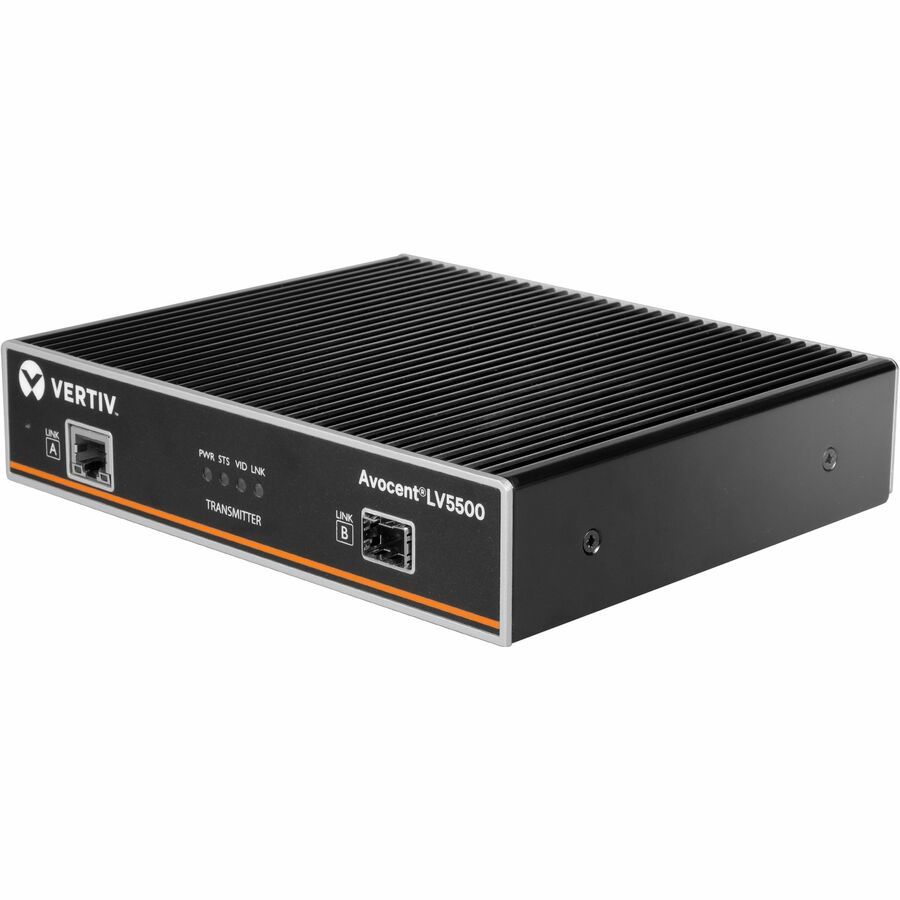

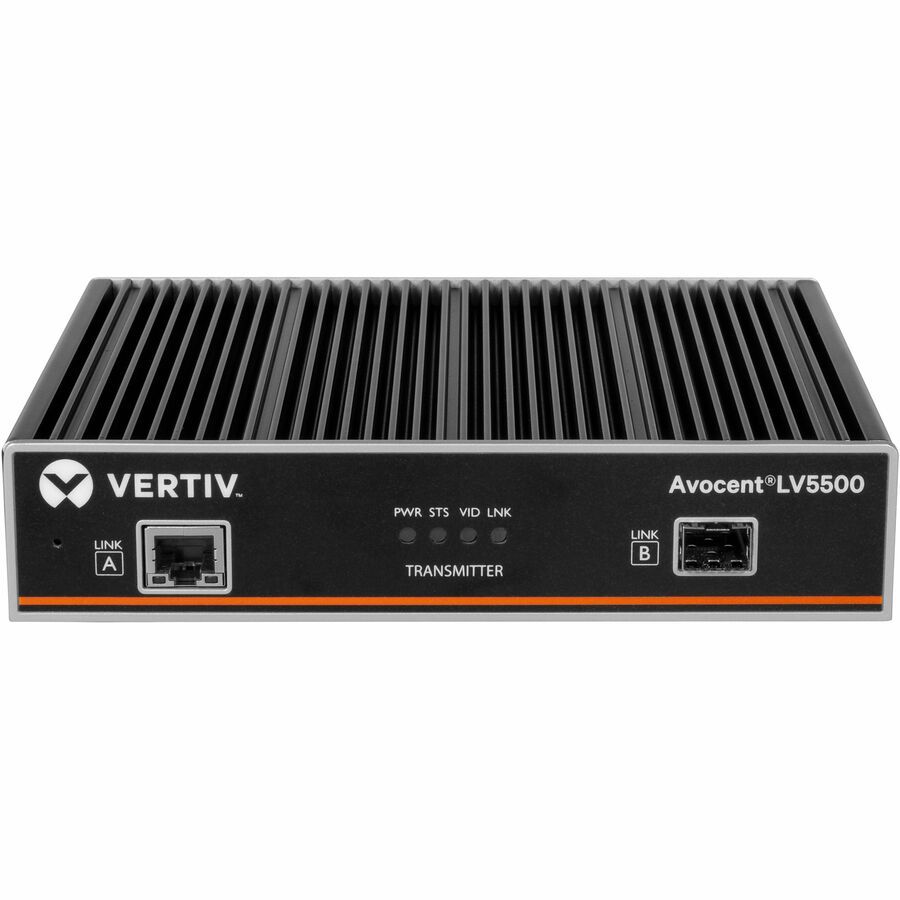

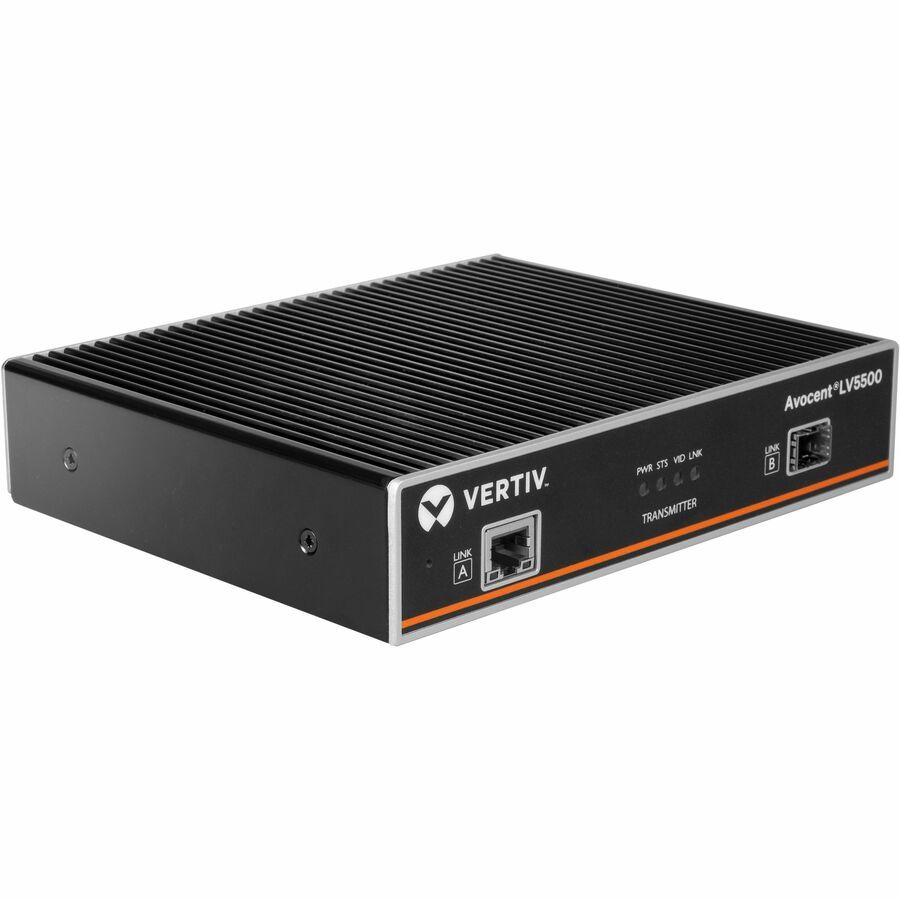

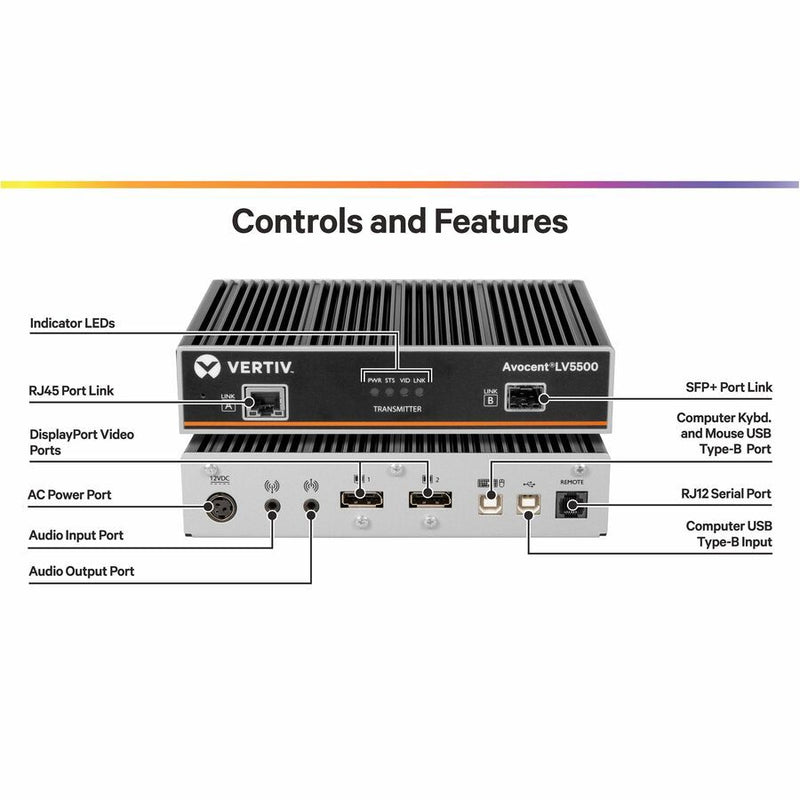

The Vertiv Avocent LV5500T-400 is a high-performance KVM extender transmitter designed to deliver seamless desktop experience over distances up to 13,123 feet. Supporting 4K@60Hz resolution over DisplayPort, this digital KVM unit provides true USB emulation, HD audio, and local video output for efficient, real-time access.
Ideal for secure enterprise environments, it offers signed firmware upgrades, EDID management, and flexible connectivity via copper or fiber. When paired with the LV5500R receiver, the LV5500T enables dual or single-head 4K transmission with USB 2.0 performance across high-resolution displays, ensuring zero latency and maximum uptime.
| Category | Details |
|---|---|
| Brand Name | Vertiv AVOCENT |
| Product Line | LongView |
| Series / Model | 5000 / LV5500T |
| Manufacturer Part Number | LV5500T-400 |
| Product Type | KVM Extender Transmitter |
| Connectivity Technology | Wired |
| Graphic Mode / Max Res | 4K @ 60Hz / 4096 x 2160 |
| Video Interface | DisplayPort |
| USB Ports | 2 x USB 2.0 |
| Audio Ports | Headphone and Microphone |
| Network Interface | 1 x RJ-45 |
| Users Supported | 1 Local, 1 Remote |
| Max Operating Distance | 13,123.36 ft (4,000 m) |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | 18W |
| Form Factor | 1U Rack-Mountable |
| Dimensions (H x W x D) | 1.54" x 7.32" x 5.83" |
| Weight | Approx. 2.84 lbs |
| Environment Support | PC, Mac, Unix, Linux, Sun |
| Compliance | China RoHS, TAA Compliant |
| Warranty | 2-Year Limited Warranty |
| Package Includes | DisplayPort, USB, Audio cables, Power Supply, Guides, Docs |
