Description

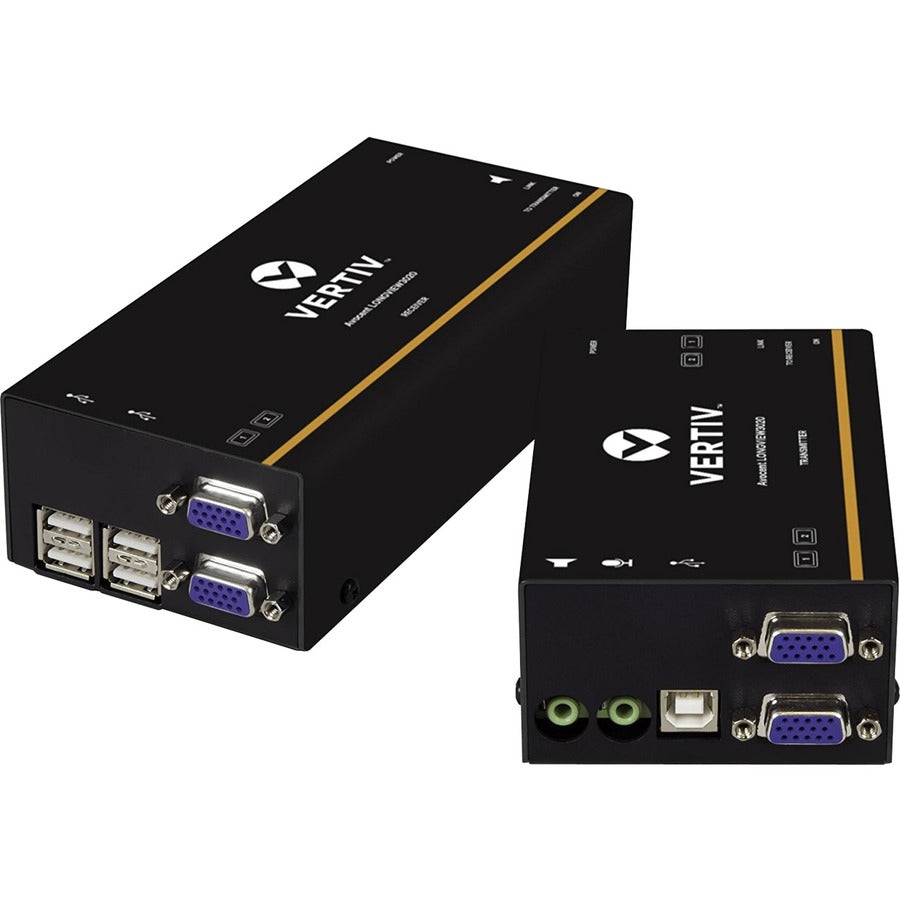

The Vertiv Avocent LV3020P-001 KVM Extender delivers high-performance desktop extension of USB, VGA video, and audio over a single CATx cable up to 1,000 feet (300 meters). Ideal for secure environments or clean desk policies, this solution supports dual VGA displays, crystal-clear 1920x1200 WUXGA video, and audio pass-through with minimal latency. It includes a 4-port USB hub on the receiver for seamless peripheral connectivity, and a local console port on the transmitter for convenient dual-user access. Designed for rack-mount environments with a 2U height, the LV3020 features robust, wired connectivity and is perfect for extending computing resources across large spaces while maintaining performance and control.
| Key Specifications | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv AVOCENT |
| Product Line / Series | LV 3000 |
| Model | LV3020P-001 |
| Product Type | KVM Console/Extender |
| Video Support | Dual VGA, Max Resolution 1920 x 1200 (WUXGA) |
| Audio Support | Yes |

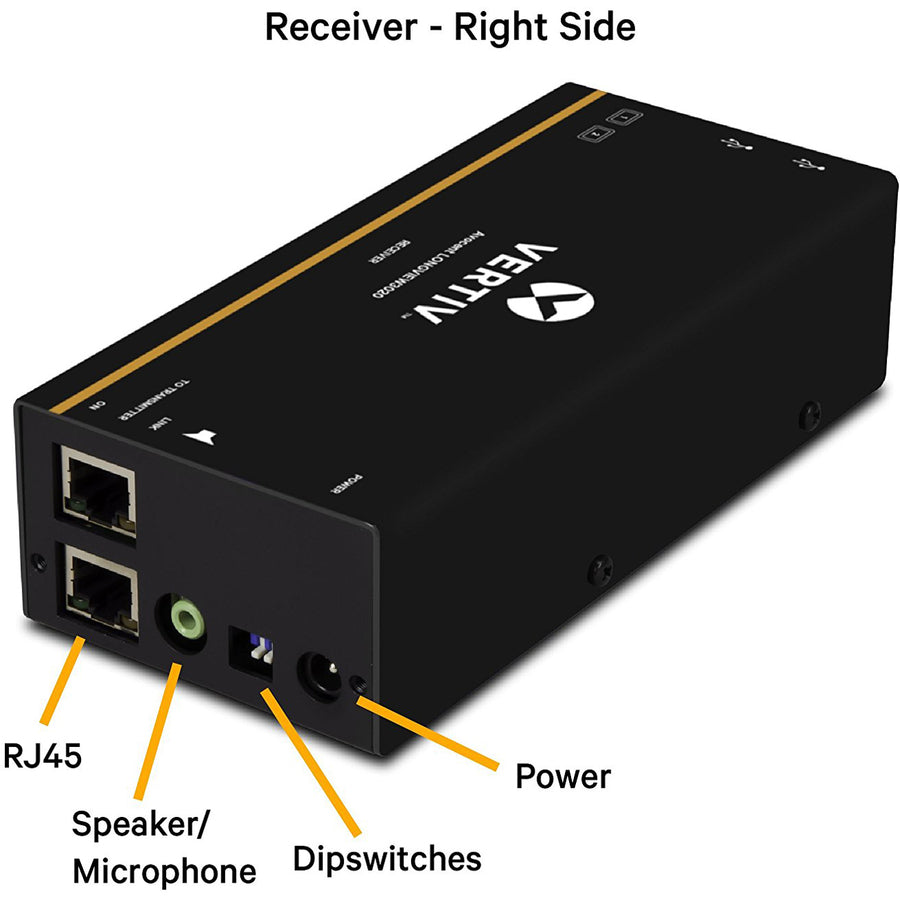

| USB Ports | 4 (Receiver) |
| Connectivity | Wired, 4x RJ-45 Ports |
| Max Distance | 1,000 ft / 300 meters (CATx cable) |

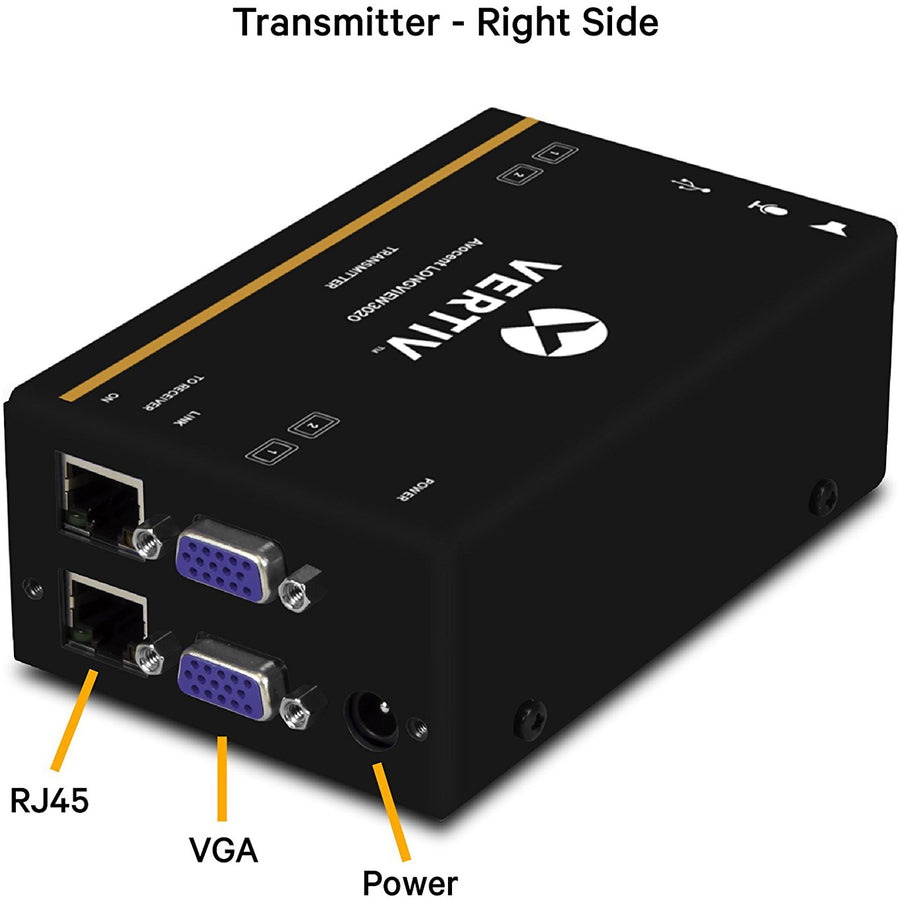

| Local Console Access | Yes (at transmitter) |
| Power Input | 100–240V AC |
| Power Consumption | 12W |
| Form Factor | Rack-Mountable, 2U |

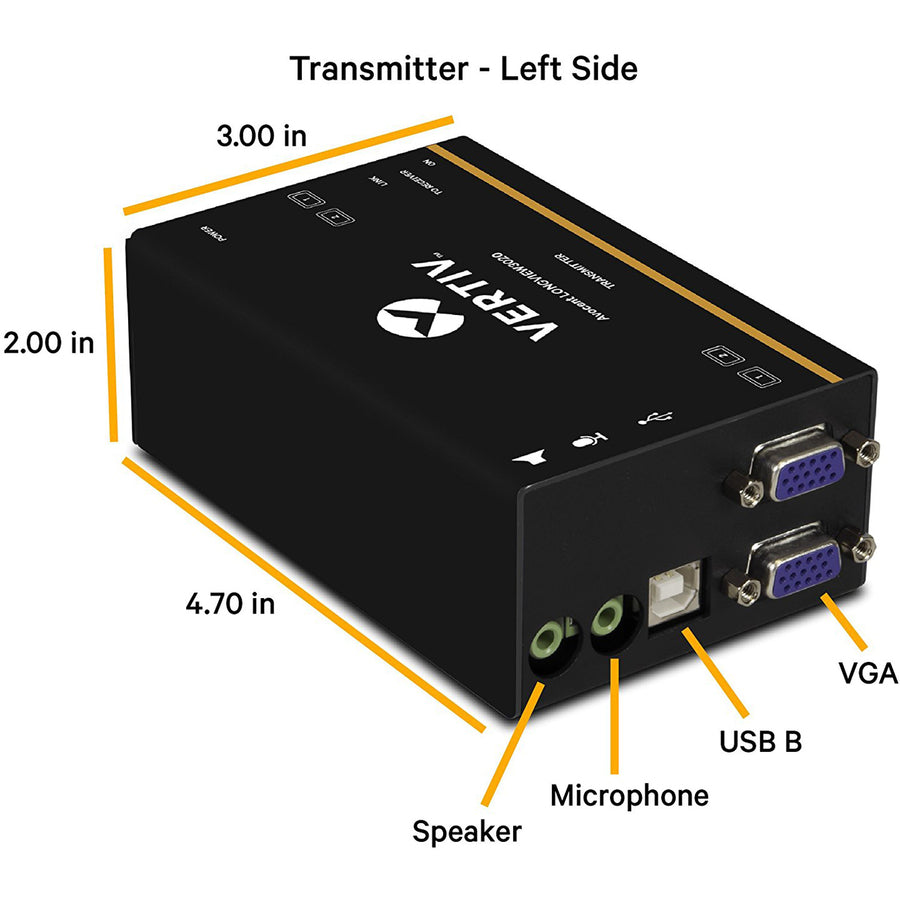

| Transmitter Dimensions (HxWxD) | 2" x 6.4" x 3" |

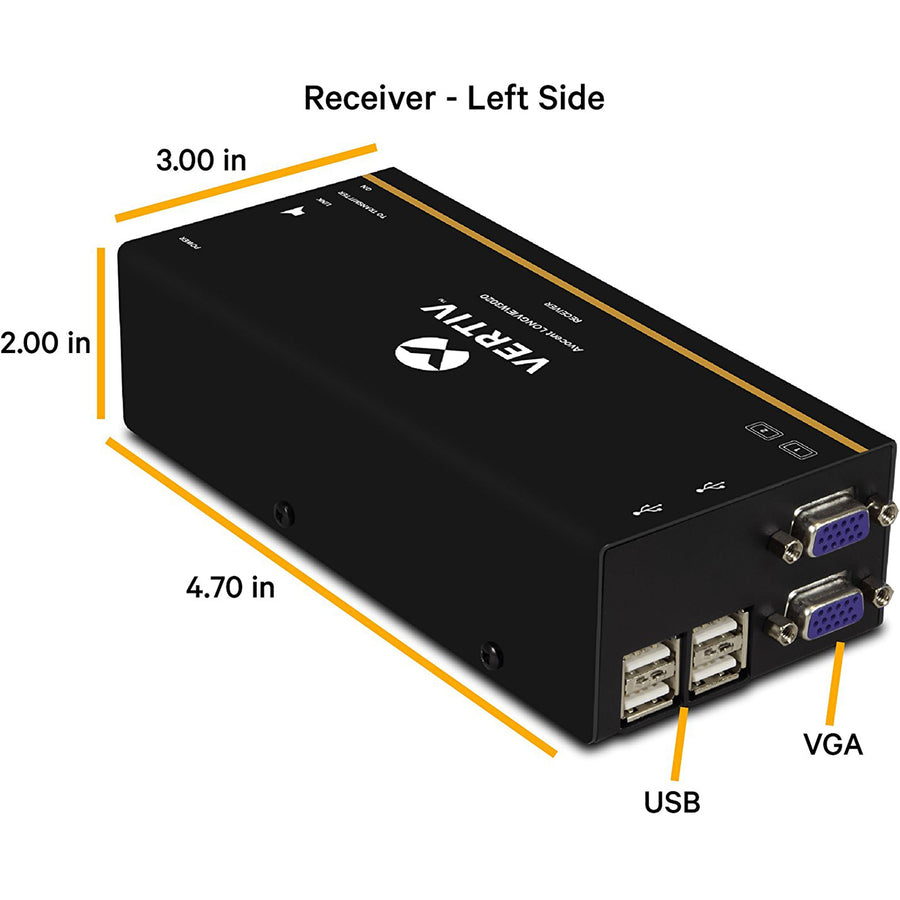

| Receiver Dimensions (HxWxD) | 2" x 6.4" x 3" |
| Shipping Weight | 7 lbs |
| Platform Support | PC |
| Warranty | 2 Years Limited |
| Country of Origin | United Kingdom |
| Product Condition | New and Factory Fresh |
