Description

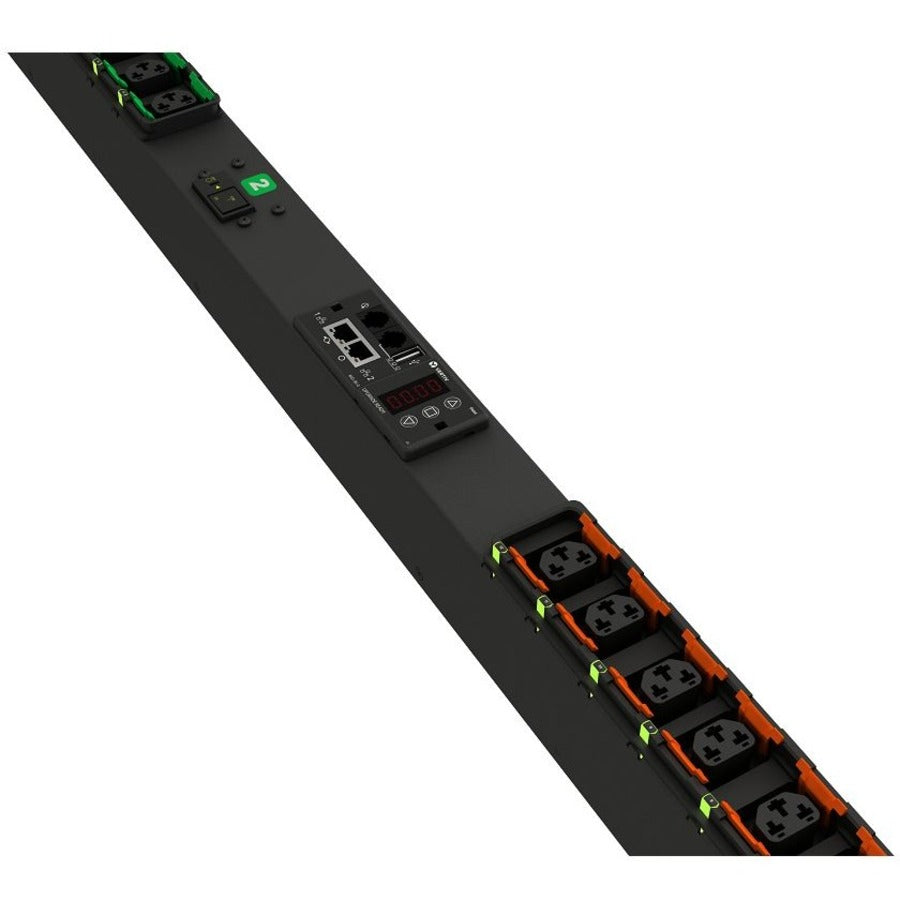

The Vertiv Geist VP7N3001 is a 0U vertical rack PDU with switched outlet-level monitoring, engineered to deliver intelligent power distribution in high-density data environments. Equipped with (24) Combination C13/C19 outlets and a NEMA L6-30P input plug, this unit delivers 30A at 208V for up to 4.9kW power capacity. The combination outlets support both C14 and C20 plug types, offering exceptional flexibility.
Designed with remote switching capability, the VP7N3001 enables administrators to reboot unresponsive equipment or power down unused outlets to prevent overloads. It includes a hot-swappable Interchangeable Monitoring Device (IMD), which displays local data via LED and supports mobile access through VLC and the Vertiv rPDU Scanner App.
Certified to UL standards and TAA-compliant, this unit is ideal for government or enterprise-grade applications. Covered by a 3-year warranty, extendable to 5 years upon registration.
| Specification | Description |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model Number | VP7N3001 (MNU3EGB1-24CF18-3TL6A0A10-S) |
| Form Factor | 0U Vertical, Rack-Mountable |
| Mounting Orientation | Vertical |
| PDU Type | Switched Outlet Level Monitored |
| Input Plug Type | NEMA L6-30P |
| Input Voltage | 208V AC (Range: 200-240V) |
| Input Current | 30A |
| Power Capacity | 4.9kW |
| Outlet Type | 24 x Combination C13/C19 |
| Output Voltage | 208V AC (Range: 200-240V) |
| Remote Management | DHCP, HTTP/HTTPS, SNMPv1/v2c/v3, RADIUS, SSH, Syslog, etc. |
| Hot-swappable IMD | Yes |
| Cord Length | 9.84 ft (3 m) |
| Dimensions (W x D x L) | 2" x 2.6" x 66.3" |
| Weight | 20 lbs |
| Certifications | UL Listed, RoHS Compliant, TAA Compliant |
| Warranty | 3-Year Limited (Extendable to 5 Years with Registration) |
| Product Condition | New and Factory Fresh |
