Description

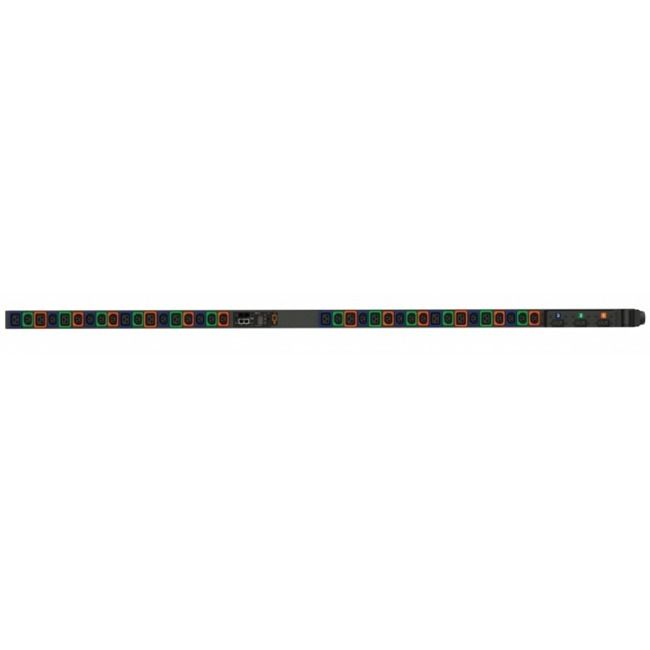

The Vertiv Geist UU30009L is a high-performance, switched rack PDU (rPDU) with a universal input for flexible deployment across global data center environments. Designed to support power inputs ranging from 16A to 60A and 120V to 415V in both single-phase and three-phase configurations, this rPDU delivers up to 11kW through 30 locking C13 and 6 locking C19 receptacles. It features Vertiv’s patented U-Lock system to secure power cords and prevent accidental disconnections, minimizing downtime risks. The Interchangeable Monitoring Device (IMD) supports remote unit-level power and environmental monitoring with upgradeable firmware, ensuring the unit evolves with your infrastructure. Pair it with the appropriate Facility Side Cable (sold separately) for a seamless installation.
| Specification | Details |
|---|---|
| Brand Name | Vertiv Geist |
| Manufacturer Part Number | UU30009L |
| Product Model | DUU3EGW1-36PT67-1S02A9K00-S-A |
| Product Type | Switched Rack PDU (rPDU) |
| Mount Type | Rack-mountable, 0U Vertical |
| Input Current | 16A to 60A |
| Input Voltage Range | 230V AC – 415V AC |
| Power Capacity | 11kW |
| Output Receptacles | 30 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Phase Support | Single & Three Phase |

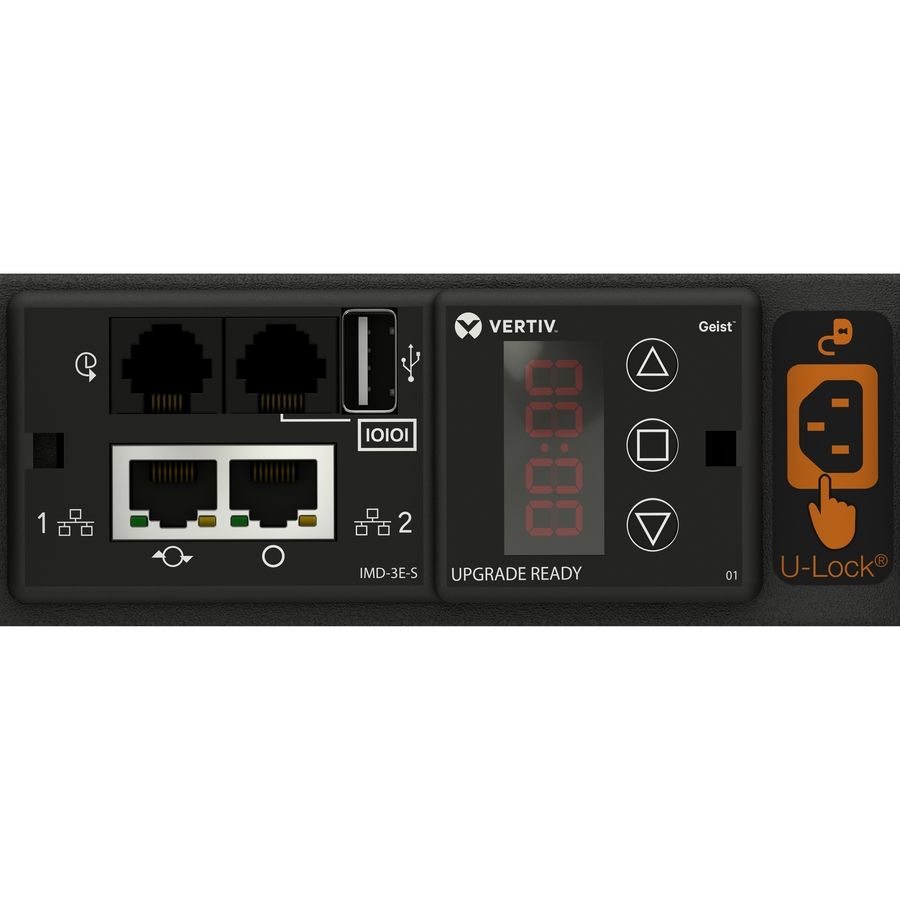

| Monitoring | Interchangeable Monitoring Device (IMD) |
| Remote Management | SNMP, HTTP/HTTPS, SSH, Syslog, LDAP, RADIUS |
| Protocols Supported | DHCP, NTP, TACACS+, IPv4/IPv6, SMTP |
| Environmental Monitoring | Yes (with optional sensors) |
| Energy Star Certified | No |
| TAA Compliant | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited Warranty |
| Dimensions (HxWxD) | 72" x 2" x 2.6" |
| Weight | 27 lbs |
| Product Condition | New and Factory Fresh |
