Description

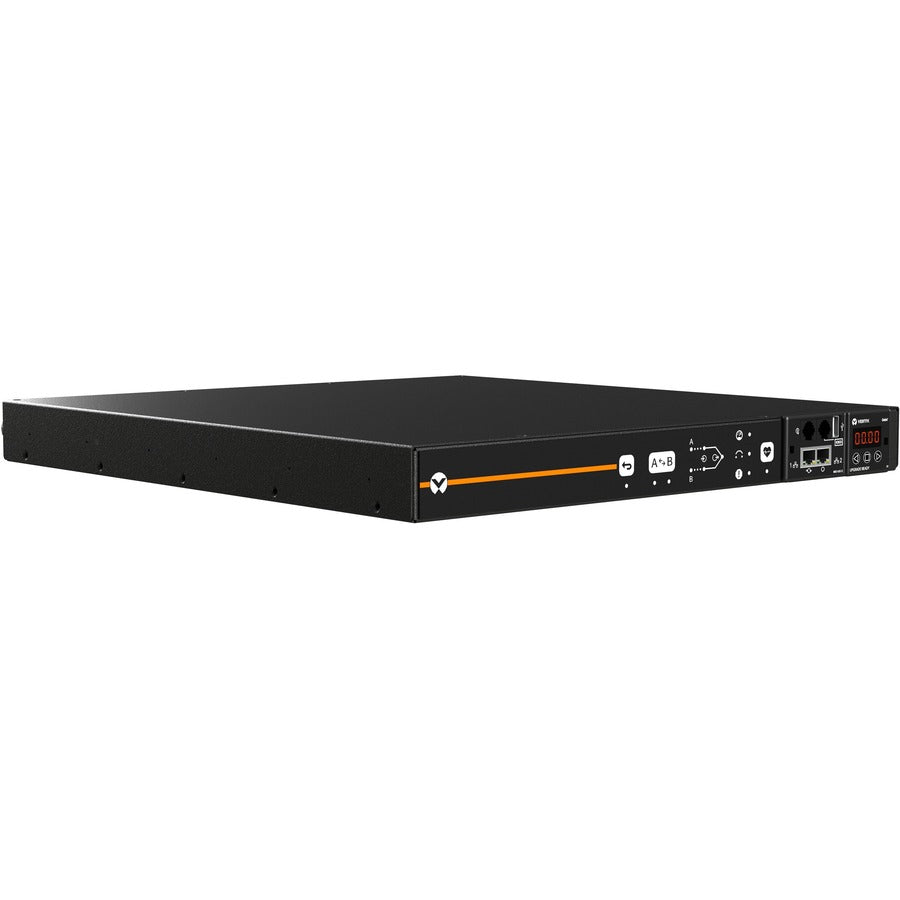

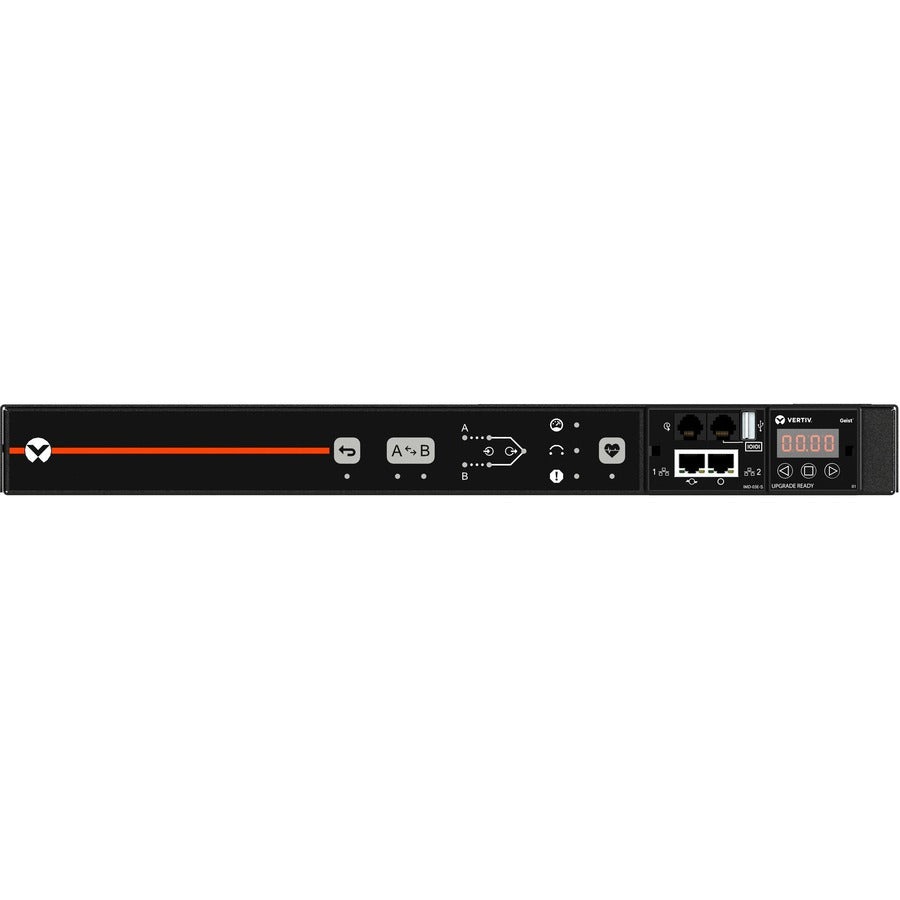

The Vertiv Geist VA4N2100 is a high-reliability rack transfer switch (RTS) combining intelligent power distribution with fast automatic transfer capabilities. This 1U horizontal rack PDU features (10) NEMA 5-20R outlets, dual NEMA 5-20P inputs, and delivers up to 1.9kW of redundant 120V power at 20A. It ensures continuous power to single-corded devices by automatically switching between two input sources within 4–8 milliseconds.
Ideal for mission-critical environments, the VA4N2100 includes an Interchangeable Monitoring Device (IMD) for remote monitoring and is compatible with environmental sensors for enhanced visibility. TAA and RoHS compliant, it comes with a standard 3-year warranty—extendable to 5 years with registration.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv Geist |
| Model | VA4N2100 (AN03E1R5-10S203-2ST5ST5A011-D) |
| Product Type | Switched Auto Transfer Rack PDU |
| Form Factor | 1U Horizontal |
| Input Voltage | 120V (Range: 100–120V AC) |
| Input Current | 20A |
| Power Capacity | 1.9kW |
| Plug Type | 2 x NEMA 5-20P |

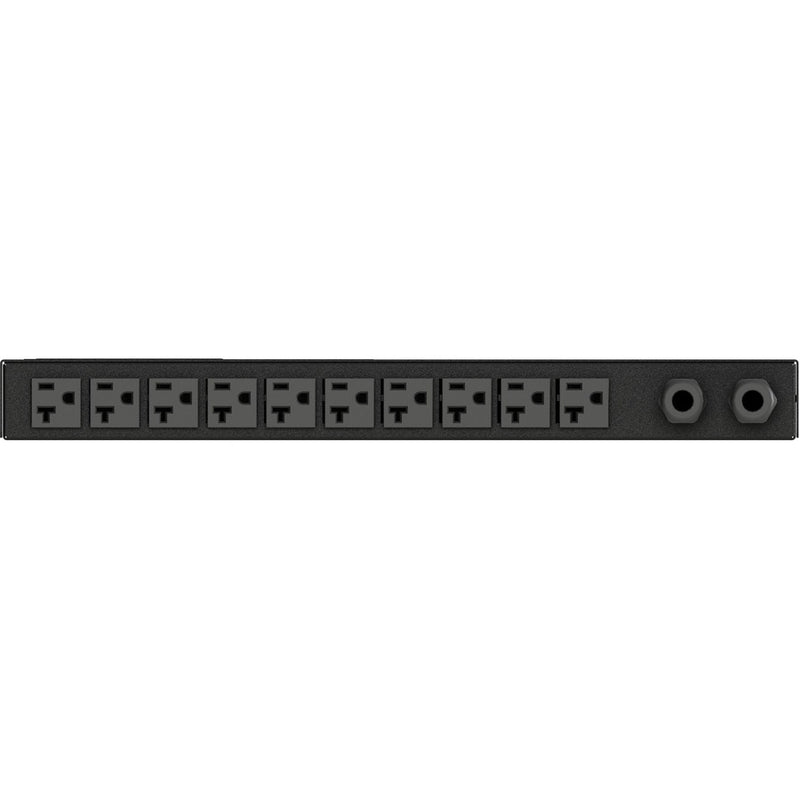

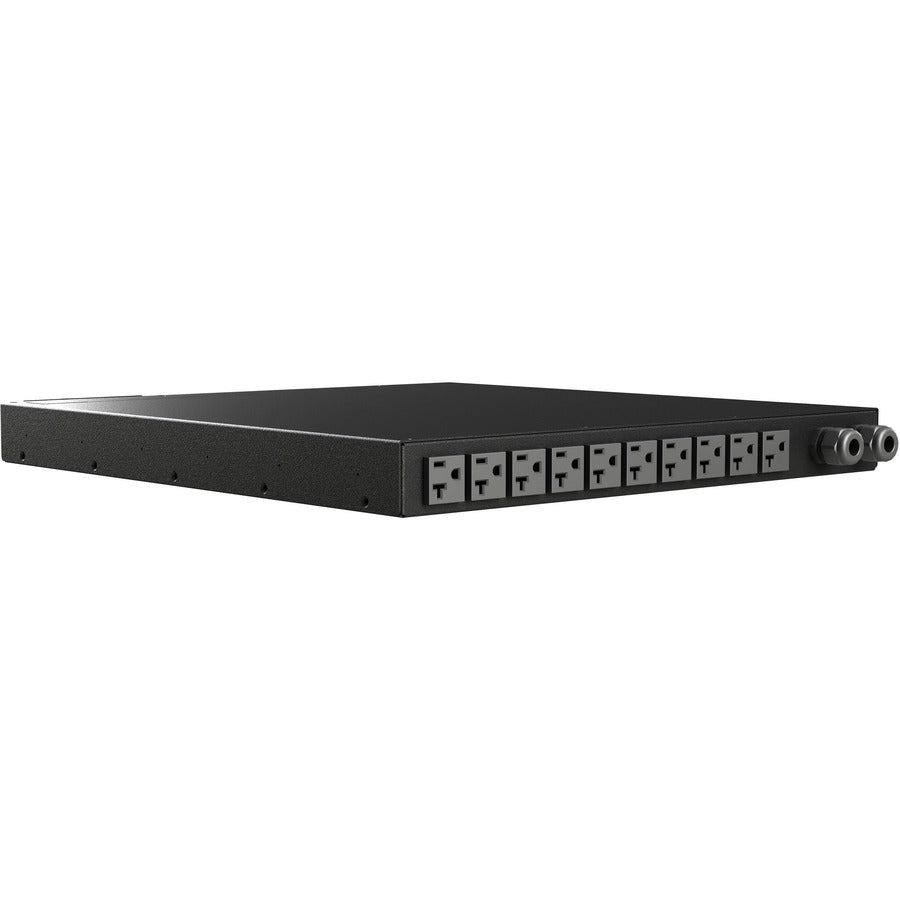

| Receptacles | 10 x NEMA 5-20R |
| Switching Time | 4–8 milliseconds |
| Remote Monitoring | IMD with support for SNMP, HTTP/S, Modbus, Syslog, etc. |
| Remote Outlet Switching | No |
| Interfaces | RJ-45, USB, Serial, RJ-12 |
| Certifications | UL, c-UL Listed 62368 |
| Compliance | TAA, RoHS, China RoHS |
| Dimensions (HxWxD) | 1.7" x 17" x 18" |
| Weight | 19 lbs (Shipping: 17 lbs) |
| Warranty | 3-Year (Extendable to 5-Year) |
| Product Condition | New and Factory Fresh |
