Description

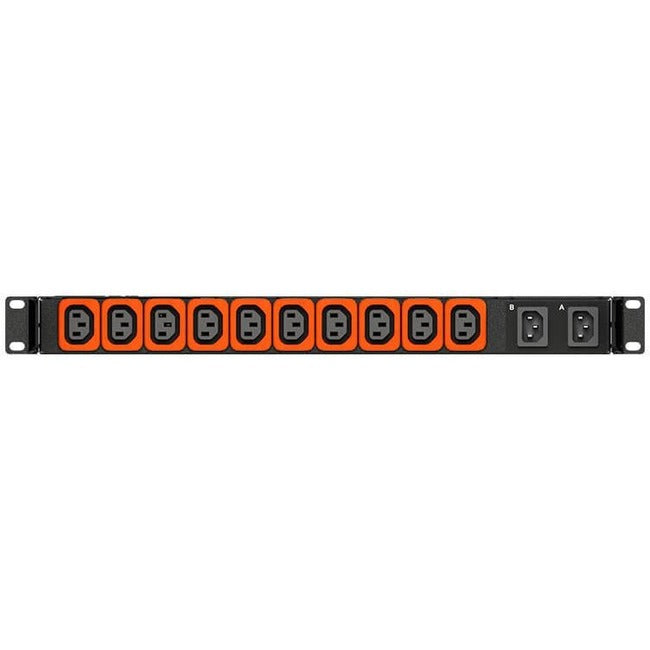

The Vertiv Geist VA4U1100 is a rack-mounted transfer switch PDU (rPDU) engineered for redundancy and reliability. With 10 U-Lock IEC C13 outlets, dual C14 inlets, and a 1U horizontal form factor, it delivers up to 2.4kW of power with seamless auto-switching between power sources in 4–8 milliseconds. Designed to protect single-corded devices from outages, the VA4U1100 ensures operational continuity in edge, data center, and network closet environments.
Its interchangeable monitoring device offers real-time remote monitoring and supports advanced protocols including SNMP, SSH, Modbus TCP/IP, and more. Built for flexibility and compliance, it is TAA, UL, and RoHS certified. The unit ships new and factory fresh with a 5-year limited warranty (3-year standard, extendable upon registration).
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv Geist |
| Part Number | VA4U1100 |
| Product Series / Model | U / AU03E1R0-10L137-1C14C14A900-D |
| Form Factor | Horizontal, 1U |
| PDU Type | Switched Auto Transfer Switch |
| Input Voltage | 120V / 208V / 230V |
| Voltage Range | 100–240V AC |
| Max Power Capacity | 1.4kW / 2.3kW / 2.4kW |
| Input Plug Type | 2 x IEC 60320 C14 |
| Output Receptacles | 10 x Locking IEC 60320 C13 |
| Monitoring | Unit Level (Remote Monitoring Device) |
| Switching Time | 4–8 ms |
| Management Protocols | SNMP (v1/v2c/v3), Modbus TCP/IP, SSH, HTTP/HTTPS, Syslog, etc. |
| Mounting | Rack Mount, Horizontal |
| Certifications | UL, c-UL Listed 62368, RoHS, TAA Compliant |
| Environment Compliance | China RoHS, RoHS |
| Color | Black |
| Dimensions (HxWxD) | 1.7” x 17” x 18” |
| Weight | 15 lbs. |
| Warranty | 3-Year Standard (Extendable to 5 Years Upon Registration) |
| Country of Origin | United States |
