Description

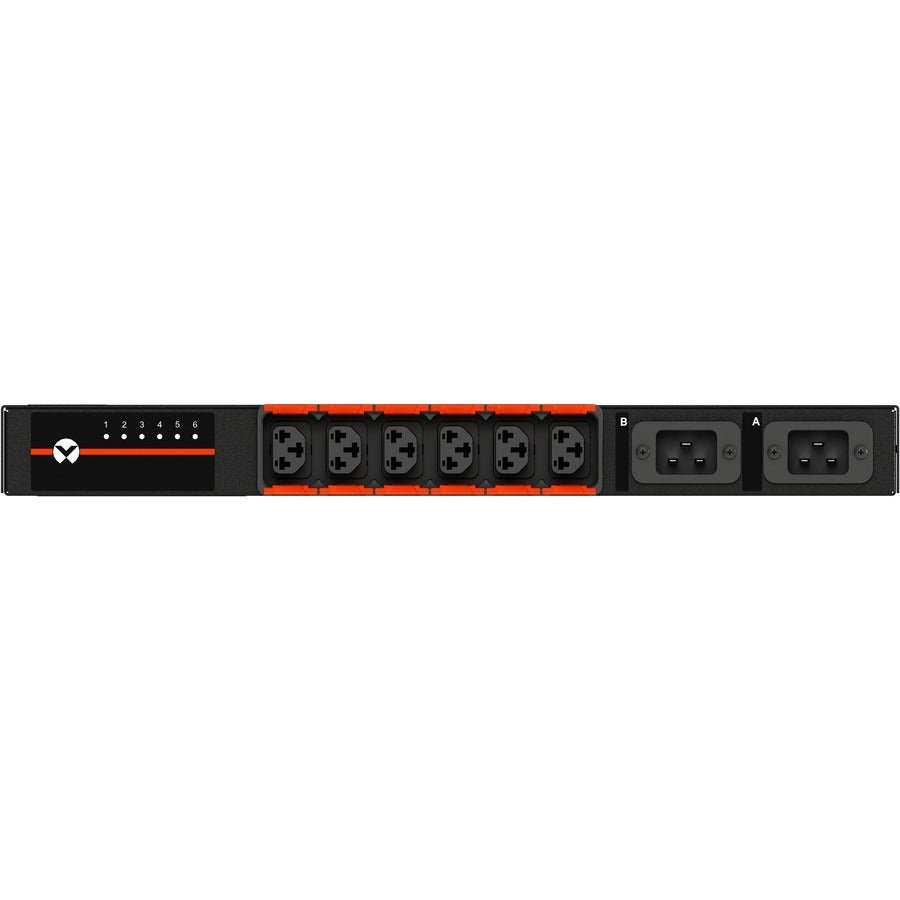

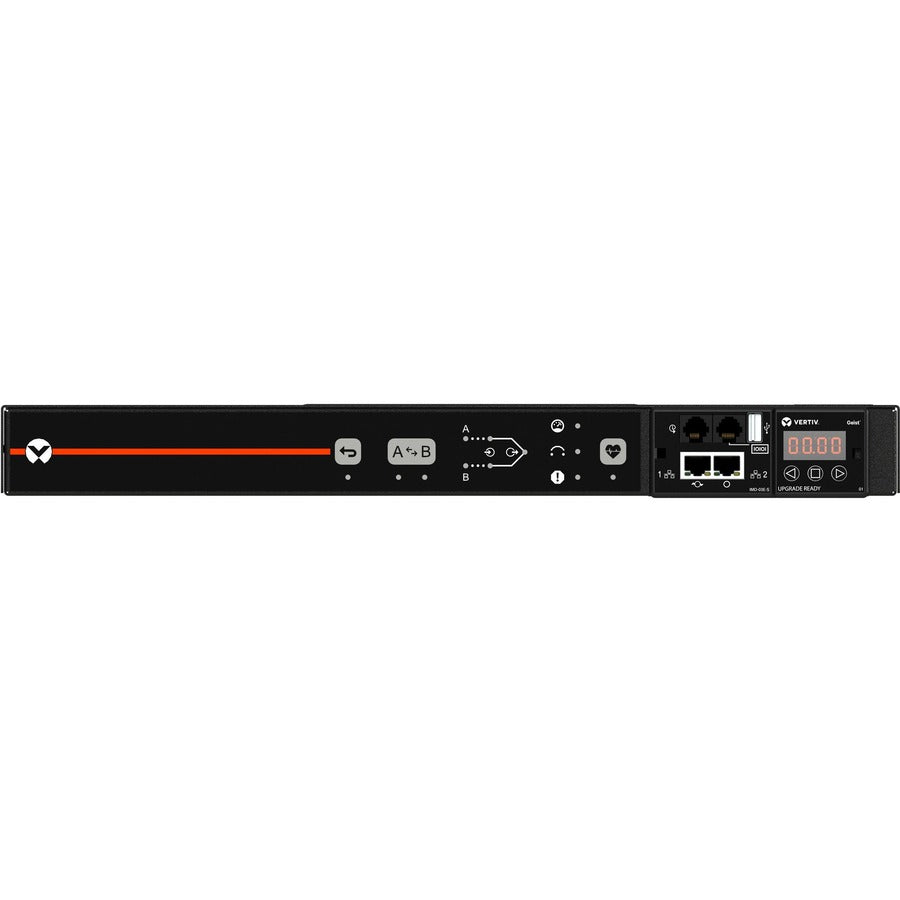

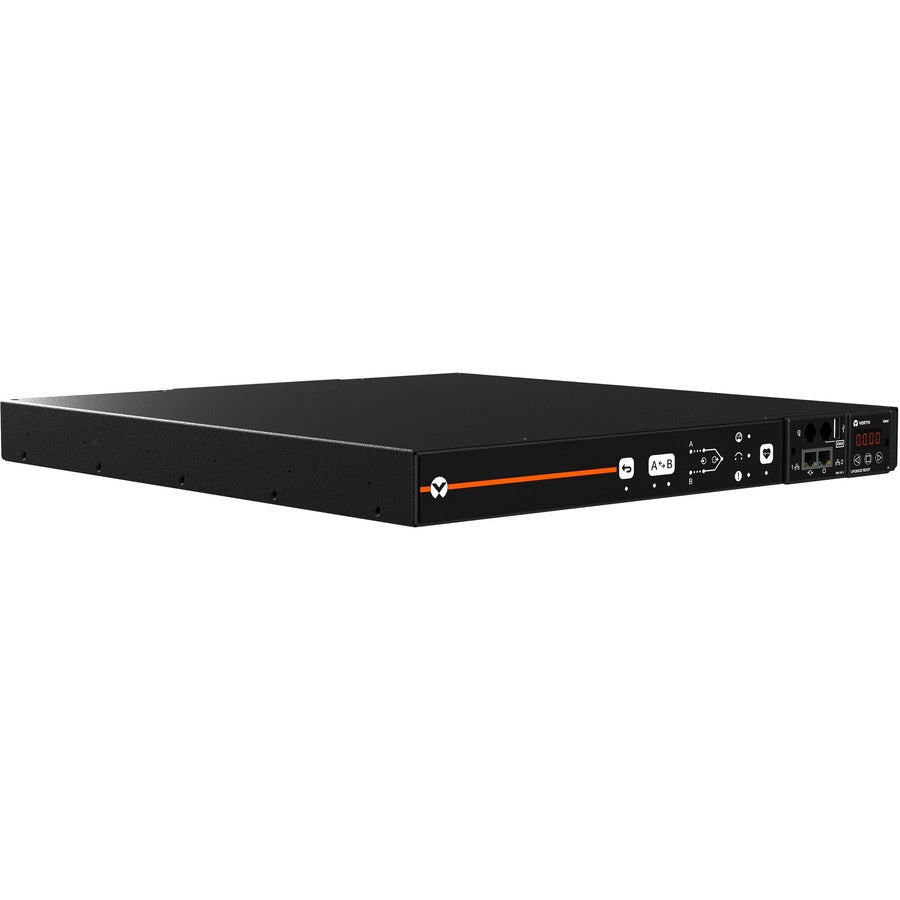

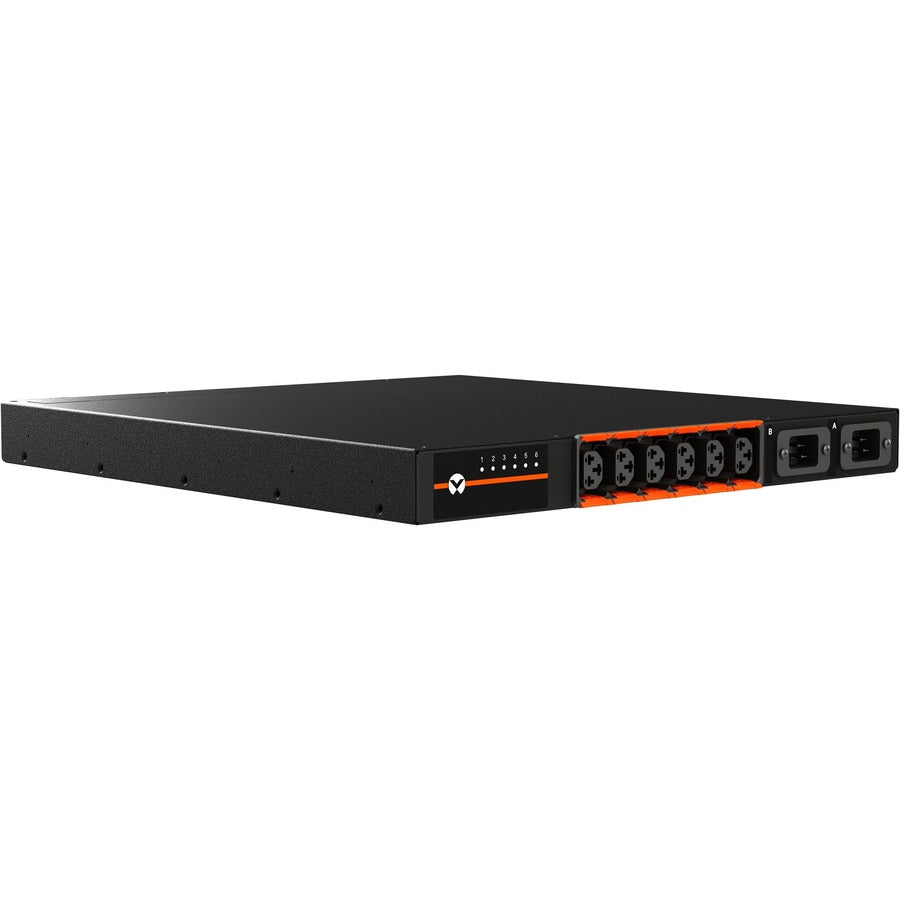

The Vertiv Geist VA7U2100 Rack Transfer Switch (RTS) rPDU ensures critical power redundancy for single-corded devices. With (6) combination C13/C19 outlets and dual C20 inputs, this 1U switched rPDU automatically transfers power between sources within 4–8 milliseconds—eliminating downtime due to power loss. Engineered for flexible IT deployments, it supports 120V/208V/230V inputs and offers robust remote management via the Interchangeable Monitoring Device with Vertiv Intelligence Director. The VA7U2100 is TAA compliant, UL & cUL listed, and comes with a standard 3-year warranty (extendable to 5 years upon registration).
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | VA7U2100 |
| Product Type | Switched Auto Transfer Switch rPDU |
| Product Series | U |
| Product Model | AUU3E1R5-06CF17-2C20C20A900-D |
| Outlet Types | 6 x Combination C13/C19 |
| Input Connector | 2 x IEC 60320 C20 |
| Input Voltage Range | 100V - 240V AC |
| Output Voltage Range | 100V - 240V AC |
| Input Current | 16A/20A |
| Max Power Capacity | 3600W (3.6kW) |
| Phase | Single Phase |
| Mounting Orientation | Horizontal (1U Rackmount) |
| Dimensions (HxWxD) | 1.7" x 17" x 18" |
| Weight | 15 lbs |
| Remote Management | Yes (DHCP, SNMP v1/v2c/v3, HTTP/HTTPS, SSH, etc.) |
| Monitoring | Outlet-level Switched & Interchangeable Monitoring |
| Standards & Compliance | UL Listed, cUL 62368, RoHS, TAA Compliant |
| Environmentally Friendly | Yes (RoHS, China RoHS) |
| Warranty | 5-Year Limited (3 years standard, extendable to 5) |
| Product Condition | New and Factory Fresh |
