Description

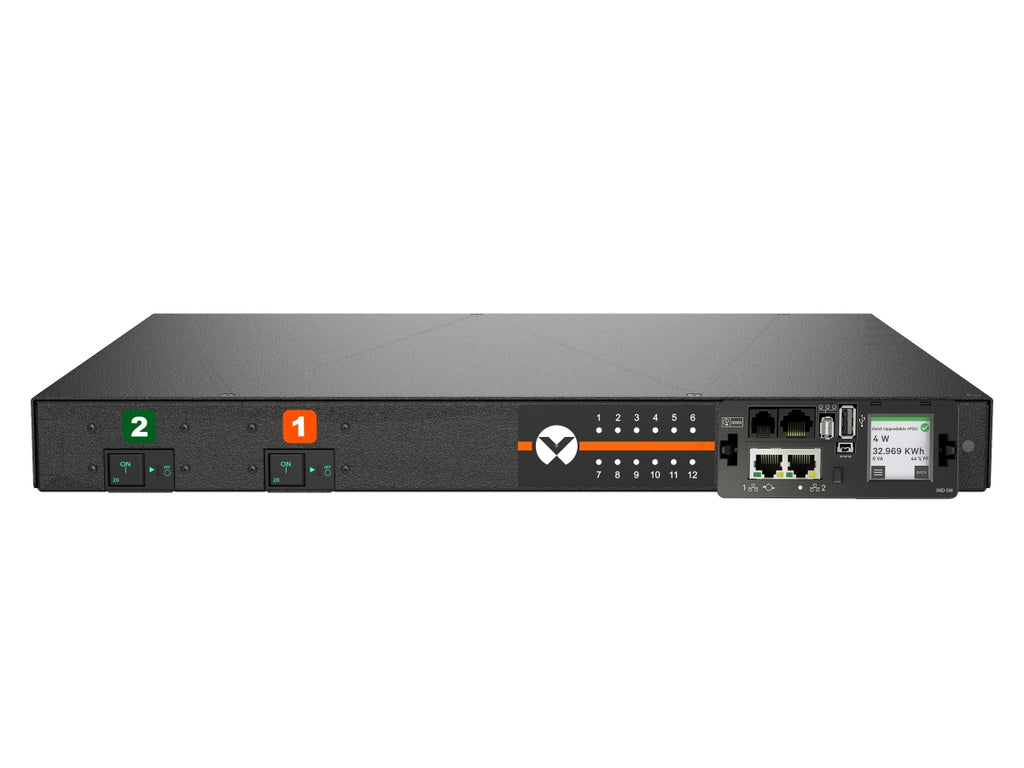

The Vertiv Geist VP5N31A1 is a 30A, 208V switched rack PDU delivering 4.9kW of reliable power distribution with unit-level monitoring and outlet-level switching. Designed for horizontal 19-inch racks, this model features 12 combination C13/C19 outlets, a 10ft L6-30P input cord, and environmental monitoring capabilities. With integrated Ethernet connectivity and robust network protocols, it enables remote power control, monitoring, and data access. Ideal for critical IT infrastructure requiring intelligent, remotely managed power solutions.
| Specification | Details |
|---|---|
| Part Number | VP5N31A1 |
| Power Rating | 30A, 208V, 4.9kW |
| Form Factor | 19" Horizontal Rackmount |

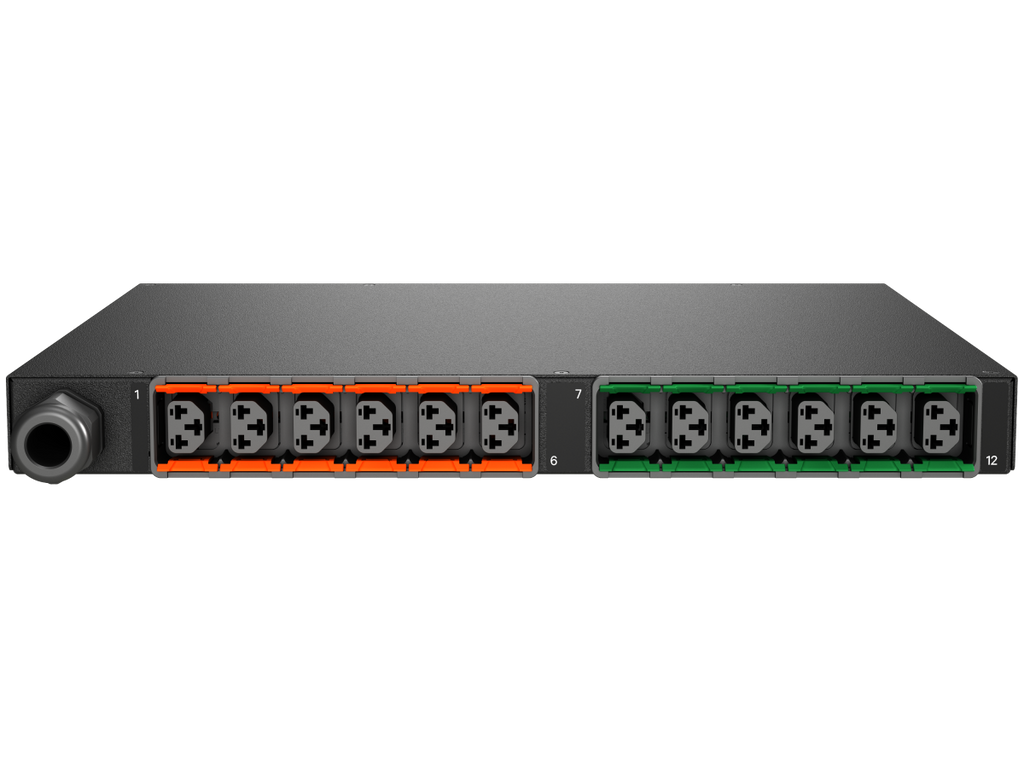

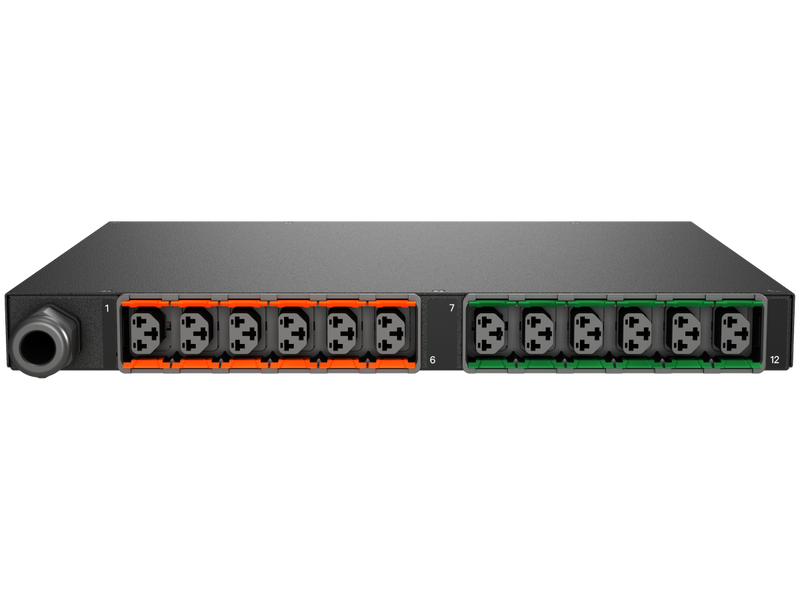

| Outlet Configuration | 12 x Combination C13/C19 |
| Input Plug Type | NEMA L6-30P |
| Cord Length | 10 ft / 3 m |
| Monitoring | Unit-Level, Circuit/Breaker Monitoring |
| Remote Control | Outlet-Level Switching, Sequential Power-Up |

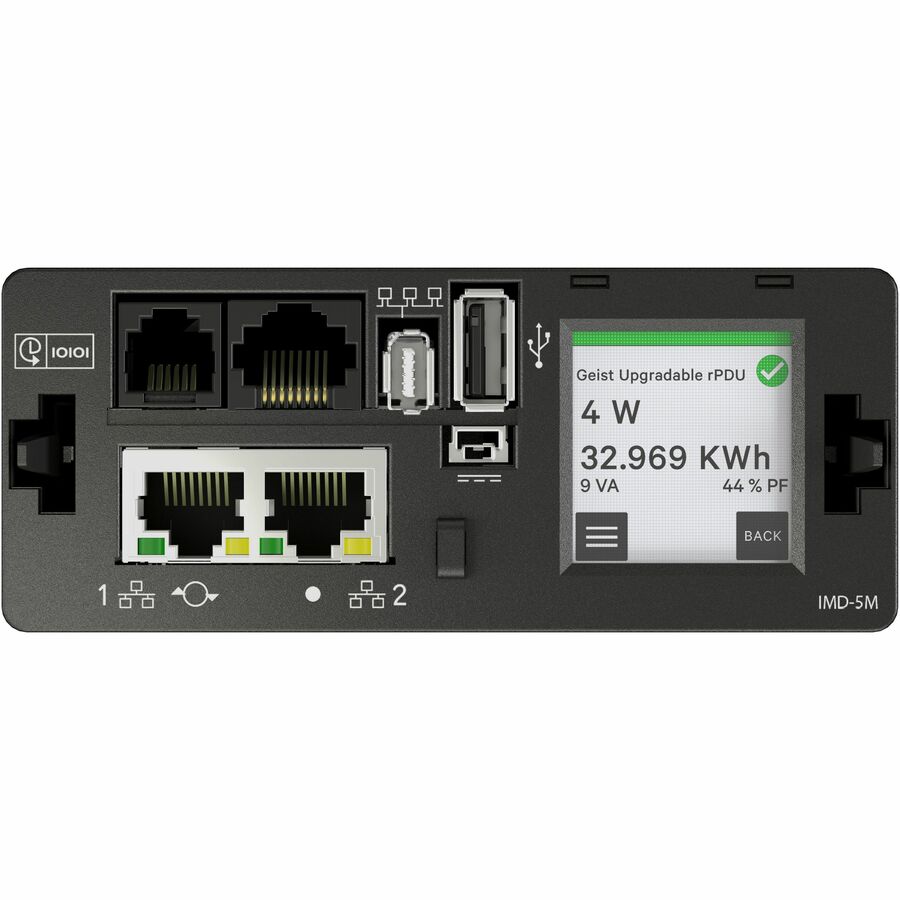

| Display | Auto-orienting LCD touchscreen |
| Environmental Monitoring | Optional via RJ port (supports up to 16 sensors) |
| Network Protocols | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, RADIUS, etc. |
| Connectivity | Dual Gigabit Ethernet, USB, Serial (RS232 via RJ45) |
| Overcurrent Protection | (2) 20A Double Pole Magnetic Breakers |
| Mounting | Adjustable mounting brackets |
| Finish | Black powder coat steel |
| Certifications | UL & c-UL 62368-1, FCC Class A, RoHS |
| Operating Temperature | Max 60°C (140°F) |
| Warranty | 5 years (if registered within 120 days) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 14 lbs (6.35 kg) |
