Description

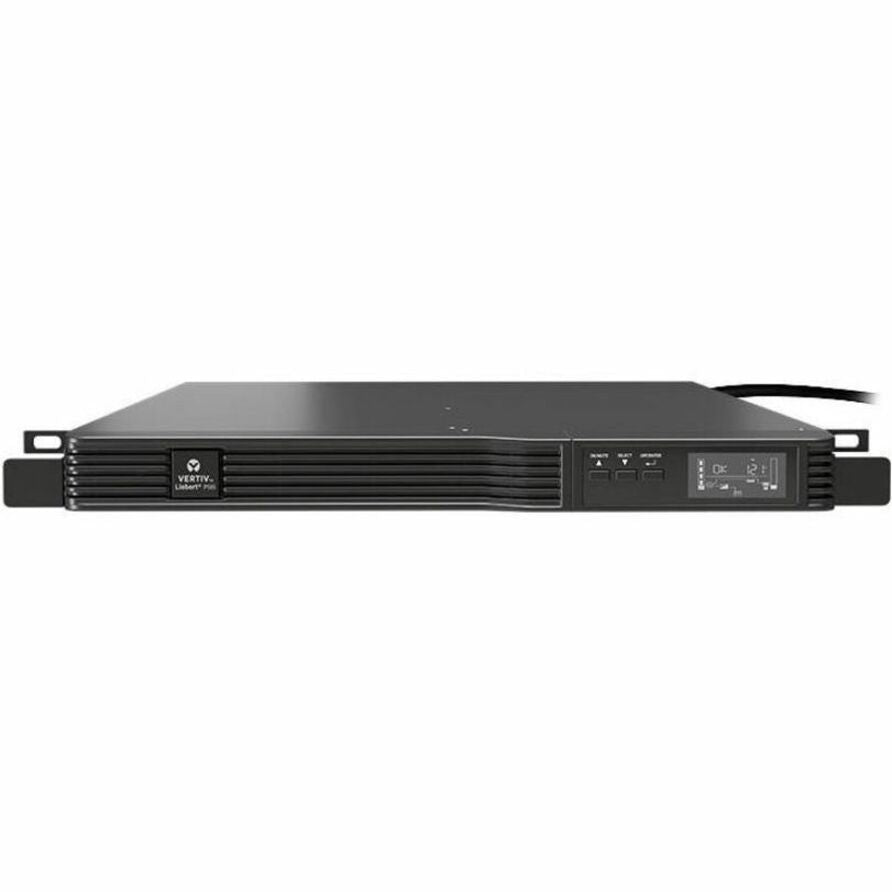

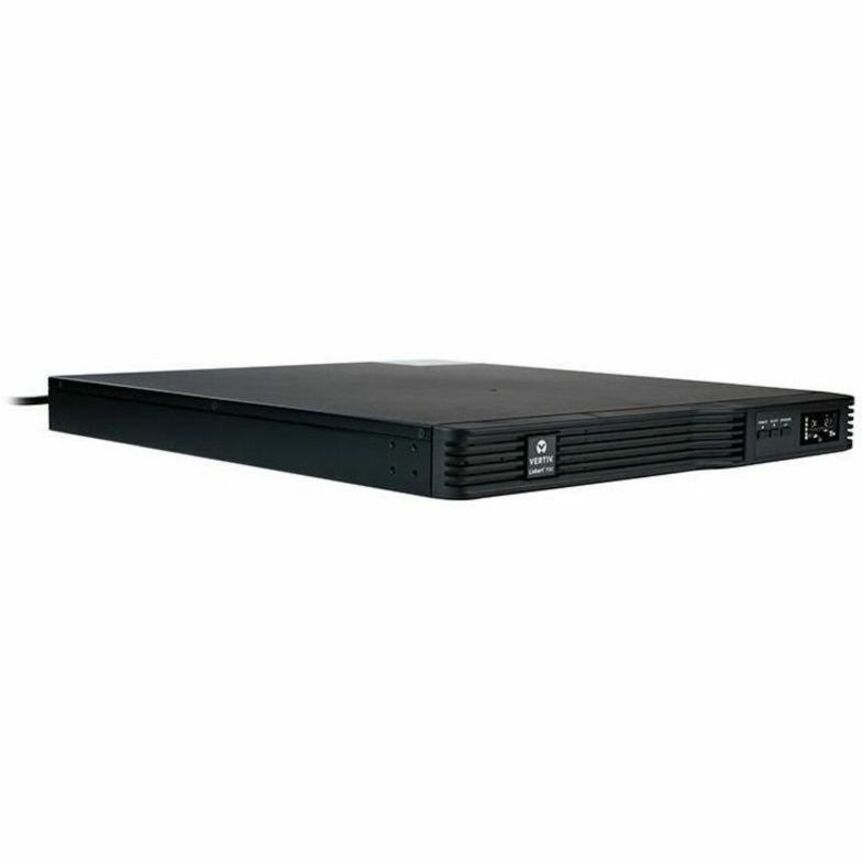

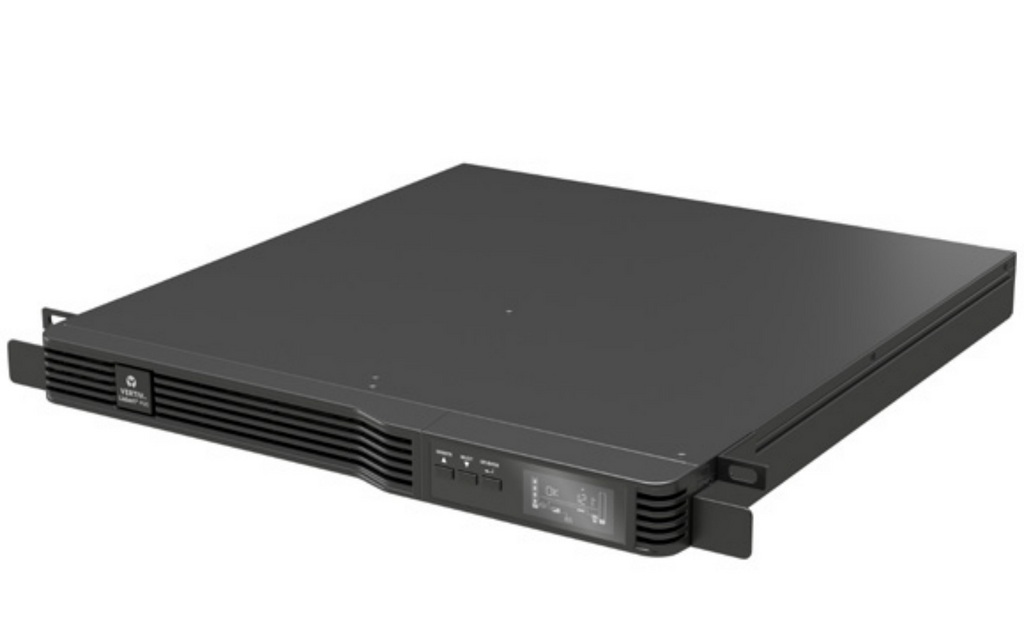

The Vertiv Liebert PSI5-1500RM1201UN is a high-performance 1U rack-mount UPS designed to protect critical IT equipment from power disturbances. With a capacity of 1500VA/1350W and a 0.9 output power factor, it delivers reliable backup with pure sine wave output during outages. This line-interactive UPS includes an SNMP card (IS-UNITY), allowing remote monitoring of up to 50 units via Vertiv Power Insight. The compact form factor makes it ideal for network closets, server rooms, and small data centers. Features include automatic voltage regulation (AVR), hot-swappable batteries, LCD display, and 2 programmable outlets—all backed by a 2-year warranty and a $400,000 connected equipment guarantee.
| Specification | Details |
|---|---|
| Model | PSI5-1500RM1201UN |
| UPS Type | Line-Interactive |
| Form Factor | 1U Rack-Mountable |
| Power Capacity | 1500VA / 1350W |
| Output Power Factor | 0.9 |
| Input Voltage | 120V AC |
| Output Voltage | 100/110/115/120/125V AC |
| Input Voltage Range | 75–146V AC |
| Output Waveform | Pure Sine Wave (on battery) |
| Surge Protection Rating | 1372 Joules |
| Transfer Time | 13ms |

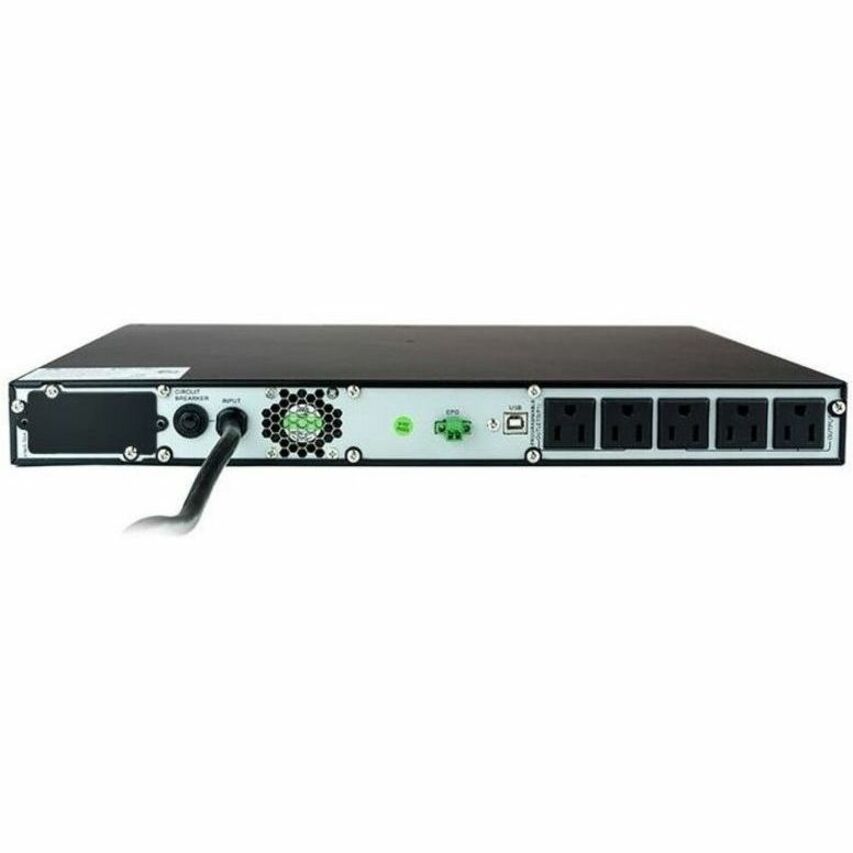

| Receptacles | 5 x NEMA 5-15R (2 programmable) |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot Swappable |
| Runtime (Full Load / Half Load) | 5 min / 14 min |
| Recharge Time | 6 hours (typical) |
| Battery Capacity | 6x 6V, 9000 mAh |

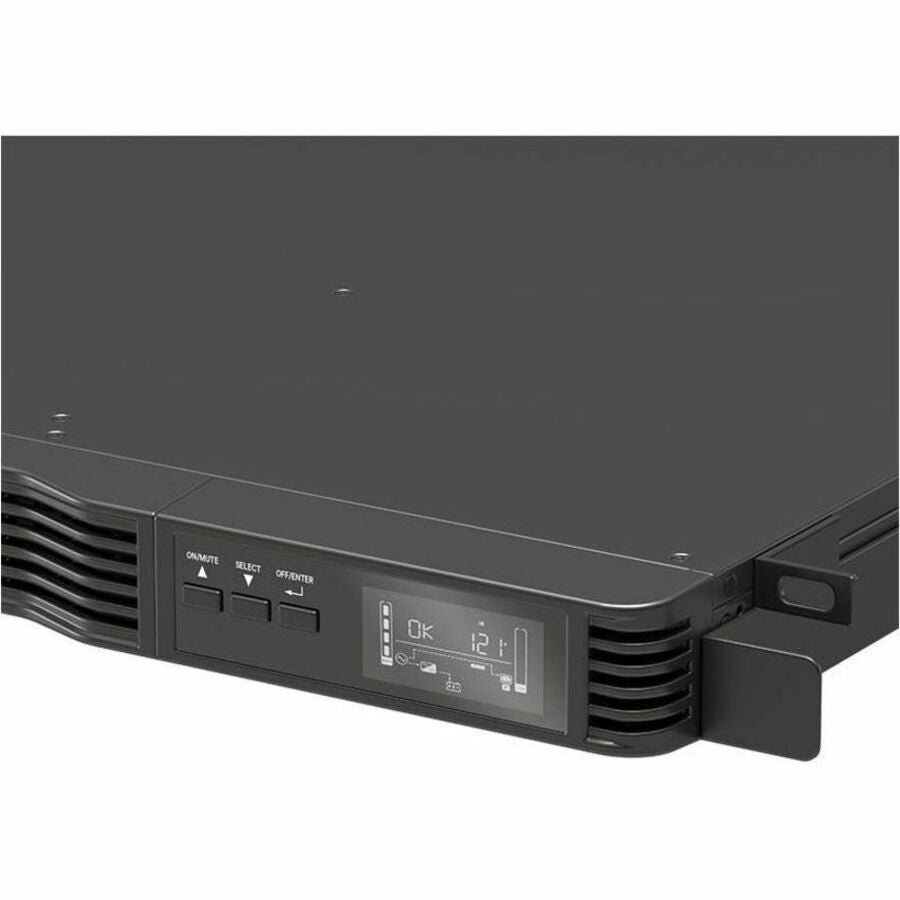

| Display | LCD |

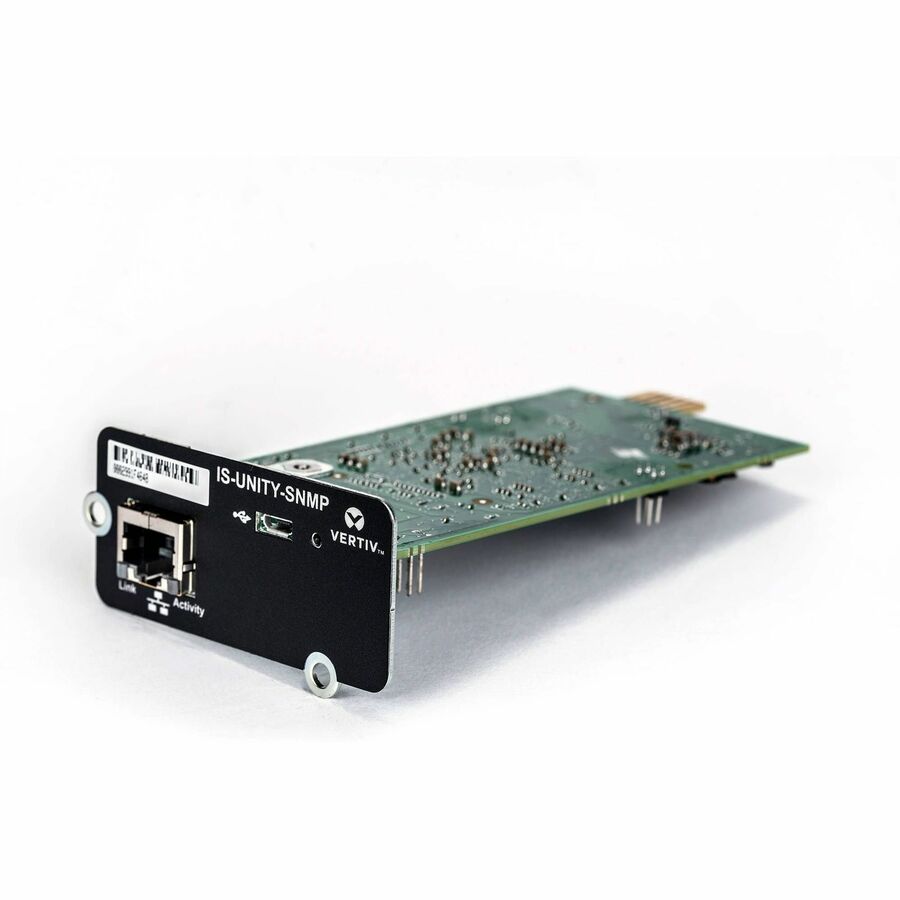

| Communication | SNMP (IS-UNITY), USB, EPO |
| Network Management | Power Insight Application (free) |
| Safety Standards | UL1778, FCC Class A, ANSI C62.41, ISTA 1A |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 1.7" x 17.2" x 22.4" |
| Weight | 45.6 lbs |
| Color | Black |
| Warranty | 2-Year Full (Including Battery) |
| Connected Equipment Guarantee | $400,000 |
