Description

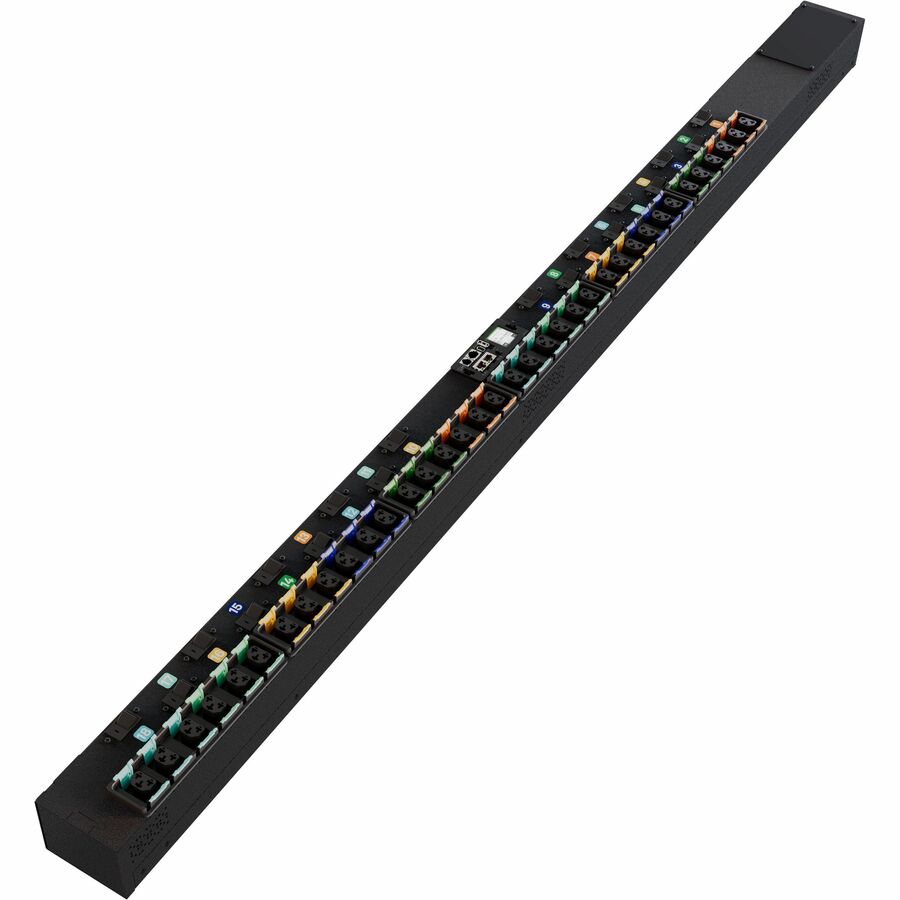

The Vertiv PowerIT VP7UA0A0 Switched Outlet Level Monitored High-Density rPDU delivers advanced power distribution, monitoring, and control for modern data center and enterprise rack environments. Designed as a 0U vertical, three-phase solution, this rPDU supports up to 80A at 240/415V WYE and provides a high power capacity of 57.6kW through a hardwired input connection.
Equipped with 36 combination C13/C19 outlets, the VP7UA0A0 offers flexible connectivity by allowing both C14 and C20 plugs to be used interchangeably within the same receptacle. Outlet-level monitoring and remote switching enable precise power visibility, controlled load management, and the ability to remotely reboot unresponsive IT equipmentāhelping reduce downtime and prevent accidental overloads.
The unit features a hot-swappable Interchangeable Monitoring Device (IMD-5M) with dual gigabit Ethernet ports for fault-tolerant daisy chaining or IP aggregation, along with support for serial and environmental monitoring. High-retention, color-coded receptacles are P-Lock cable compatible, ensuring secure connections in high-density racks. The VP7UA0A0 also integrates with Vertiv Intelligence Director, allowing streamlined management of up to 50 devices on a single IP address. A three-year warranty is included, extendable to five years with timely registration.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Model / SKU | VP7UA0A0 |
| Product Type | Switched Outlet Level Monitored rPDU |
| Form Factor | 0U Vertical |
| Phase | Three Phase |
| Input Current | 80A |
| Input Voltage | 240/415V WYE |
| Power Capacity | 57.6 kW |
| Input Connection | Hardwired |
| Outlet Count | 36 |
| Outlet Type | Combination C13/C19 |
| Plug Compatibility | C14 and C20 |
| Outlet Monitoring | Yes |
| Outlet Switching | Yes |
| Remote Reboot Capability | Yes |
| Monitoring Device | Hot-swappable IMD-5M |
| Network Connectivity | Dual Gigabit Ethernet |
| Environmental Monitoring | Supported (via IMD) |
| Cable Retention | High-retention, P-Lock compatible |
| Management Platform | Vertiv Intelligence Director |
| Warranty | 3 years (extendable to 5 years with registration) |
