Description

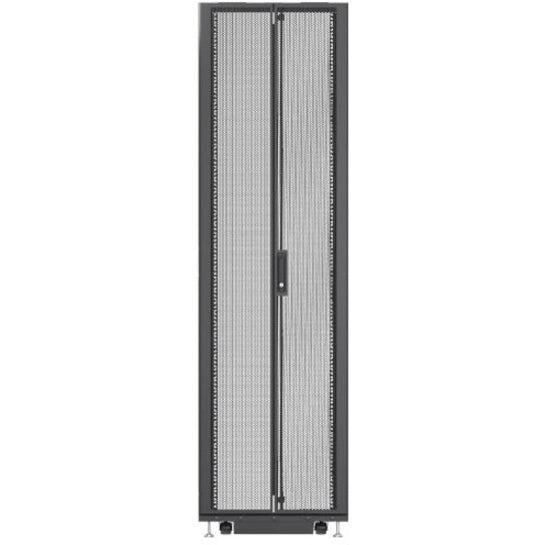

The Vertiv VR3305 is a premium 45U server rack enclosure engineered to meet the high-density demands of modern IT environments. With an extended depth of 1200mm, it offers approximately 2.5 inches more usable space than typical enclosures of similar dimensions, making it ideal for large servers, UPS systems, PDUs, and other critical hardware.
Built for flexibility, the VR3305 comes pre-assembled with 77% perforated front and rear doors, tool-less cable management options, casters, and two sets of EIA 19-inch mounting rails. This ensures ease of deployment and optimal airflow. The cabinet also features a robust load capacity — up to 3,000 lbs static and 2,250 lbs dynamic — perfect for any enterprise data center setup.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | VR3305 |
| Rack Units (RU) | 45U |
| Rack Width | 600mm / 23.6 in |
| Rack Depth | 1200mm / 47.2 in (External), 1162.5mm usable |
| Rack Height | 2131.3mm / 83.9 in |
| Weight (Shipping) | 340 lbs |
| Static Load Capacity | 3,000 lbs |
| Dynamic Load Capacity | 2,250 lbs |
| Form Factor | Floor Standing |
| Material | Steel |
| Color | Black |

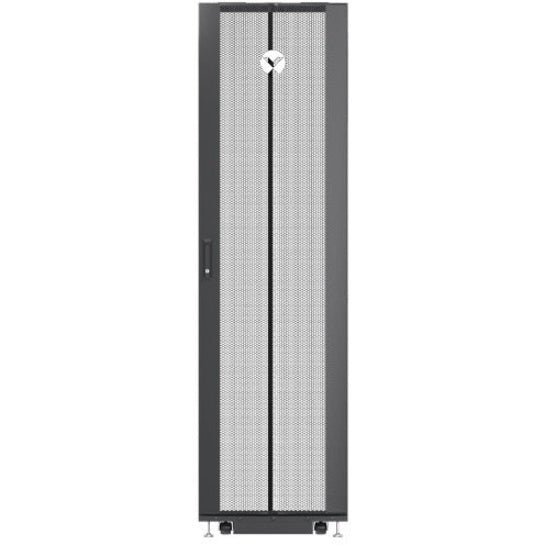

| Doors | 77% perforated front and rear |

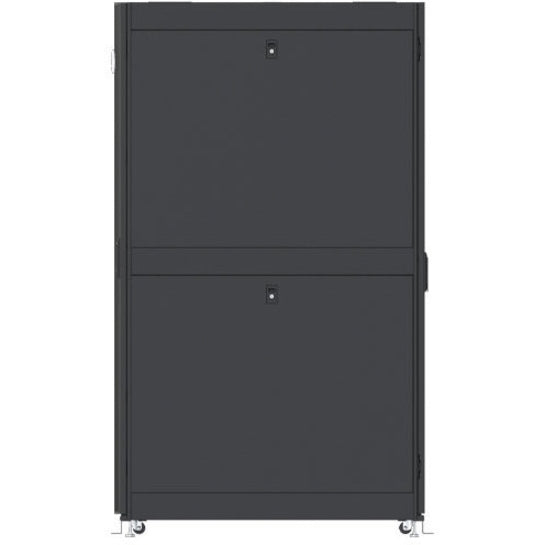

| Side Panels | Split side panels with slam latches |
| Casters | Included |
| Tool-less PDU/Cable Management | Yes (zero U bracket support) |
| Rails | 2 sets of 19” EIA rails |
| Assembly Required | No |
| Warranty | 5-Year Limited |
| Country of Origin | Thailand |
