Description

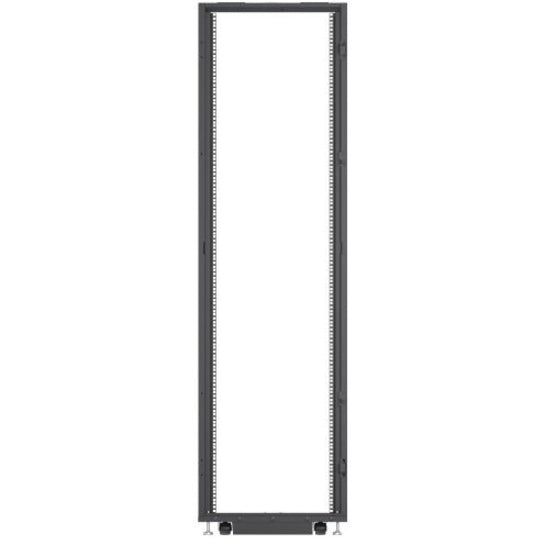

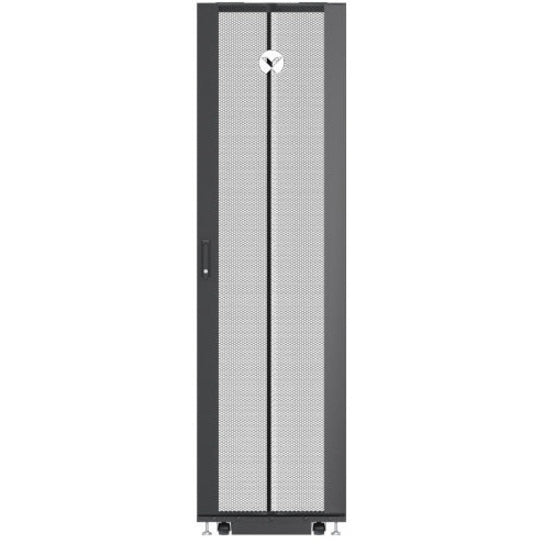

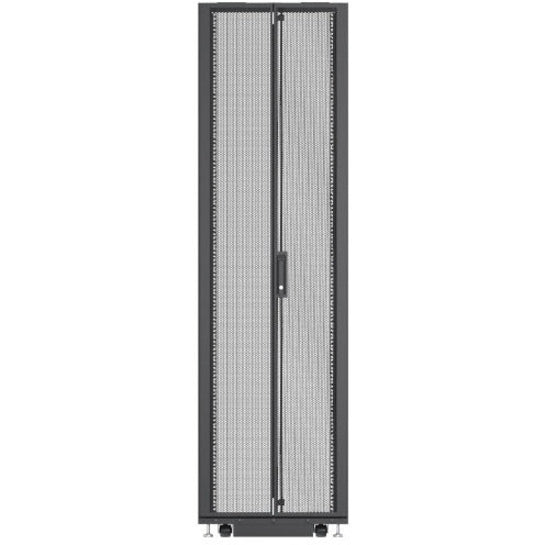

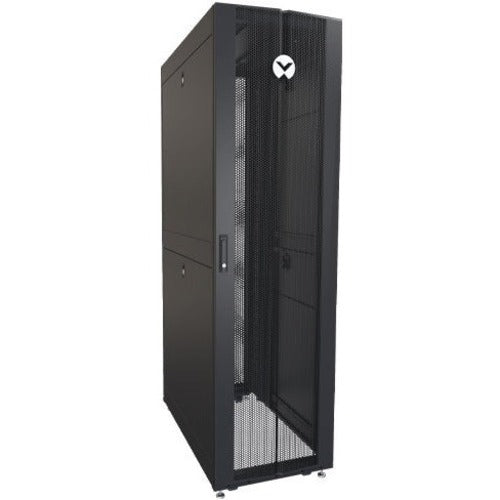

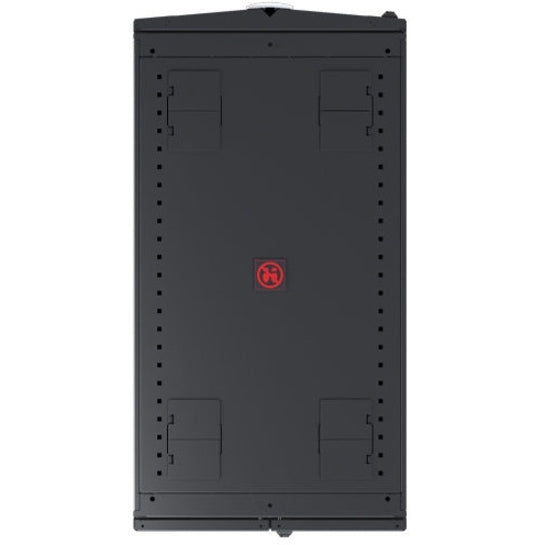

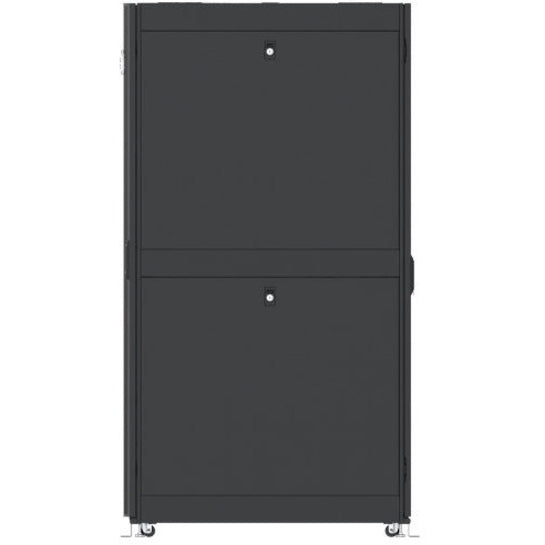

The Vertiv VR3105 is a 45U floor-standing server rack enclosure engineered for high-density deployments and enterprise IT environments. Measuring 2131.3mm (H) x 600mm (W) x 1062.5mm (D), this robust rack offers enhanced usable depth and tool-less accessory integration to streamline your data center setup.
Built from heavy-duty steel and supporting up to 3,000 lbs static and 2,250 lbs dynamic, it accommodates a full range of IT gear—from servers and storage to PDUs, UPS systems, and KVM switches. The rack features 77% perforated front and rear doors for optimal airflow, split locking side panels for single-person installation, casters, and levelers for mobility, and a 5-year limited warranty.
Ideal for: server rooms, data centers, edge IT deployments, and networking closets.
| Specification | Details |
|---|---|
| Brand | Vertiv |
| Product Line | VR Series |
| Model Number | VR3105 |
| Product Type | Floor-Standing Rack Cabinet |
| Rack Units (RU) | 45U |
| Dimensions (HxWxD) | 2131.3mm x 600mm x 1062.5mm |
| Rack Width | 19-inch EIA Standard |
| Static Load Capacity | 3,000 lbs (1,360 kg) |
| Dynamic Load Capacity | 2,250 lbs (1,020 kg) |
| Perforated Doors | 77% airflow front and rear |
| Side Panels | Split, lockable with slam latch |
| Casters/Levelers | Included |
| Material | Steel |
| Color | Black |
| Cable Management | Tool-less Zero-U with PDU brackets |
| Mounting Rails | 2 sets of 19" EIA rails included |
| Weight | Approx. 315 lbs (Shipping) |
| Assembly Required | No |
| Country of Origin | Thailand |
| Warranty | 5-Year Limited Warranty |
| Package Contents | Rack Enclosure, 50x M6 Cage Nuts & Screws |
