Description
The Vertiv VRC200KIT is a high-efficiency split cooling system engineered for IT environments with limited space and challenging thermal demands. Delivering up to 3.5kW (12,000 BTU) of cooling capacity, this solution is ideal for small server rooms, network closets, and edge deployments where traditional cooling systems fall short.

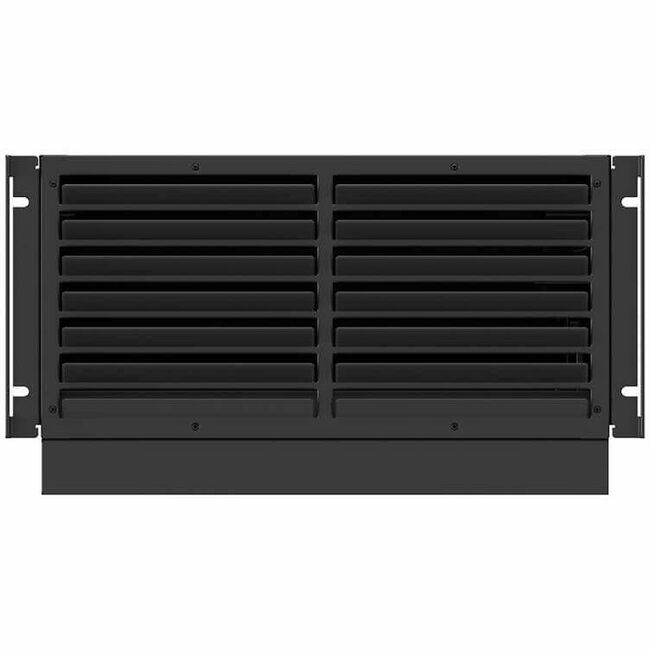

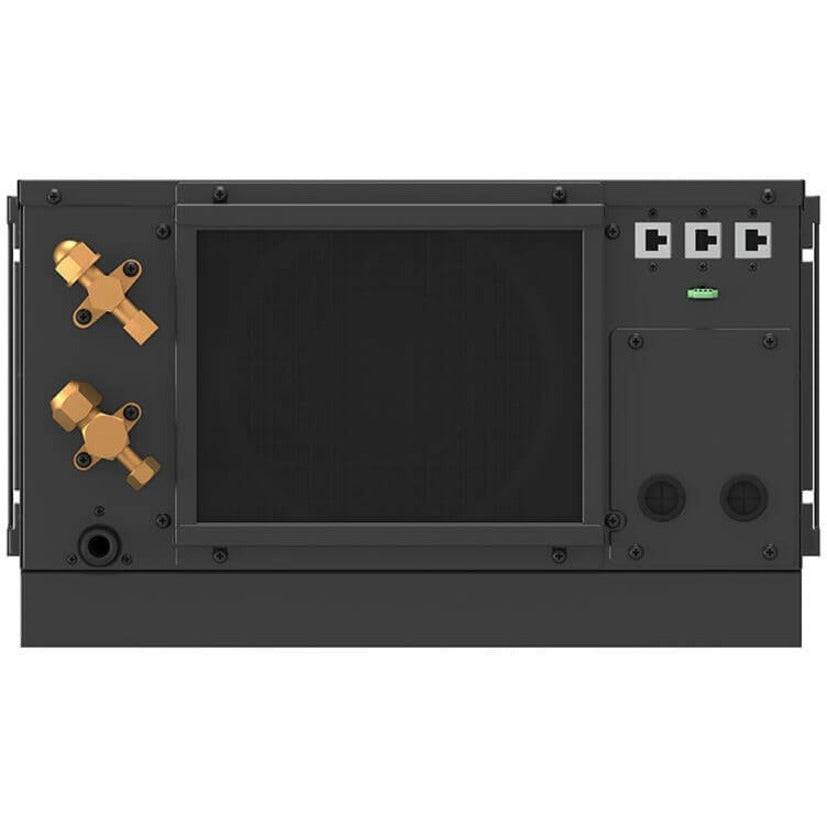

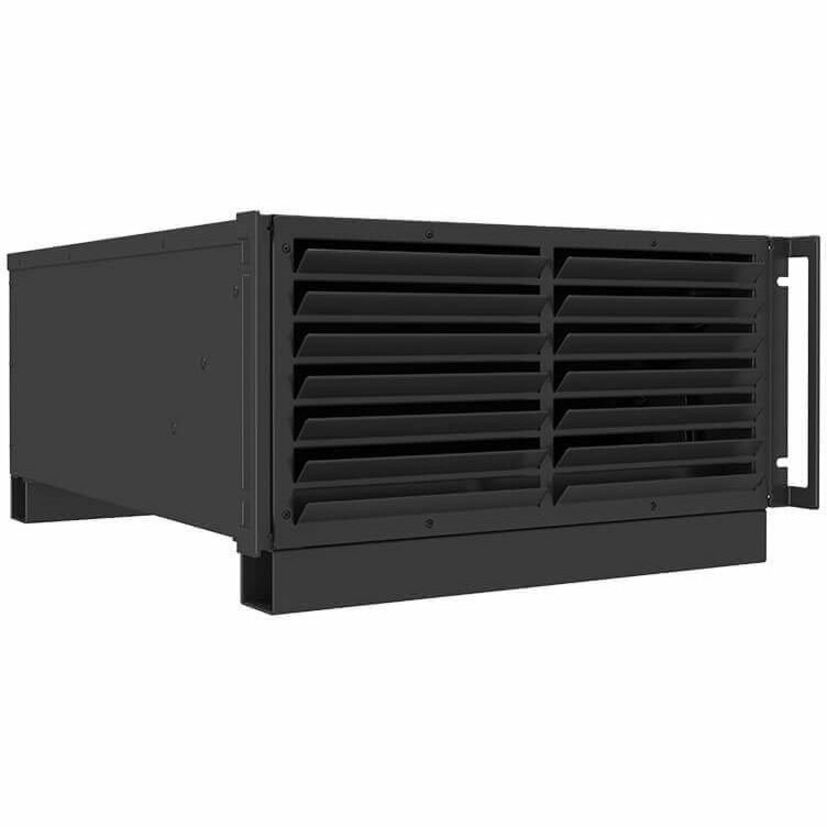

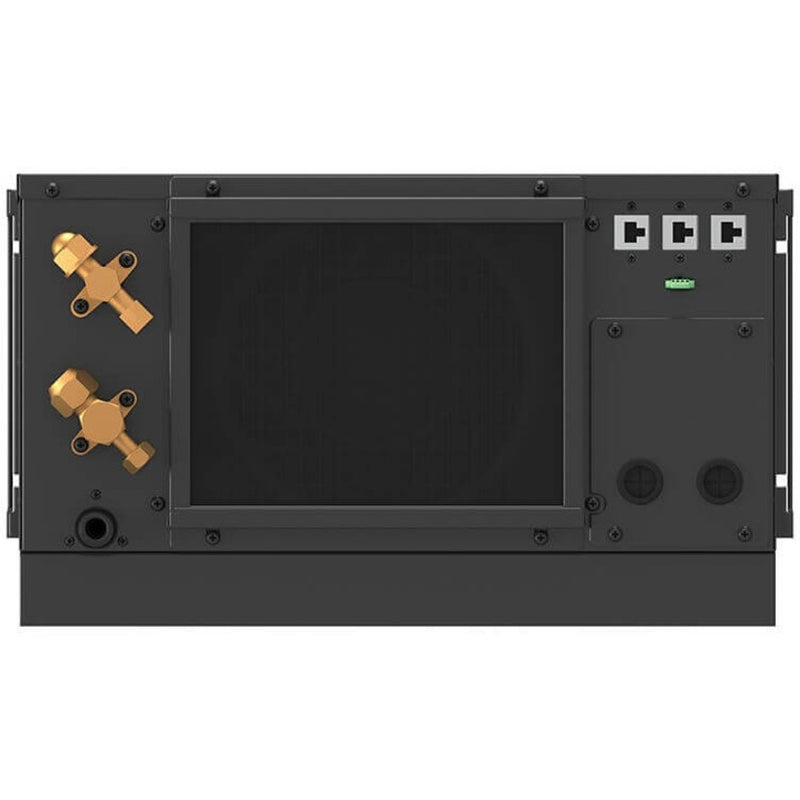

The compact 6U indoor unit mounts directly in standard racks and connects to an outdoor unit via copper piping to expel heat away from IT equipment. Featuring variable speed fans and a compressor, the system dynamically adjusts to match load requirements—maximizing energy efficiency and operational savings.
Equipped with SNMP and Modbus RTU for remote monitoring, the VRC200KIT ensures reliable performance and visibility into cooling operations. It includes all necessary components, from the indoor and outdoor units to brackets and monitoring displays—backed by a 2-year limited warranty.
| Specification | Details |
|---|---|
| Brand | Vertiv |
| Model | VRC200KIT |
| Product Type | Split Rack Airflow Cooling System |
| Cooling Capacity | 3.5kW / 12,000 BTU |
| Cooling Power Consumption | 3500 W |
| Energy Consumption | 12,660.7 kJ |
| Input Voltage / Frequency | 120V AC / 60Hz |
| Input Current | 7.20 A |
| Form Factor | Rack-Mountable (6U) |
| Airflow | Up to 750 CFM |
| Dimensions (H x W x D) | 32.7" x 29.3" x 18.1" |
| Weight | 50 lbs (Indoor Unit) / 112 lbs (Total Shipping Weight) |
| Monitoring Options | SNMP Card, Modbus RTU |
| Included Accessories | Indoor/Outdoor Units, Condensate Pump, Monitoring Display |
| Warranty | 2-Year Limited Warranty |
| Compliance | RoHS, Environmentally Friendly |
| TAA Compliant | No |
| Country of Origin | China |
