Description

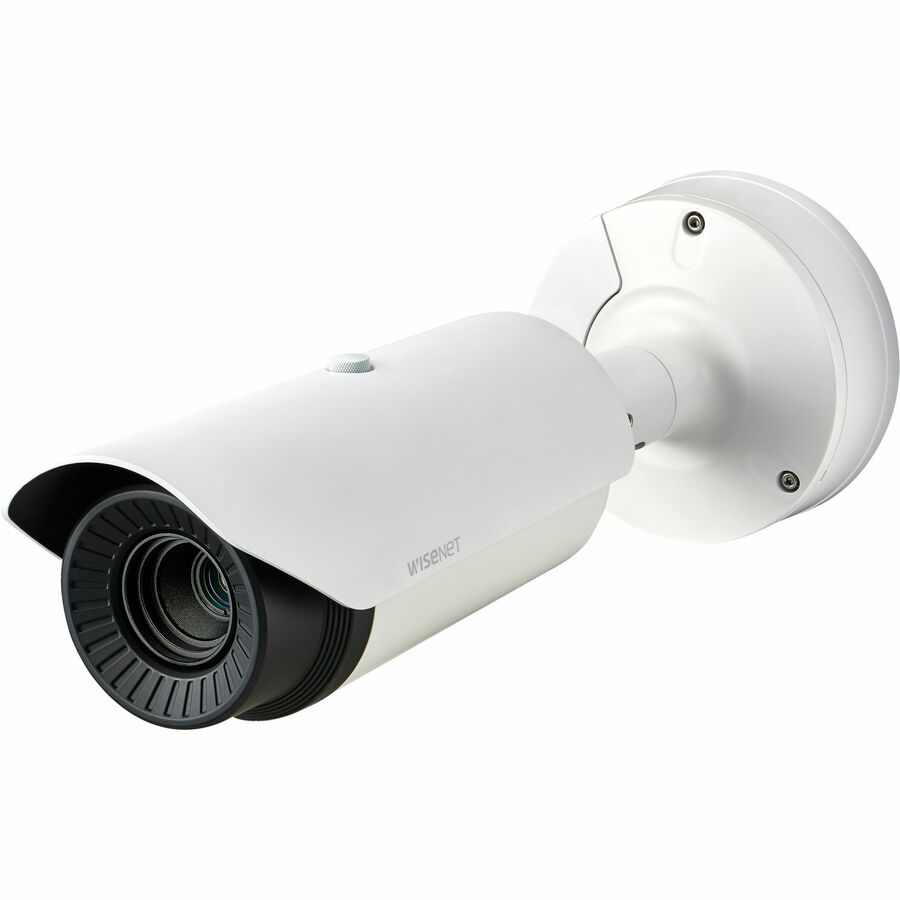

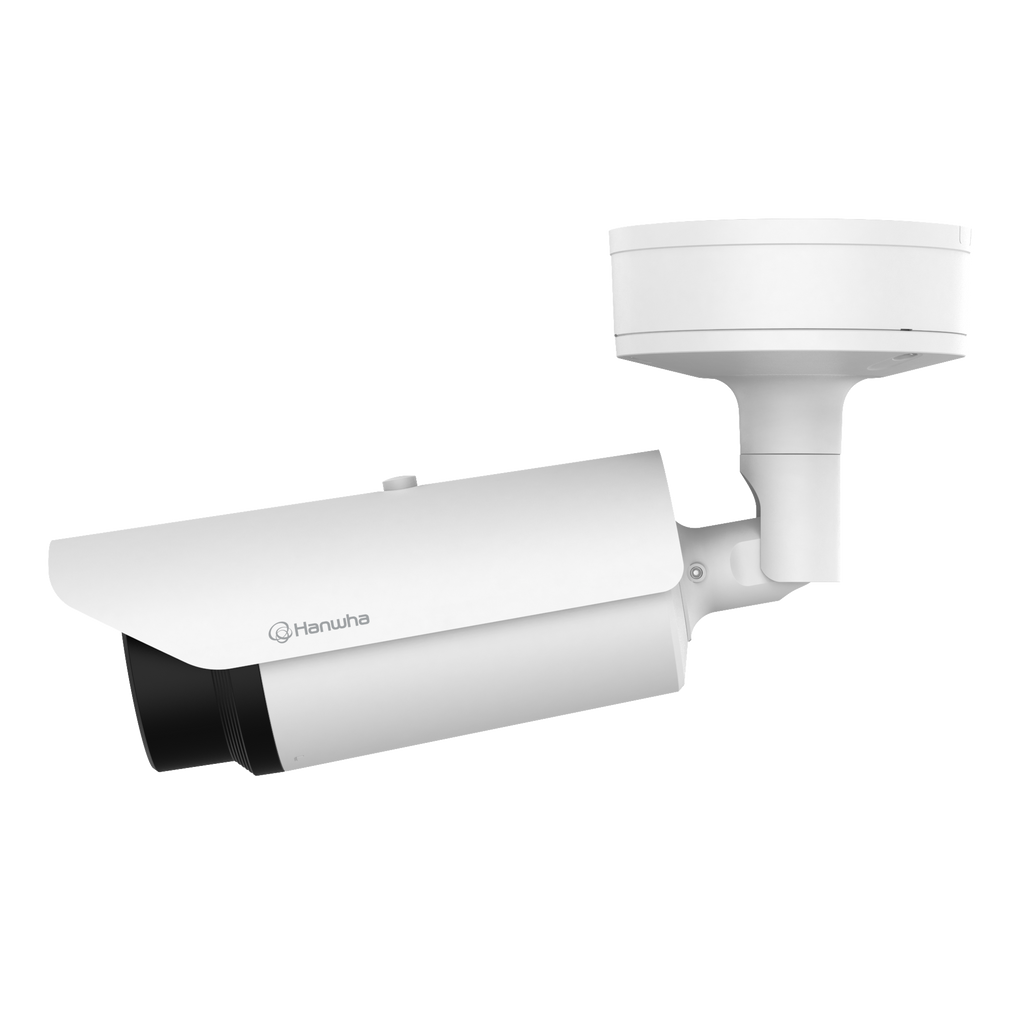

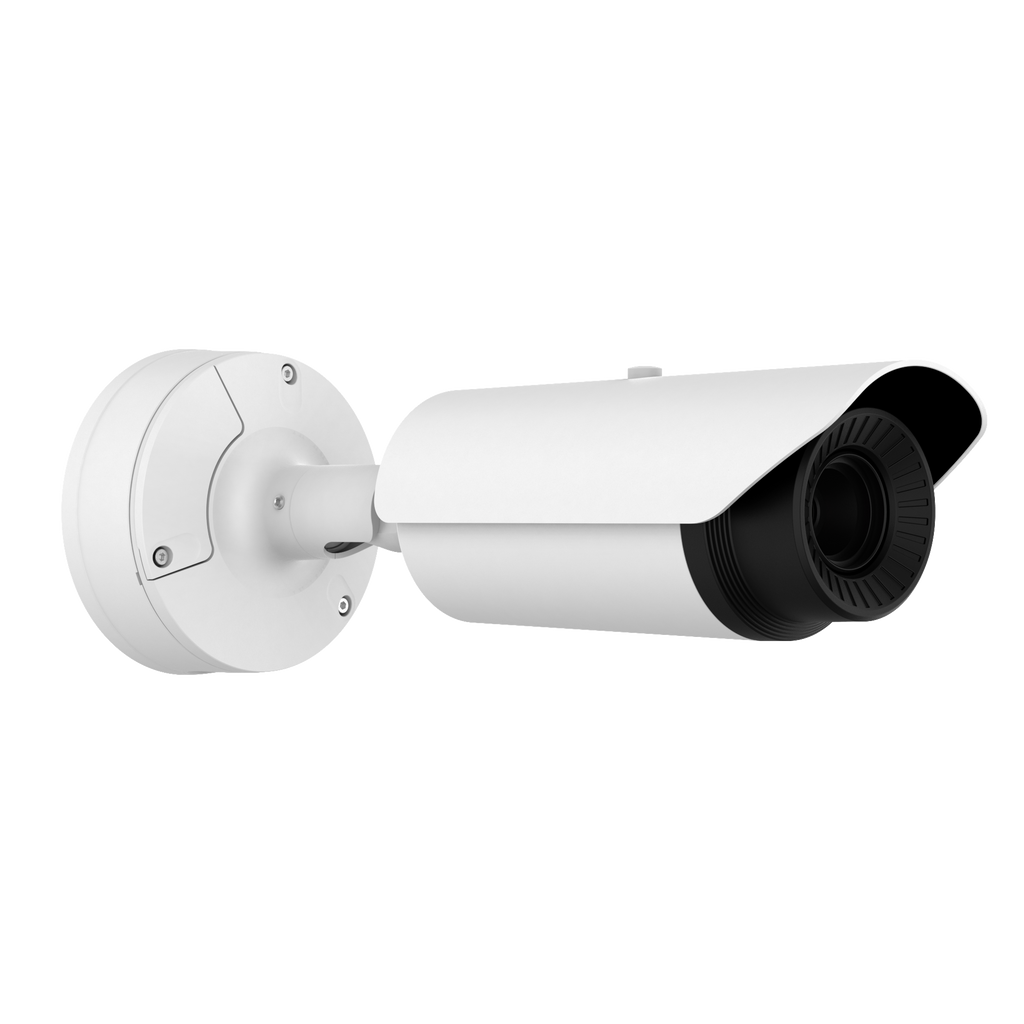

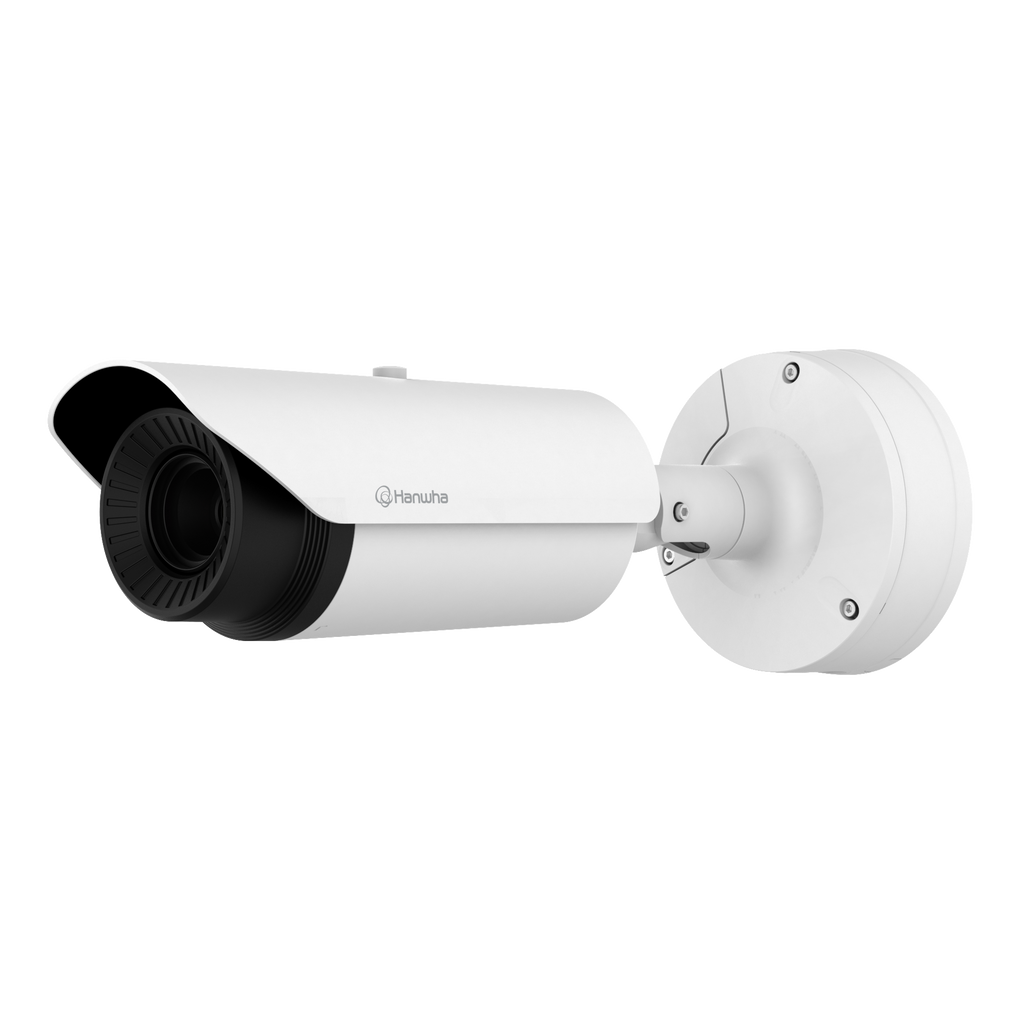

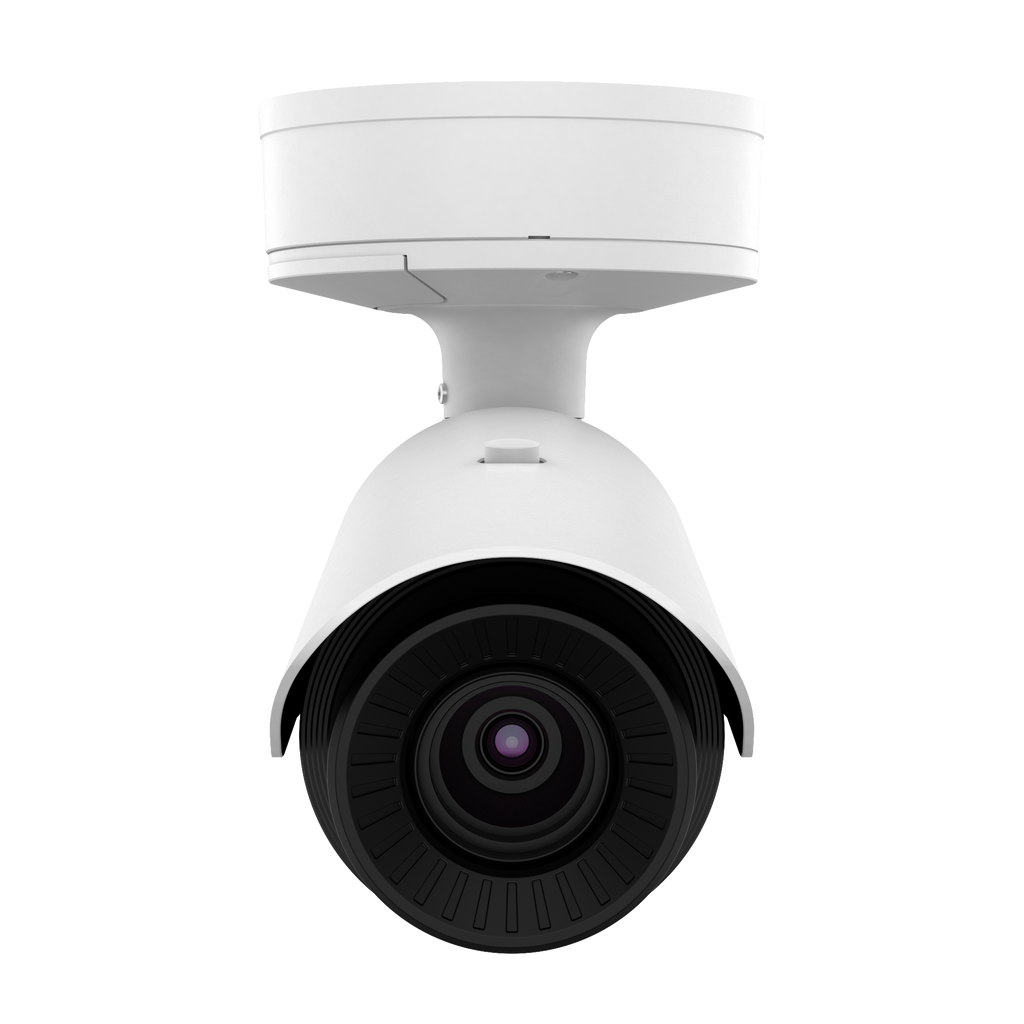

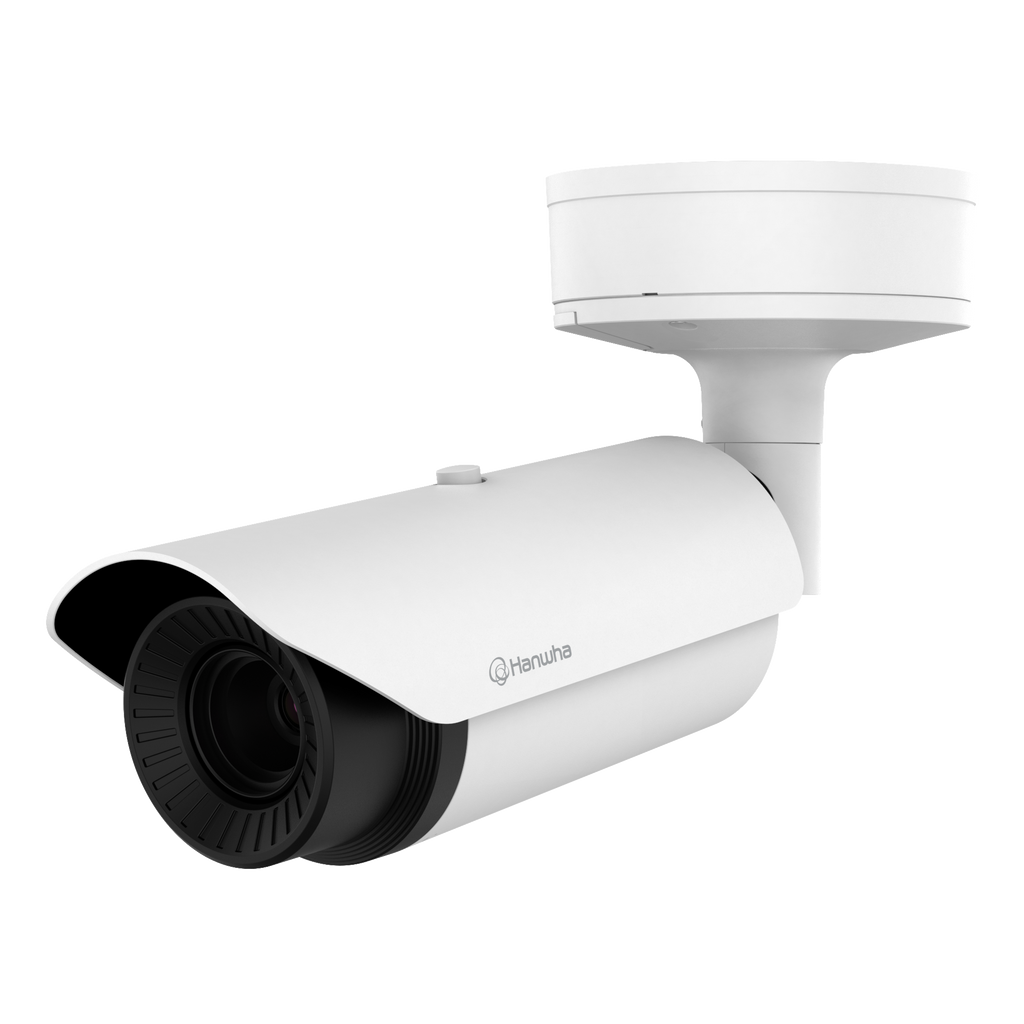

The Hanwha Vision TNO-L4030T is a high-performance thermal camera engineered for perimeter security, intrusion detection, and challenging low-visibility environments. Built with a 640×480 uncooled microbolometer sensor and a 13mm fixed lens, it delivers accurate thermal imaging across a wide spectral range, ensuring reliable detection regardless of lighting and weather conditions.
Supporting H.265, H.264, and MJPEG, the camera maximizes bandwidth efficiency while maintaining crisp thermal detail. Advanced analytics—including motion detection, tampering, directional detection, intrusion, loitering, sound classification, and temperature detection—enhance situational awareness for security operators.
Designed for robust outdoor performance, the TNO-L4030T features an IP66 / IK10 / NEMA 4X-rated aluminum housing and supports flexible power options including PoE, 12VDC, and 24VAC. With edge storage, hallway view, WiseStream II optimization, and strong cybersecurity protection, it is ideal for critical infrastructure, industrial sites, and 24/7 monitoring applications.
| Category | Details |
|---|---|
| Imaging | Uncooled microbolometer (640×480), spectral range 8–14 µm, NETD ≤50mK |
| Resolutions | 640×480, 640×360, 320×240 |
| Max Frame Rate | 8fps (H.265/H.264/MJPEG) |
| Lens | 13mm fixed, F1.0 |
| Field of View | H: 48.6° • V: 36.4° • D: 61.6° |
| Min. Object Distance | 5m (16.4 ft) |
| Video Output | CVBS, Micro USB Type-B (installation) |
| Image Enhancements | Hallway View (90°/270°), Flip/Mirror, Digital Image Stabilization |
| Analytics | Motion, Tampering, Loitering, Intrusion, Enter/Exit, Line Crossing, Direction, Appear/Disappear, Temperature detection, Audio detection, Shock detection |
| Alarm I/O | 1 input / 2 outputs |
| Audio I/O | Selectable mic-in/line-in, line-out |
| Compression | H.265/H.264 (Main/Baseline/High), MJPEG; Audio: G.711, G.726, AAC-LC |
| Smart Codec | WiseStream II |
| Streaming | Up to 10 profiles; unicast up to 20 users; multicast supported |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, HTTP/HTTPS, SNMP, QoS, UPnP, Bonjour, SRTP, FTP, SMTP, DHCP, DDNS, NTP |
| API | ONVIF S/G/T, SUNAPI |
| Security | Encrypted firmware, 802.1X, HTTPS/WSS, SRTP, digest authentication, device certificate |
| Edge Storage | MicroSD/SDHC/SDXC (max 256GB) |
| Operating Temp | –40°C to +60°C (–40°F to +140°F) |
| Power | PoE (Class 3), 12VDC, 24VAC |
| Power Consumption | PoE max 10W; 12VDC max 9W; 24VAC max 10.5W |
| Housing | Aluminum, RAL 9003 |
| Rating | IP66, IK10, NEMA 4X |
| Dimensions | Ø101.97 × 401.8 mm (4.01 × 15.82 in) |
| Weight | 3,124 g (6.89 lb) |
