Description

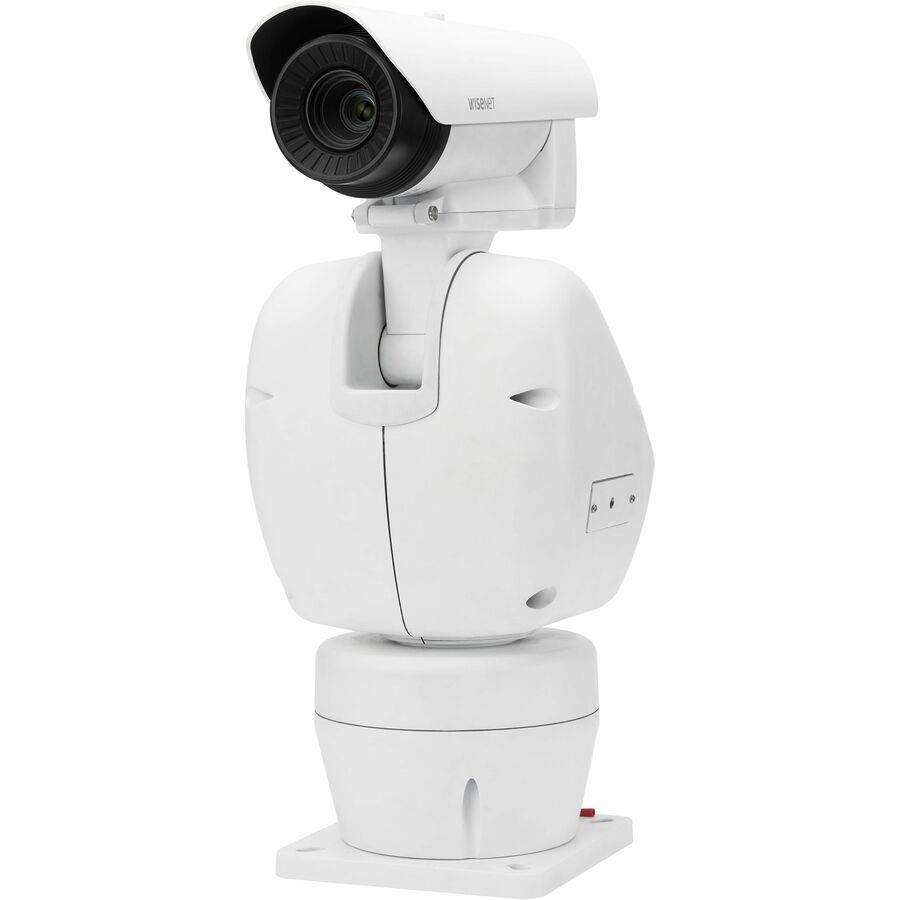

The Wisenet TNU-4051T is a high-performance VGA thermal positioning camera designed for perimeter protection, industrial facilities, critical infrastructure, and wide-area monitoring. Its uncooled microbolometer thermal sensor delivers clear thermal imaging at up to 640×480 resolution, enabling detection and tracking even in complete darkness, fog, smoke, and challenging weather conditions.
Equipped with a built-in 35mm fixed thermal lens and full 360° endless panning with rapid preset speeds, the TNU-4051T ensures wide coverage and precise positioning. Advanced analytics such as loitering, intrusion, virtual fence, shock detection, temperature change detection, and sound classification enhance situational awareness for security teams.
With rugged IP66/NEMA4X environmental protection, a wide operating temperature range, and 24VAC power support, this TAA-compliant thermal positioning camera is engineered for demanding outdoor deployments.
| Category | Specification |
|---|---|
| SKU | TNU-4051T/KUS |
| Image Sensor | Uncooled microbolometer, 640×480 |
| Thermal Resolution | 640×480 / 640×360 / 320×240 |
| Lens | 35mm fixed lens |
| FoV (H/V/D) | 17.2° / 13° / 22° |
| Spectral Range | 8–14 μm |
| NETD | ≤ 50 mK |
| Pixel Size | 17 μm |
| Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream II |
| Color Palettes | White Hot, Black Hot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
| Pan/Tilt Range | Pan: 360° endless; Tilt: –90° to +40° |
| Pan/Tilt Speed | Pan: up to 120°/sec; Tilt: up to 40°/sec |
| Preset / Tours | 300 presets, 6 groups |
| Analytics | Motion, Tampering, Loitering, Intrusion, Enter/Exit, Appear/Disappear, Direction, Line Crossing, Audio detection, Sound classification, Shock detection, Temperature change detection |
| Audio I/O | Mic/Line-in selectable, Line out |
| Alarm I/O | 1 input / 1 output |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTP/HTTPS, DHCP, FTP, SMTP, IGMP, SNMPv1/v2c/v3, QoS, UPnP, Bonjour, LLDP, SRTP |
| ONVIF Support | Profiles S, G, T |
| Edge Storage | microSD/SDHC/SDXC up to 256GB |
| Operating Temperature | –40°F to +131°F (–40°C to +55°C) |
| Storage Temperature | –58°F to +140°F (–50°C to +60°C) |
| Operating Humidity | 0–90% RH (non-condensing) |
| Power Input | 24VAC |
| Power Consumption | Max 84W (heater on), 62W (heater off) |
| Housing Rating | IP66, NEMA 4X |
| Construction | Aluminum, White (RAL9003) |
| Dimensions | 219 × 528 × 335 mm (8.62 × 20.79 × 13.19 in) |
| Weight | 11.7 kg (25.79 lb) |
