Description
The Kramer TP-574 is a high-performance DGKat™ twisted-pair receiver designed to deliver HDMI, bidirectional RS-232, and IR signals over long distances with outstanding reliability. Paired with the TP-573 transmitter, it converts and restores audio-video and control signals with exceptional clarity, making it ideal for professional AV installations, digital signage, conference rooms, and control-driven environments.
Supporting HDMI, HDCP, x.v.Color™, Lip Sync, and advanced multichannel audio formats such as Dolby TrueHD and DTS-HD, the TP-574 ensures compatibility with modern AV workflows. With long-reach transmission up to 100 meters (330 ft) using shielded DGKat cables, 3D pass-through, EDID pass-thru, and Kramer’s Power Connect System™, this compact DigiTOOLS® receiver delivers a reliable, scalable, and installation-friendly solution.
| Category | Details |
|---|---|

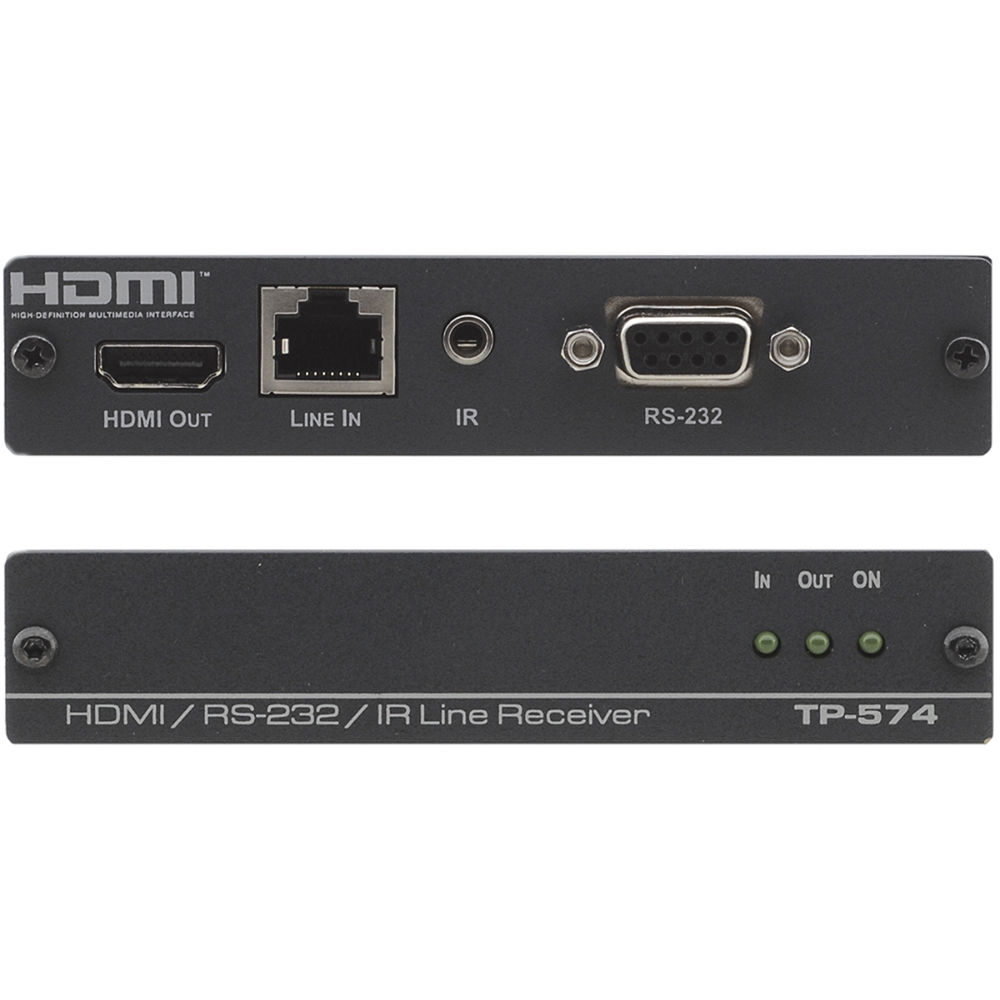

| Inputs | 1× CAT 5 (RJ-45) DGKat input |
| Outputs | 1× HDMI connector; 1× bidirectional IR port (3.5mm mini-jack); 1× bidirectional RS-232 port (9-pin D-sub) |
| Max Data Rate | 4.95Gbps (1.65Gbps per graphic channel) |
| HDMI/HDCP Support | Fully compliant; supports x.v.Color™, Lip Sync, Dolby TrueHD, DTS-HD |
| 3D Support | Yes, 3D pass-through |
| EDID Handling | EDID PassThru |
| RS-232/IR | Bidirectional; RS-232 up to 38,400 baud |
| System Range | Up to 90m at 1080i / 30m at 1080p on BC-DGKat524; up to 90m at 1080i / 70m at 1080p on BC-DGKat623; up to 100m at 1080i / 90m at 1080p on BC-DGKat7a23 |
| Cable Requirements | Shielded twisted pair (STP) recommended; optimal with Kramer DGKat cables |
| Power | 12V DC from TP-573 (PoC) |
| Options | RK-3T rack mount; Kramer remote receiver; BC-DGKat524/623 cables |
| Product Dimensions (W×D×H) | 12.00 × 7.15 × 2.44 cm (4.72" × 2.81" × 0.96") |
| Product Weight | 0.2 kg (0.4 lbs) |
| Shipping Dimensions | 15.70 × 12.00 × 8.70 cm (6.18" × 4.72" × 3.43") |
| Shipping Weight | 0.4 kg (0.8 lbs) |
