Description

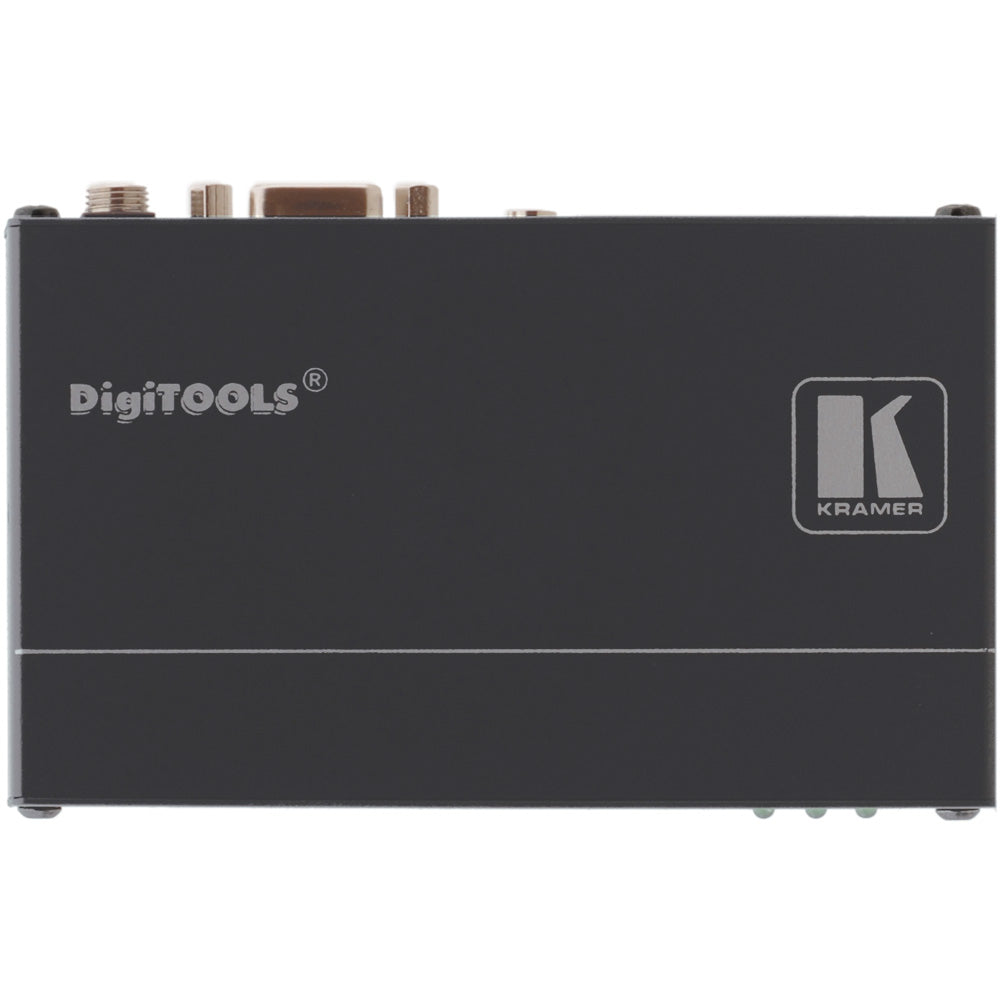

The Kramer TP-573 is a compact, long-reach DGKat™ twisted-pair transmitter designed for reliable HDMI, RS-232, and IR signal extension in professional AV environments. Engineered for installations requiring secure HDCP 2.2–compliant content delivery, the TP-573 converts input HDMI and control signals into DGKat format for transmission over standard twisted-pair cabling to a compatible TP-574 receiver.
With support for 1080p, 3D pass-through, uncompressed audio formats including Dolby TrueHD and DTS-HD, x.v.Color™, and Lip Sync, this transmitter ensures high-performance signal integrity across medium- to long-distance runs. EDID Pass-Through provides easy integration with source devices, while the bidirectional RS-232 and IR interface enables flexible device control. Power Connect System™ technology allows powering both units through a single connection, ideal for streamlined installations.
Compact and rack-mountable with DigiTOOLS® adapters, the TP-573 delivers dependable performance for classrooms, digital signage, conference rooms, and AV distribution systems.
| Specification | Details |
|---|---|
| Inputs | 1 HDMI; 1 bidirectional IR (3.5mm mini-jack); 1 bidirectional RS-232 (9-pin D-sub) |
| Outputs | 1 CAT 5 (RJ-45) DGKat output |
| Max Data Rate | 4.95Gbps (1.65Gbps per graphic channel) |
| HDMI / HDCP Support | HDMI, HDCP compliant; HDCP 2.2 compatible |
| Supported Features | 3D pass-through, x.v.Color™, Lip Sync, uncompressed audio, Dolby TrueHD, DTS-HD |
| EDID Pass-Through | Yes |
| RS-232 / IR | Bidirectional, 38400 max baud rate |
| System Range | Up to 90m (1080i@60Hz) or 70m (1080p@60Hz) with Kramer DGKat cables |
| Power | 12V DC, 510mA |
| Included Accessories | 12V DC power supply |
| Product Dimensions (W×D×H) | 12.00 × 7.15 × 2.44 cm (4.72" × 2.81" × 0.96") |
| Product Weight | 0.2 kg (0.4 lbs) approx. |
| Shipping Dimensions (W×D×H) | 23.20 × 12.00 × 8.90 cm (9.13" × 4.72" × 3.50") |
| Shipping Weight | 0.5 kg (1.1 lbs) approx. |
