Description

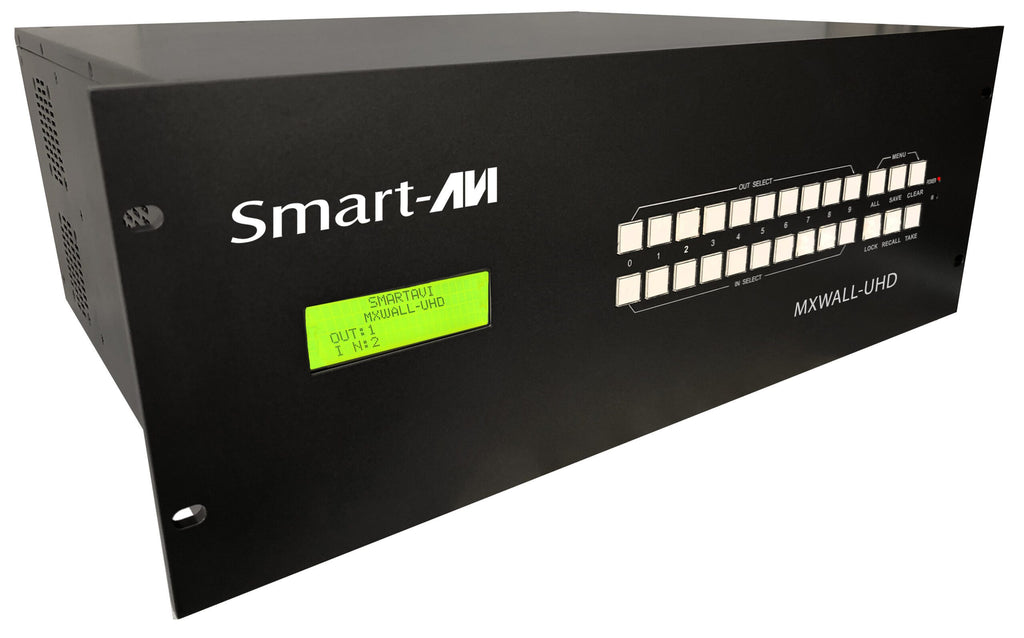

The SmartAVI MXWALL-UHD 16x16 is a powerful all-in-one video wall processor and matrix switch designed for professional AV environments requiring seamless 4K distribution and flexible display control. Supporting up to 16 HDMI inputs and 16 outputs, this system delivers Ultra HD video at up to 4K/60Hz with integrated scaling and conversion for consistent, high-quality visuals across every screen.
Engineered for reliability and ease of use, the MXWALL-UHD enables instant switching, real-time layout customization, and multiple display configurations including full video wall, quad view, and independent screen routing. The intuitive MXWall Manager software allows users to create and adjust layouts with simple drag-and-drop functionality, making it ideal for control rooms, digital signage, corporate environments, and mission-critical installations.
With robust control options including front panel, RS-232, and TCP/IP, this solution ensures seamless integration into any AV system. Its plug-and-play design eliminates complex setup, allowing immediate deployment while maintaining enterprise-grade performance and scalability.
| Specification | Details |
|---|---|
| Video Support | Up to 4K UHD (3840 x 2160) at 60Hz |

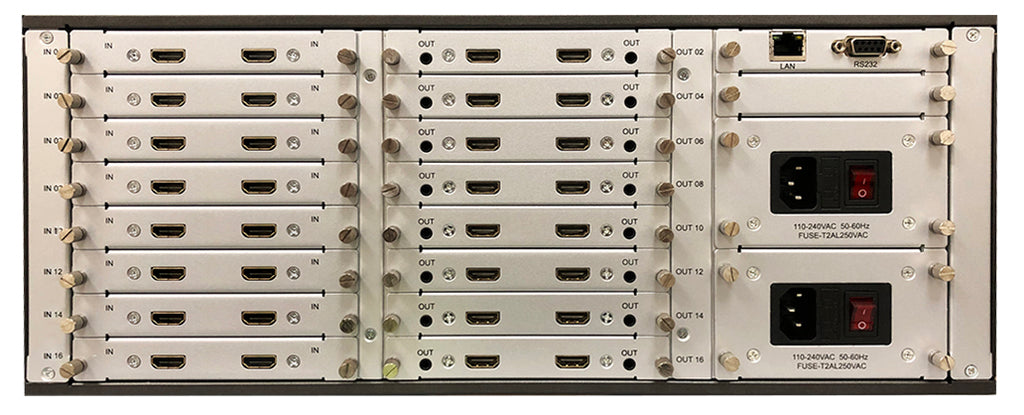

| Input Ports | 16 x HDMI 2.0 |
| Output Ports | 16 x HDMI |
| Video Bandwidth | 18 Gbps |
| HDCP Compliance | HDCP 2.2 |
| Supported Resolutions | 4K (24/25/30/50/60Hz), 1080p @ 60Hz |
| Switching | Seamless switching technology |
| Scaling | Integrated scaler for resolution conversion to UHD |

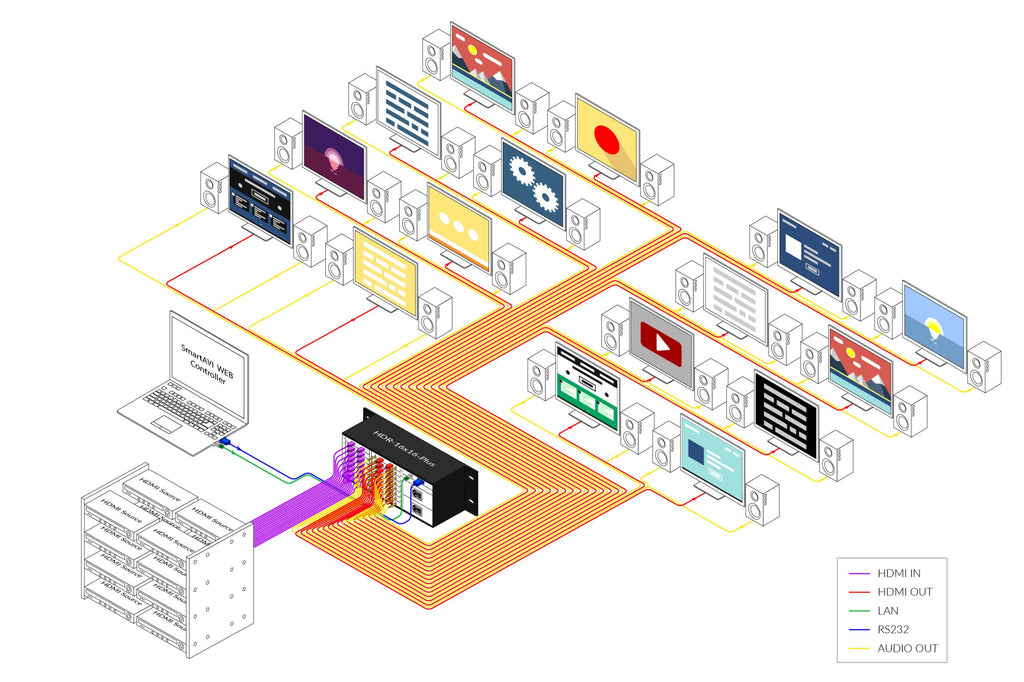

| Display Modes | Video wall, quad view, individual routing, custom layouts |

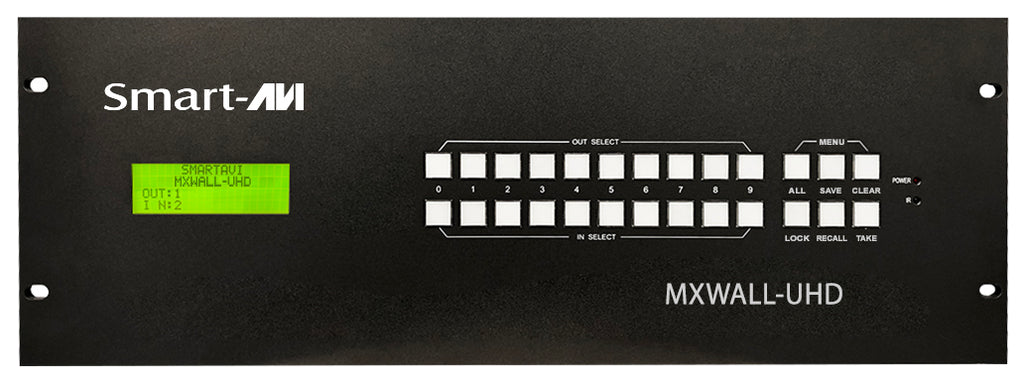

| Control Methods | Front panel, RS-232, TCP/IP (LAN) |
| Software | MXWall Manager (drag-and-drop configuration) |
| Audio Support | Stereo audio via 3.5mm input/output (16 in / 16 out) |
| Operating Temperature | 0°C to 40°C |
| Humidity | 20% to 90% non-condensing |
| Power Supply | 110-240V AC, 50/60Hz |
| Power Consumption | 100W |
| Dimensions | 17” W x 7.125” H x 15” D |
| Weight | 24.45 lbs |
| Installation | Plug-and-play, no additional drivers required |
| Included Components | MXWALL-UHD unit and power supply |
