Description

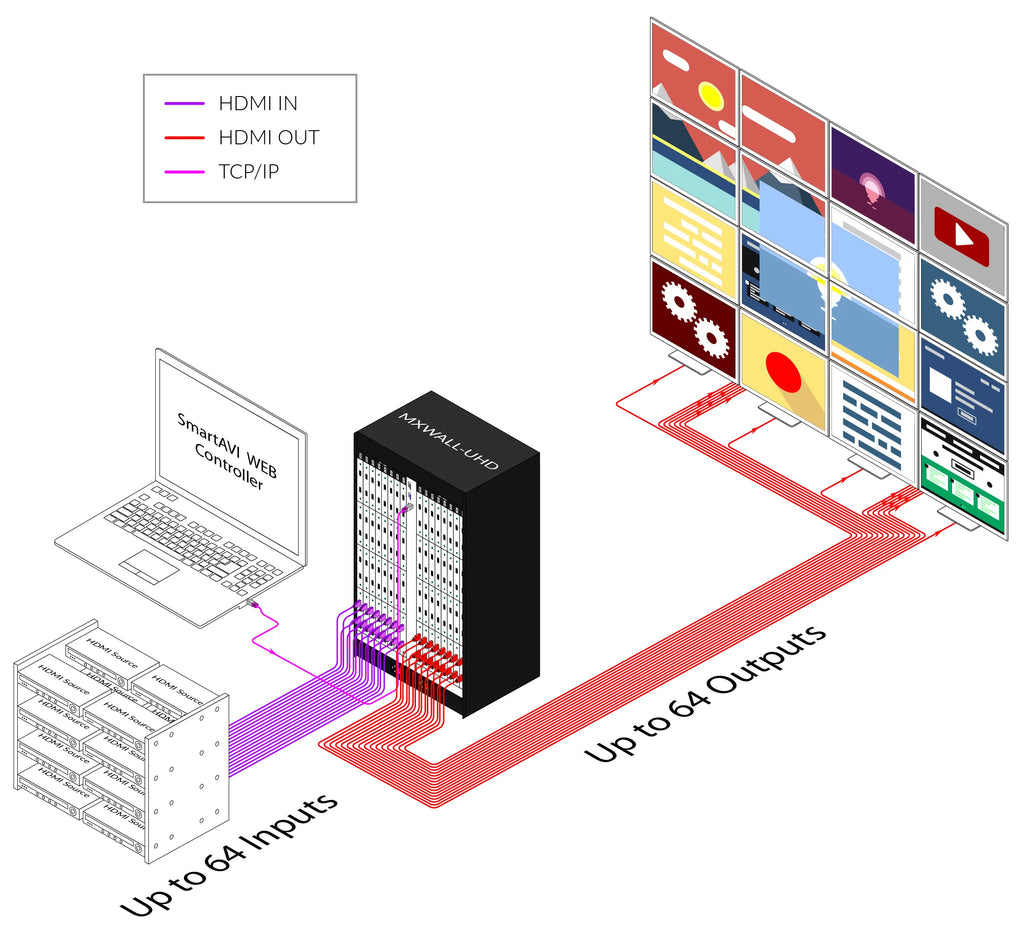

The SmartAVI MXWall-UHD 64x64 is a powerful all-in-one video wall processor and matrix switch designed for enterprise-grade AV environments requiring high-performance, scalable display control. Supporting up to 64 HDMI inputs and 64 HDMI outputs, this system delivers seamless 4K UHD video distribution with integrated scaling and conversion for unmatched flexibility.
Built for mission-critical applications, the MXWall-UHD ensures smooth, real-time switching and ultra-clear visuals across large-format video walls. Its intuitive control options, including front panel operation, RS-232, and TCP/IP, enable centralized management and effortless configuration. The included MXWall Manager software allows users to create dynamic, fully customized layouts with simple drag-and-drop functionality, making it ideal for control rooms, digital signage, command centers, and large-scale commercial installations.
With plug-and-play deployment, robust hardware architecture, and virtually unlimited layout configurations, the MXWall-UHD is engineered to deliver reliability, scalability, and precision in demanding AV environments.
| Specification | Details |
|---|---|
| Video Support | Up to 4K UHD (3840 x 2160 @ 60Hz), 4K @ 30Hz, 1080p @ 60Hz |
| Video Bandwidth | 18 Gbps |
| Inputs | 64 x HDMI |
| Outputs | 64 x HDMI |
| HDMI Standard | HDMI 2.0, HDCP 2.2 compliant |
| Audio Support | Stereo audio |
| Audio Inputs | 64 x 3.5mm (female) |
| Audio Outputs | 64 x 3.5mm (female) |
| Switching | Seamless switching |
| Scaling | Integrated scaler for resolution conversion to UHD |
| Control Methods | Front panel, RS-232, TCP/IP (LAN) |
| Software | MXWall Manager (Windows-based GUI) |
| Configuration Modes | Video wall mode, individual display mode, quad view, custom layouts |
| Layout Flexibility | Unlimited user-defined configurations |
| Operating Temperature | 0°C to +40°C |
| Storage Humidity | 20% to 90% |
| Power Supply | 110–240 VAC, 50/60Hz |
| Power Consumption | 100W |
| Dimensions | 19” W x 14” H x 28” D |
| Weight | 97 lbs |
| Installation Type | Rackmount / AV system integration |
| Included Components | MXWall-UHD processor and power supply unit |
