Description

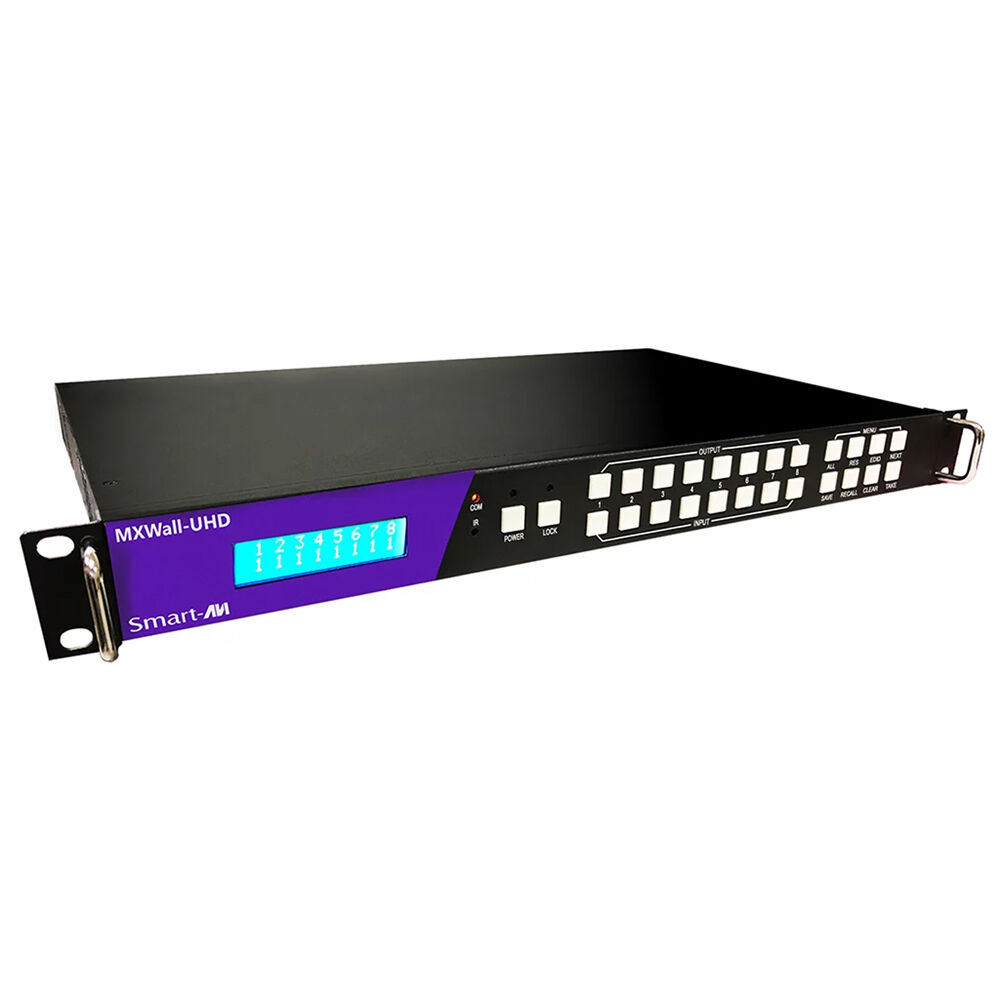

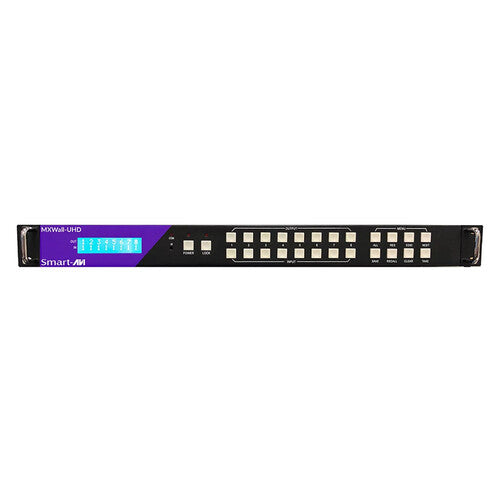

The SmartAVI MXWall-UHD-0812-S is a high-performance 4K60 video wall processor and matrix switch designed for professional AV environments requiring seamless multi-display control. Featuring 8 HDMI inputs and 12 outputs, this all-in-one solution enables flexible video wall configurations with ultra-high-definition clarity and smooth switching performance.
Built with an integrated scaler and converter, the system ensures consistent 4K output across all displays, regardless of input resolution. Its intuitive control options including TCP/IP, RS-232, and front panel access allow for effortless operation in real-time environments. With support for customizable layouts, users can create dynamic video walls tailored to control rooms, digital signage, corporate presentations, and large-scale display installations.
Engineered for reliability and ease of deployment, the MXWall-UHD platform offers plug-and-play functionality, robust processing power, and advanced layout management through dedicated software, making it an ideal solution for mission-critical AV applications.
| Specification | Details |
|---|---|
| Product Type | Video Wall Processor & Matrix Switch |

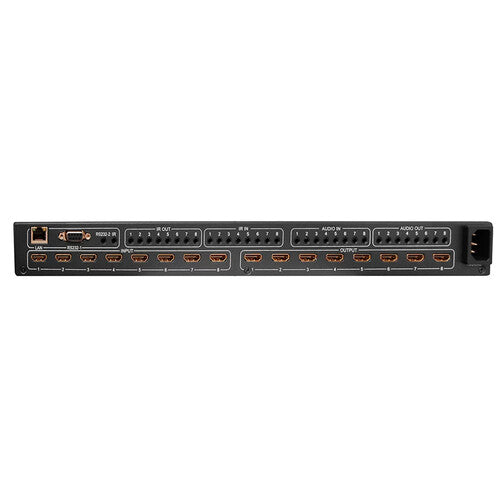

| Input Ports | 8 x HDMI |
| Output Ports | 12 x HDMI |
| Maximum Resolution | 3840 x 2160 @ 60Hz (4K UHD) |
| Supported Resolutions | 4K60, 4K30, 1080p60 |
| Video Bandwidth | 18 Gbps |
| HDMI Compliance | HDMI 2.0, HDCP 2.2 |
| Switching Type | Seamless switching |
| Scaling | Integrated scaler for resolution conversion |
| Video Wall Configurations | Custom layouts, multi-screen arrangements |
| Control Methods | TCP/IP (LAN), RS-232, Front Panel |
| Software Control | Windows-based video wall management software |
| Audio Support | Stereo audio via 3.5mm input/output |
| IR Control | 3.5mm IR input/output ports |
| Power Supply | 110-240V AC, 50/60Hz |
| Power Consumption | 100W |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 17” W x 3.5” H x 15” D |
| Form Factor | Rackmount |
| Installation | Plug-and-play ready |
