Description
The ViewSonic® TeamJoin™ TRS10-UB bundle delivers an all-in-one, certified Microsoft Teams Rooms solution designed to transform hybrid collaboration. Featuring the ViewBoard® IFP105UW 105" 5K 21:9 Ultra-Wide Interactive Display, this bundle enables seamless teamwork, engaging presentations, and inclusive meeting experiences optimized for Microsoft Front Row layouts.
This comprehensive bundle includes:
-
MPC310-W31-TU computing engine powered by Intel® 12th Gen Core™ processors
-
MRC1010-TN 10.1” touch console for intuitive meeting control
-
UMB202 4K video bar system for premium audio-visual clarity
-

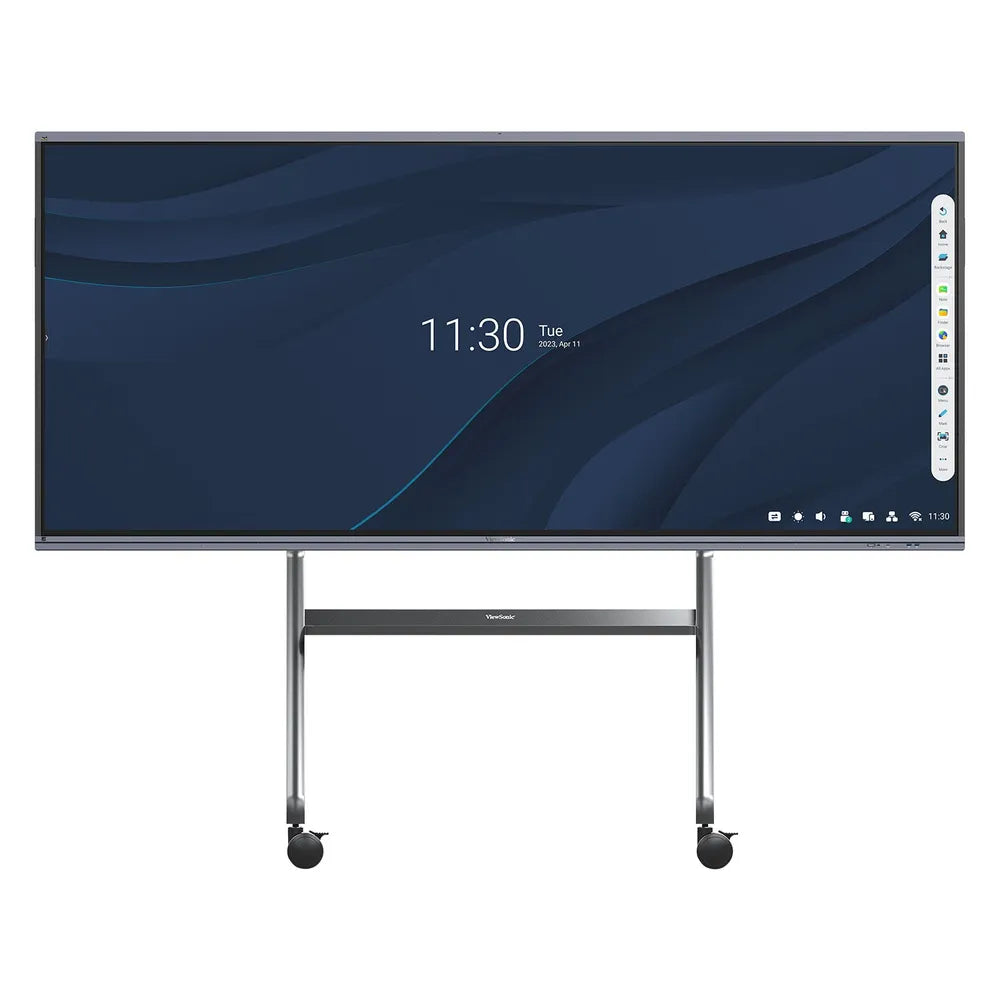

IFP105UW 105” 5K 21:9 ultra-wide interactive display with intuitive whiteboarding
Ideal for corporate boardrooms and higher education environments, the IFP105UW features a high-accuracy touchscreen with palm recognition, a 47W soundbar with integrated microphones, and vivid IPS visuals for immersive collaboration. Whether participants are on-site or joining remotely, everyone is seen, heard, and engaged.
| Specification | Description |
|---|---|
| Model | IFP105UW-MTRC |
| Display Type | LCD (IPS Technology) |
| Screen Size | 105-inch (21:9 Ultra-wide) |
| Resolution | 5K (5120 x 2160) |
| Brightness | 400 cd/m² |
| Contrast Ratio (Static/Dynamic) | 4000:1 / 5000:1 |
| Response Time | 6.5 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Screen Surface | Anti-glare, 3H Hardness |
| Audio | Integrated 47W soundbar with microphone |
| Speakers | 3 integrated speakers |
| Connectivity | Wi-Fi, Ethernet LAN (RJ45 x2) |
| Interfaces | HDMI 2.0 In (x3), HDMI 2.1 In (x1), HDMI Out (x1), DisplayPort (x1), SPDIF (x1), USB 3.0 (x6), USB 2.0 (x1), USB 2.0 Type-B (x3), USB Type-C (x2, 60W PD), RS232 (x1) |
| Power Consumption (Operational) | 275W |
| Power Consumption (Standby) | <0.5W |
| Voltage Requirement | 100–240 VAC |
| Mount Compatibility | VESA 1000 x 400 mm |
| Dimensions (W x D x H) | 98.71" x 44.49" x 4.06" |
| Weight | 91.4 kg (263.5 lbs) |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 20% – 80% |
| Warranty | 3-Year Limited (Parts & Labor, On-Site Service) |
| Compliance | Microsoft Teams Rooms Certified |
| Included Components | MPC310-W31-TU (Mini-PC), MRC1010-TN (Touch Console), UMB202 (4K Video Bar), IFP105UW Display |
