Description

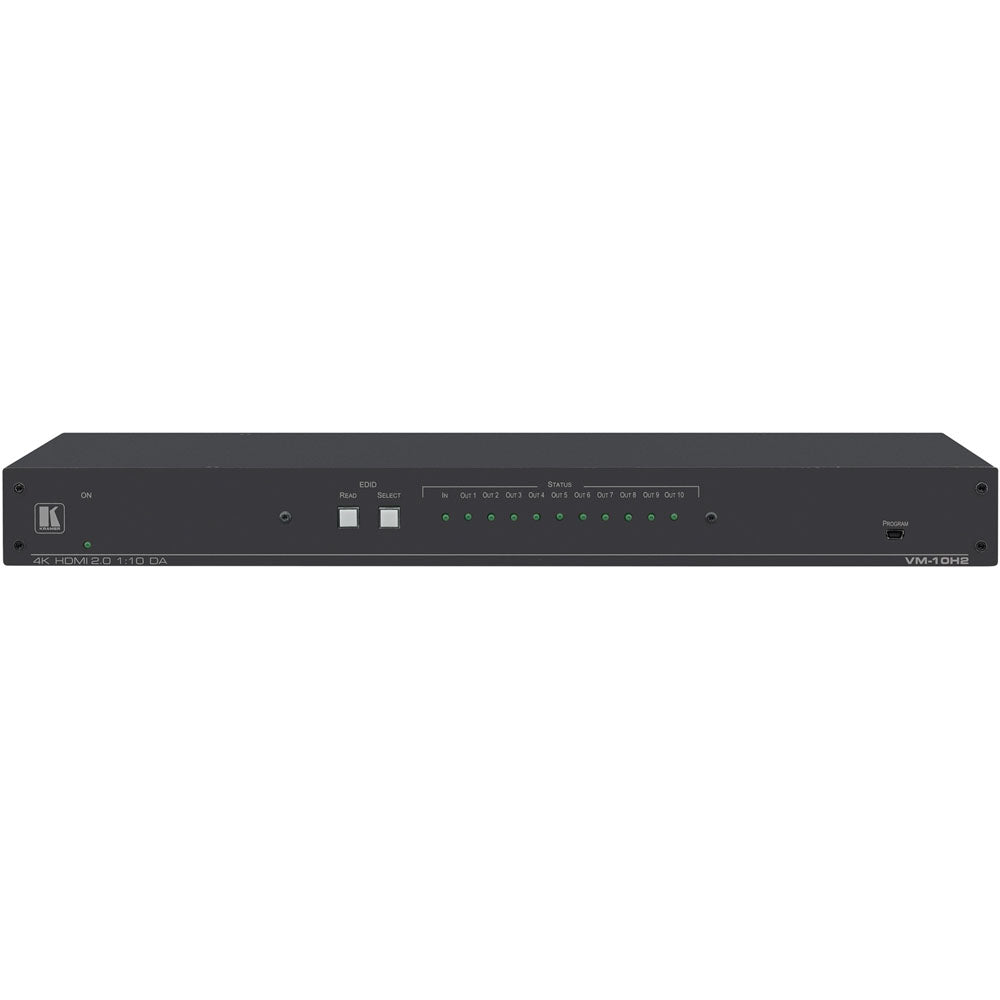

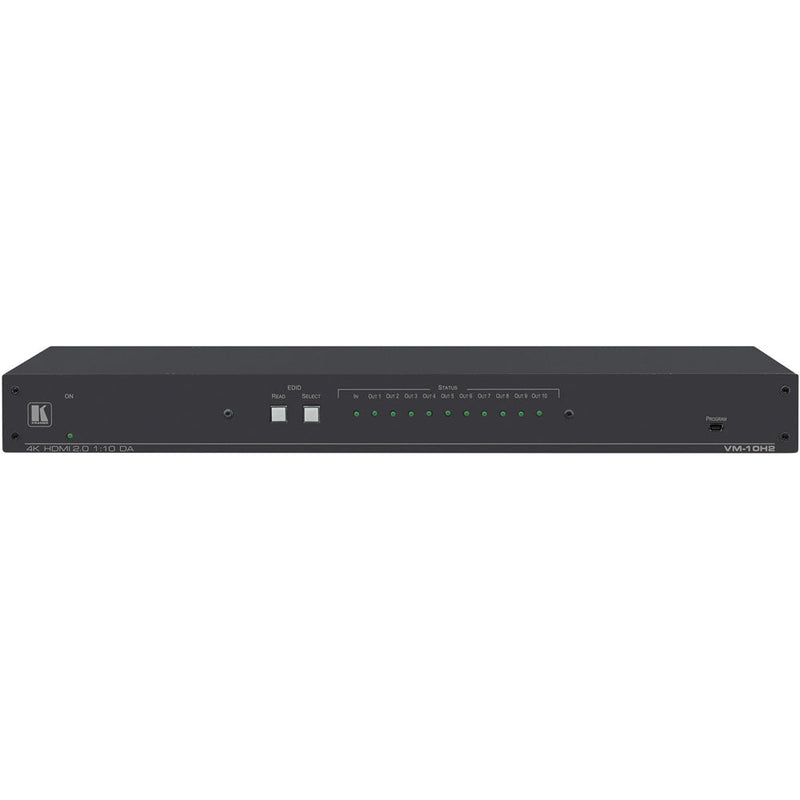

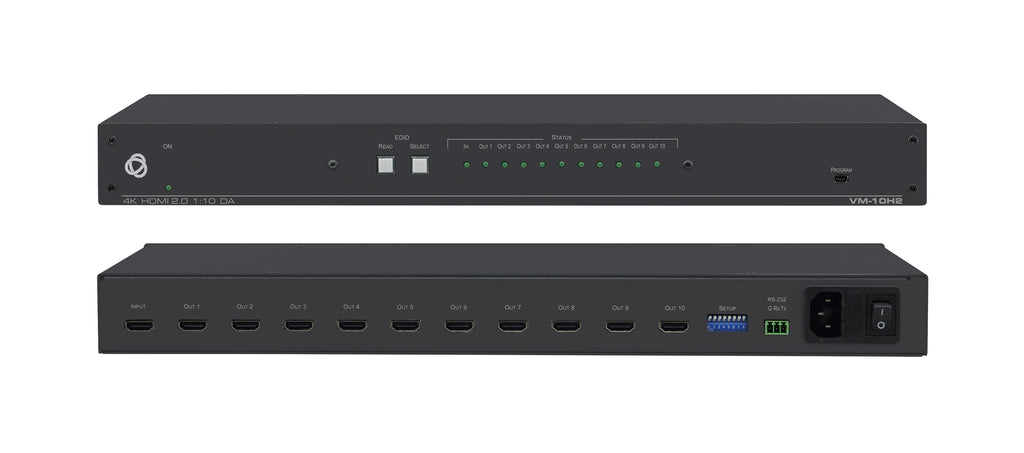

The Kramer VM-10H2 is a professional-grade 1:10 4K HDR HDMI distribution amplifier designed to deliver ultra-reliable, high-performance signal distribution for modern AV environments. With support for 4K@60Hz (4:4:4), HDR10, and full HDCP 2.2 compliance, this unit takes a single HDMI source and outputs ten perfectly equalized and reclocked HDMI signals for maximum clarity and stability across extended distances.
Built with Kramer Equalization & re-Klocking™ Technology, the VM-10H2 regenerates and restores signal integrity, ensuring consistent performance even in demanding installations. Advanced EDID tools—including I-EDIDPro™ Intelligent EDID Processing—allow seamless plug-and-play operation with any combination of sources and displays.
This 1U rack-mountable solution integrates easily into professional AV racks, supports firmware upgrades via Mini-USB, and includes user-friendly controls and indicators for streamlined installation, operation, and troubleshooting.
| Category | Details |
|---|---|
| Inputs | 1 HDMI (female) |
| Outputs | 10 HDMI (female) |
| Ports | 1 RS-232 (3-pin terminal block), 1 Mini-USB for firmware upgrade |
| Video Bandwidth | Up to 17.82Gbps (5.94Gbps per channel) |
| Supported Resolution | Up to 4K@60Hz (4:4:4) |
| HDR / Compliance | HDR10, HDCP 2.2 |
| Audio Support | 7.1 PCM, Dolby TrueHD, DTS-HD |
| Additional Video Features | Deep Color, x.v.Color™, lip sync, 2K/4K/3D (per HDMI 2.0 spec) |
| Controls | EDID Select & Read buttons, DIP switches |
| Indicators | Output LEDs 1–10, Active Input, Power On |
| Power Source | 100–240V AC, 50/60Hz, 55VA |
| Power Consumption | 100–240V AC, 50/60Hz, 15VA |
| Enclosure | 19" 1U aluminum rack-mount |
| Cooling | Fan ventilation |
| Product Dimensions (W × D × H) | 19" × 7.20" × 1U (43.6cm × 18.30cm × 4.36cm) |
| Product Weight | 1.8kg (3.9lbs) |
| Shipping Dimensions | 55.00cm × 27.60cm × 10.70cm |
| Shipping Weight | 2.8kg (6.1lbs) |
