Description

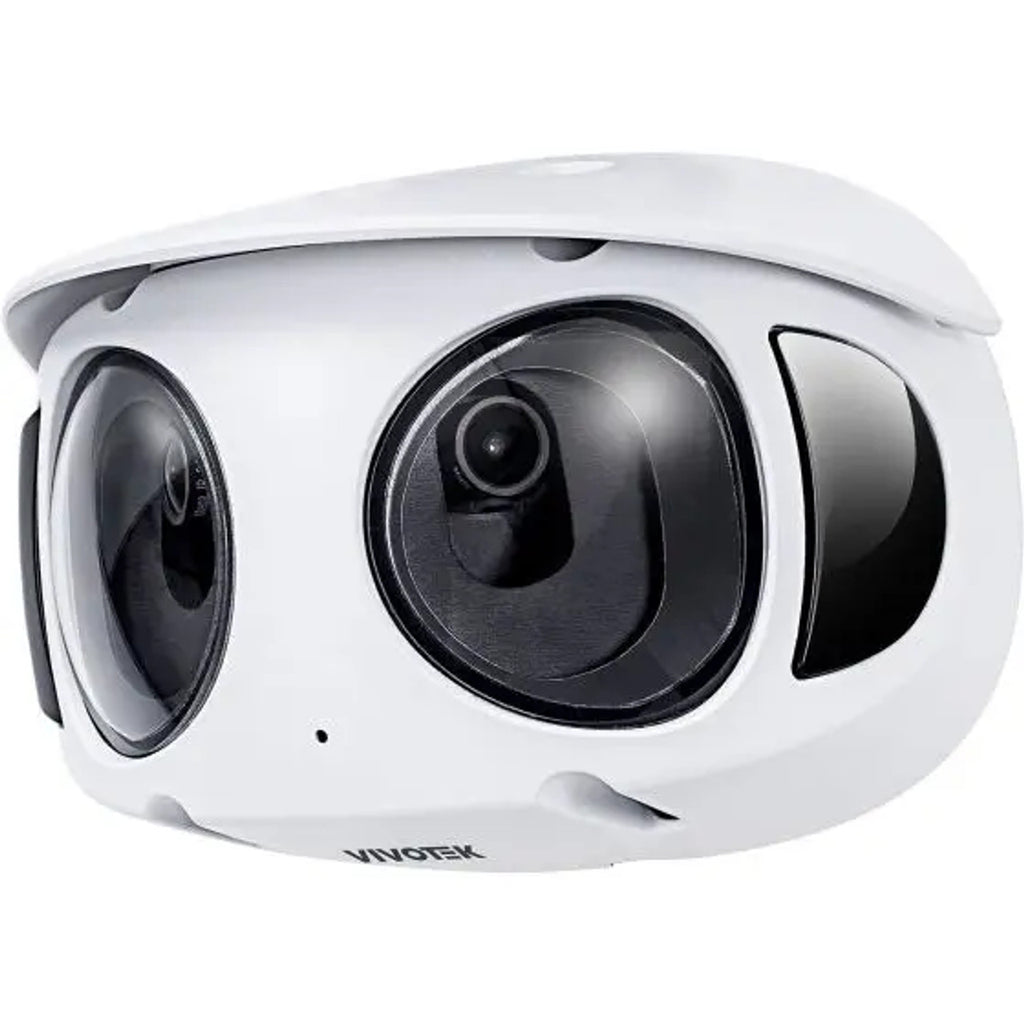

The Vivotek MS930-EHV-90-1Y redefines panoramic surveillance with its innovative dual-sensor design, delivering a seamless 360° field of view and exceptional 8MP image quality for comprehensive outdoor monitoring. Equipped with two 1/2.7" progressive scan CMOS sensors, each with a 2.8mm fixed lens, this advanced panoramic camera provides two 180° horizontal views, capturing every detail across wide areas with zero blind spots.
Engineered for robust performance in demanding outdoor environments, the MS930-EHV-90-1Y features IP66 and IK10-rated weatherproof and vandal-resistant housing, ensuring reliability under harsh weather conditions and potential impacts. Built-in IR illuminators deliver up to 66 feet of night vision coverage, guaranteeing clear visibility even in complete darkness. An integrated microphone captures audio up to 16.4 feet away, enhancing situational awareness alongside detailed visual data.
With advanced AI-powered analytics, the MS930-EHV-90-1Y supports intrusion detection, line-crossing detection, and vehicle analytics — including license plate recognition — for proactive security monitoring. The camera includes onboard storage with a 512GB microSD card and WDR Pro technology, ensuring optimal image performance in complex lighting conditions. Designed for large-scale security applications, it supports live streaming for up to six concurrent clients, making it ideal for parking areas, public spaces, transportation hubs, and critical infrastructure facilities.
| Specification | Details |
|---|---|
| Camera Style | Multi-sensor Panoramic |
| Resolution | 8MP |
| Lens Type | Fixed Lens |
| Lens Size | 2.8mm |
| Sensor Type | Multi-sensor |
| Sensor Size | 1/2.7" |
| Field of View | Dual 180° horizontal (360° total coverage) |
| IR Range | Up to 66 ft (20 m) |
| Audio | Built-in microphone (up to 16.4 ft range) |
| Video Frame Rate | 15 fps |
| WDR | WDR Pro |
| Analytics | People detection, intrusion detection, line crossing, vehicle detection, license plate recognition |
| Storage | Embedded 512GB microSD card |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Operating Humidity | 0% to 98% |
| Power Supply | PoE |
| Protection Code | IP66, IK10 |
| Day/Night | Yes |
| Environmental | Outdoor |
| Dimensions | 4.8 x 3.9 x 4.8 in |
| Concurrent Live View | Up to 6 clients |
