Description

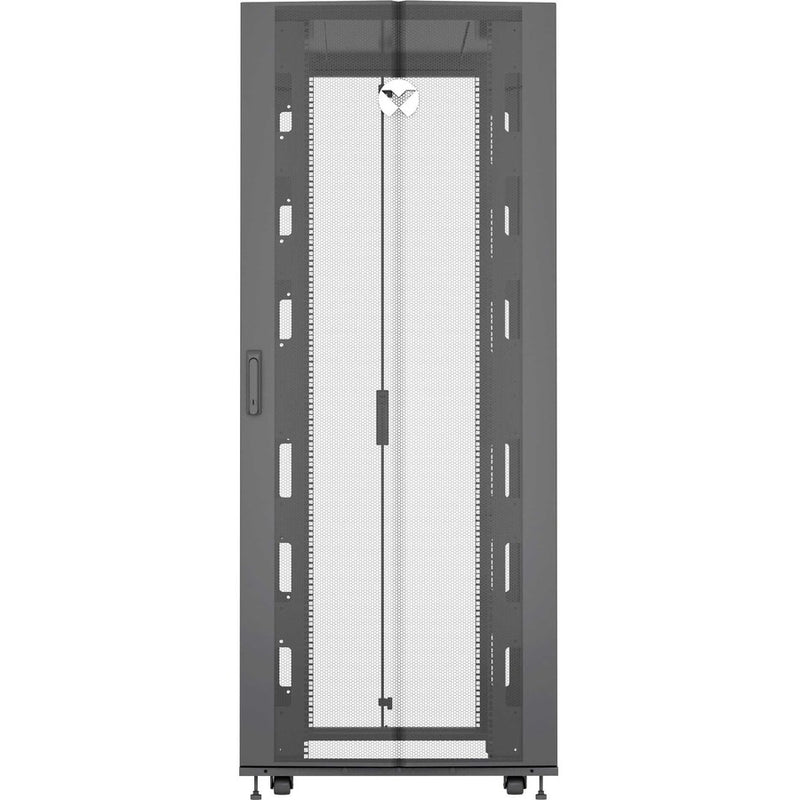

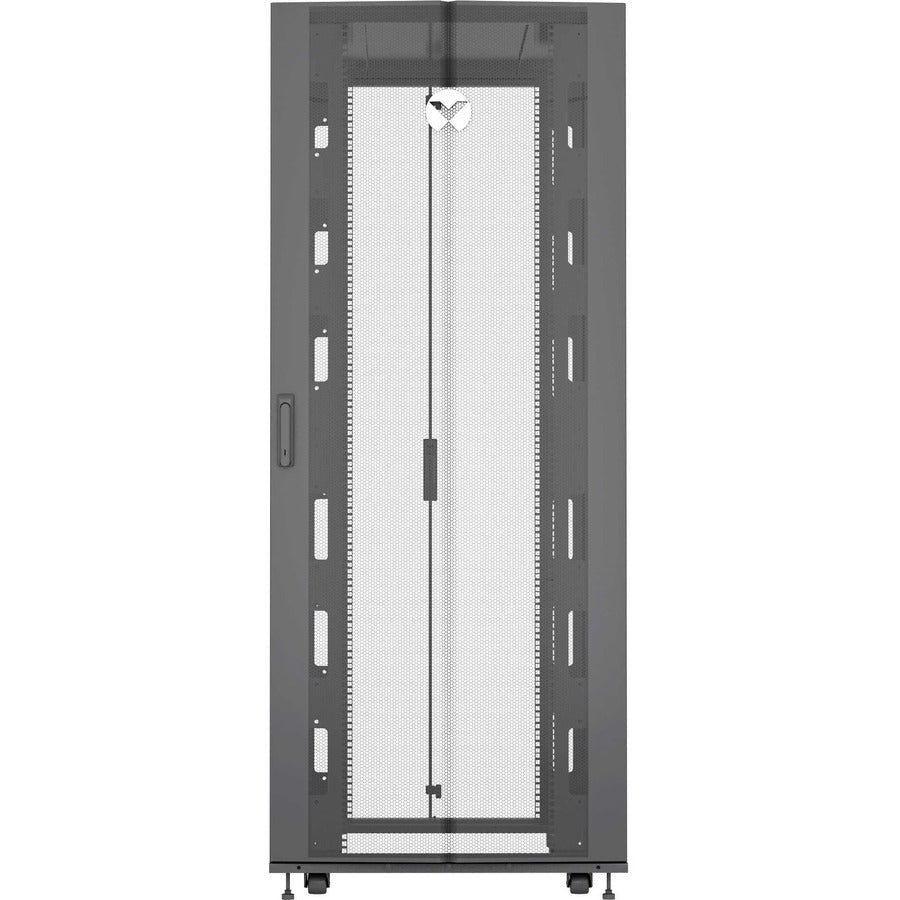

The Vertiv VR3100 is a 42U server rack enclosure designed for high-density IT environments. Measuring 2000mm in height with a 600mm width and 1100mm depth, it delivers robust capacity with superior usability. Constructed with durable steel and a black powder-coated finish, it offers a dynamic load capacity of 2248.72 lb and static capacity of 2998.29 lb, supporting a wide range of equipment including servers, KVM switches, PDUs, LAN switches, routers, and UPS systems.
The Vertiv VR Rack features tool-less installation options, cable management, reversible locking doors, and pre-installed 19" EIA rails for easy mounting. Ideal for both enterprise and edge data centers, this rack is RoHS and REACH compliant and ships factory fresh with all necessary hardware for fast deployment.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | VR3100-031 |
| Product Line | VR |
| Product Type | Rack Cabinet |
| Form Factor | Floor Standing |
| Rack Height | 42U |
| Rack Width | 19" |
| Rack Dimensions (HxWxD) | 78.7" x 23.6" x 43.3" (2000mm x 600mm x 1100mm) |
| Rack Depth (Usable) | 43.90" |
| Dynamic/Rolling Load Capacity | 2248.72 lb |
| Static/Stationary Load Capacity | 2998.29 lb |
| Material | Steel |
| Color | Black |
| Weight | 279.99 lb (approx.) |
| Application | Server, KVM, PDU, LAN Switch, Router, UPS |
| Included Accessories | M6 Cage Nuts & Screws, Baying Hardware, Grommets, Tools |
| Security Features | Locking front door, side panels with slam latches |
| Environmental Compliance | RoHS, REACH |
| Country of Origin | Thailand |
