Description

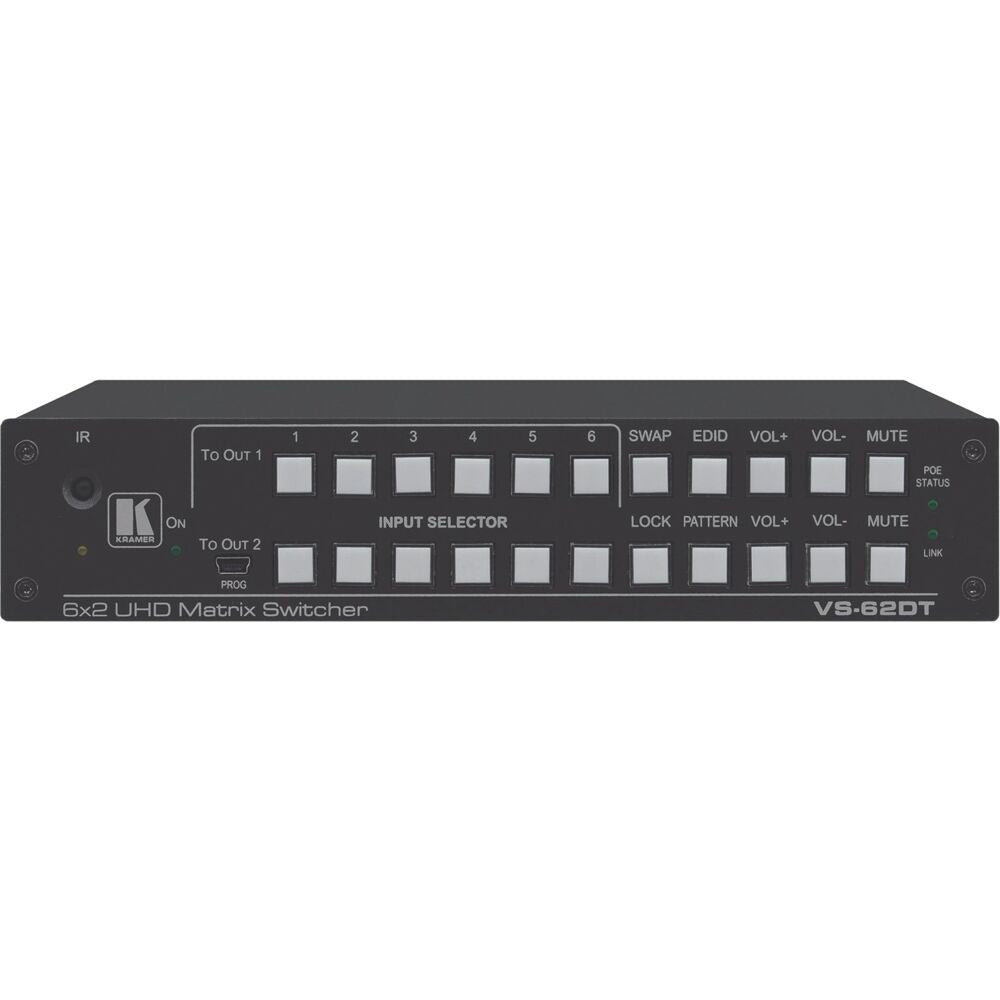

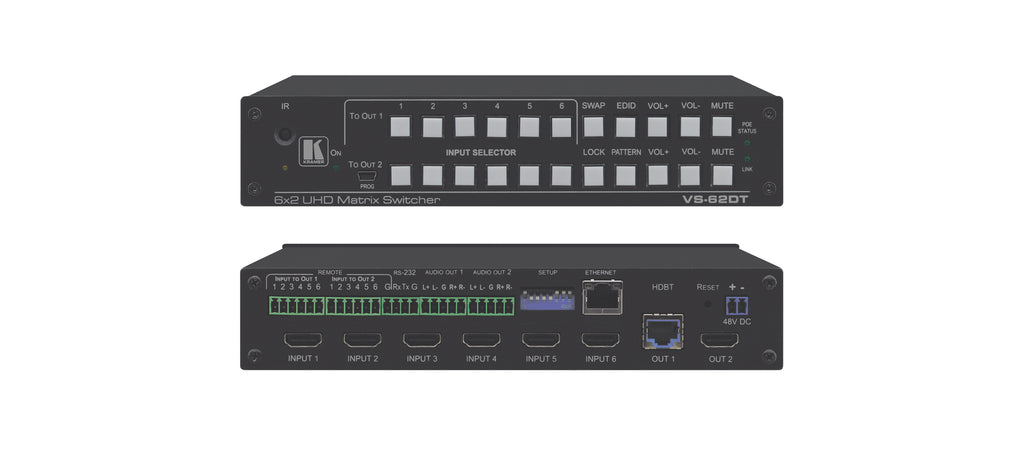

The Kramer VS-62DT is a high-performance 6x2 HDMI/HDBaseT matrix switcher designed for modern AV environments requiring reliable 4K signal routing, long-reach distribution, and flexible control options. Equipped with six HDMI inputs and dual outputs (one HDMI and one HDBaseT), it delivers seamless switching with support for 4K@60Hz (4:2:0) video, advanced audio formats, and industry-standard HDCP 1.4 compliance.
With integrated Power-over-Ethernet (PoE), the VS-62DT powers compatible HDBaseT receivers, simplifying installations and reducing cable clutter. Features such as EDID capture, programmable step-in functionality, true video clock detection, and internal pattern generation ensure robust performance in professional setups. Control is equally versatile—via front-panel buttons, web interface, RS-232, Ethernet, or contact-closure inputs.
Ideal for classrooms, boardrooms, command centers, and digital signage networks, the VS-62DT brings dependable switching and long-distance AV transmission in one compact, easy-to-deploy solution.
| Category | Details |
|---|---|
| Inputs | 6 HDMI connectors |
| Outputs | 1 HDMI; 1 HDBaseT (RJ-45) |
| Ports | Ethernet (RJ-45); 12 contact-closure switches; RS-232 (3-pin terminal); Mini-USB (program port) |
| Analog Audio | 2 balanced stereo audio inputs (5-pin terminal blocks) |
| Max Data Rate | Up to 8.91Gbps (2.97Gbps per graphics channel) |
| Max Resolution | 4K@60Hz (4:2:0), WUXGA |
| Compliance | HDMI standard, HDCP 1.4 |
| Supported Audio | 3D, Deep Color, x.v.Color™, Dolby TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 PCM |
| Baud Rates | 9600, 115200bps |
| Power Consumption | 48V DC, 360mA |
| Control Options | Front panel, RS-232, Ethernet, Web server, remote switches |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| LED Indicators | IR active (red), Power (green) |
| Dimensions (W x D x H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Weight | 1.0 kg (2.3 lbs) |
| Shipping Dimensions | 35.10 × 21.20 × 7.20 cm |
| Shipping Weight | 1.7 kg (3.7 lbs) |
| Included Accessories | Power supply |
