Description
Scalable, High-Performance SAN/NAS Storage for Enterprise & Media Workloads

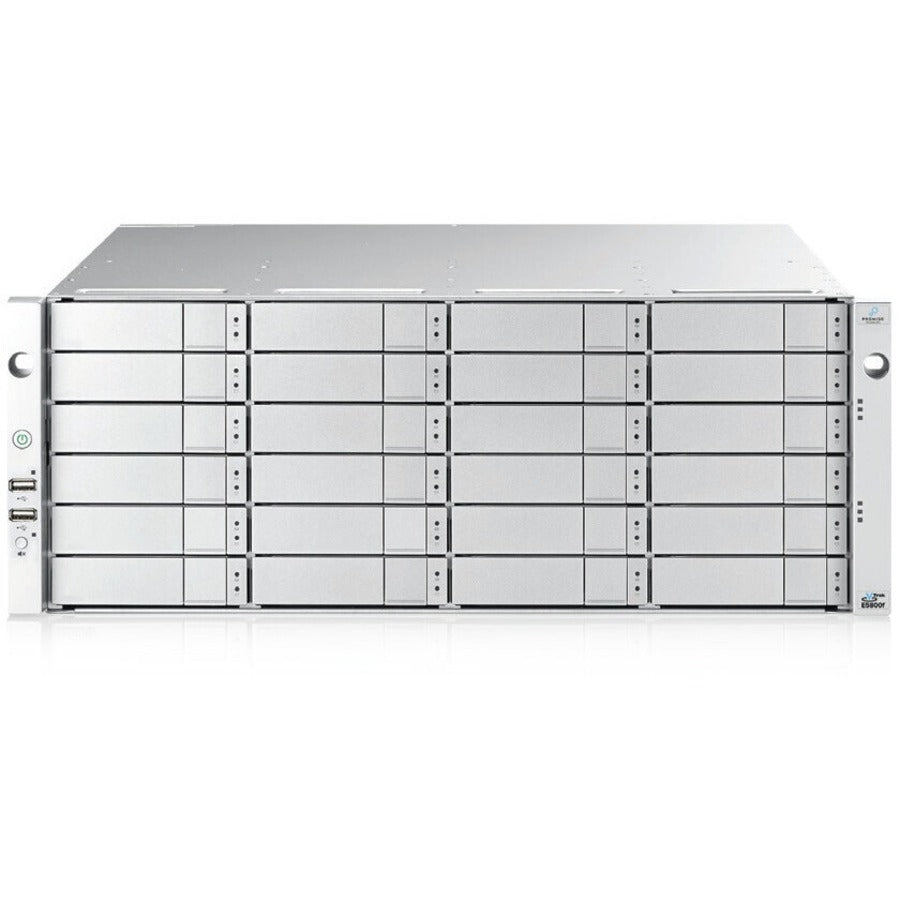

The Promise VTrak D5800xD is a high-capacity, 4U rackmount SAN/NAS unified storage solution designed for businesses handling large-scale data workflows. With 24 pre-installed enterprise-class hard drives totaling 384TB, and support for both 3.5” and 2.5” drives (28 bays total), this system provides unmatched flexibility and scalability.
Powered by dual 12Gb/s SAS controllers and featuring support for a range of RAID levels (0, 1, 5, 6, 10, 50, 60), it is built to deliver superior data protection and performance. Designed for modern IT and video-centric environments, the D5800xD supports 10GbE connectivity and advanced protocols like iSCSI, NFS, CIFS/SMB, FTP, and WebDAV.
Enjoy ultra-fast access to compressed video and large file sets with optional flash cache acceleration and PROMISE intelligent real-time data tiering. With full compatibility for LDAP, Active Directory, and expansion up to petabytes, the VTrak D5800xD is your future-proof enterprise storage solution.
| Category | Details |
|---|---|
| Manufacturer | Promise Technology |
| Model | VTD5800XDX16TU |
| Product Line | VTrak |
| Series | D5000 |
| Product Type | SAN/NAS Unified Storage System |
| Installed HDDs | 24 x Enterprise HDDs (384TB total) |
| Drive Bays (Total) | 28 (24 x 3.5", 4 x 2.5") |
| SSD Supported | Up to 28 SSDs |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Controller Type | Dual 12Gb/s SAS Controllers |
| Network Ports | 2 x RJ-45 (Gigabit Ethernet), Fibre Channel enabled |
| External SAS Ports | 4 |
| Protocols Supported | iSCSI, NFS, CIFS/SMB, FTP, WebDAV |
| Form Factor | 4U Rackmount |
| Dimensions (H x W x D) | 6.9" x 17.6" x 20" |
| Weight | 96.56 lbs (Shipping: 113 lbs) |
| Environmental Compliance | RoHS, WEEE |
| Warranty | 3-Year Limited with PROMISE PSP; optional extended warranty |
| Product Condition | New and Factory Fresh |
