Description

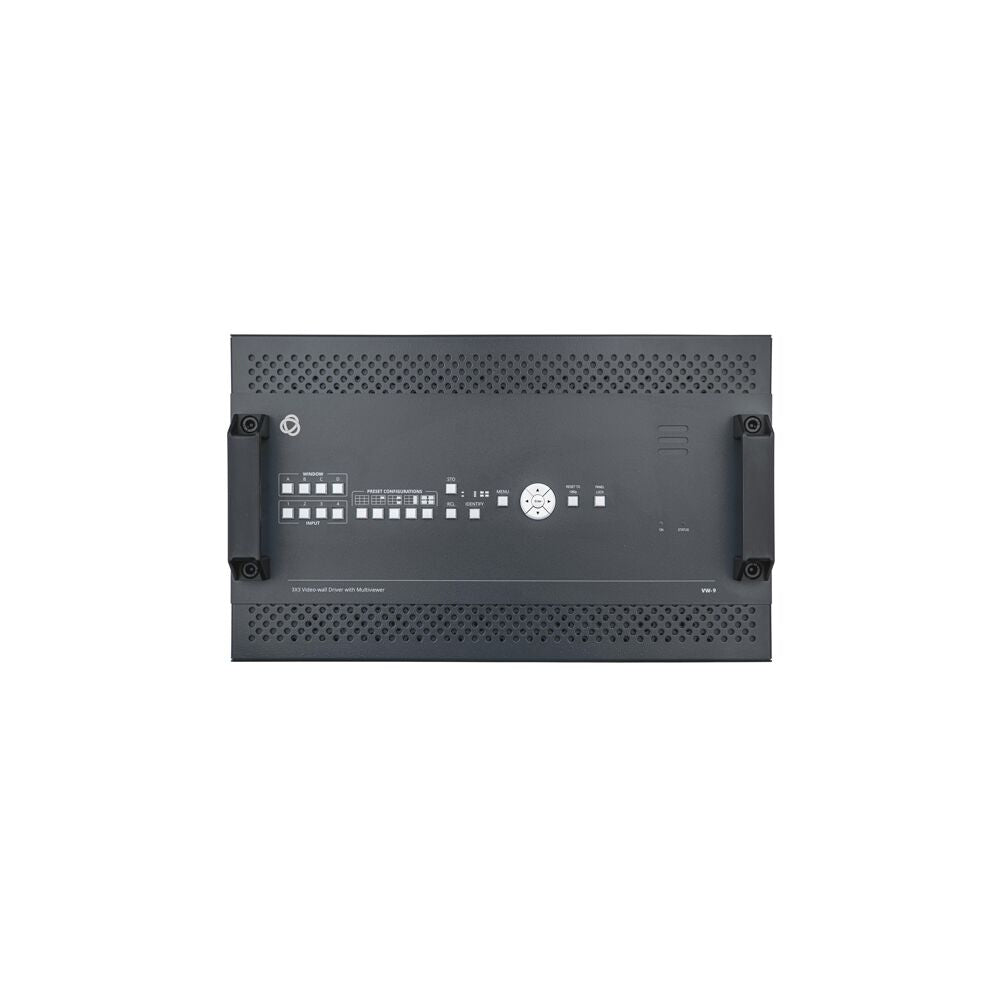

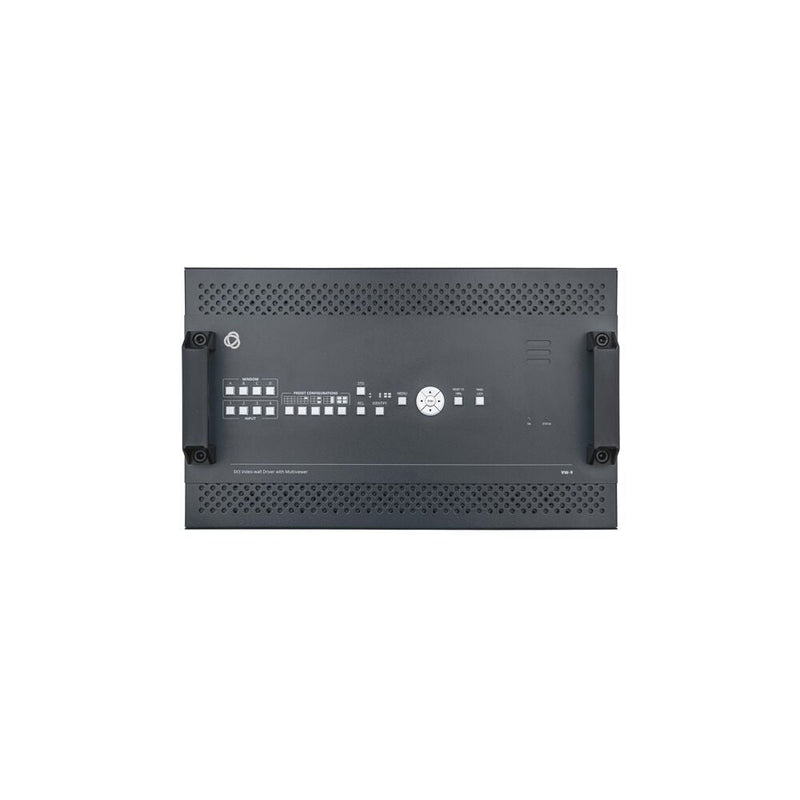

The Kramer VW-9 is a powerful HDMI 2.0 multiview video wall processor designed to drive up to 10 displays in configurations such as 1×10, 2×5, 3×3, 5×2, and more. Engineered for professional AV environments, it delivers ultra-fast switching, 4K60 4:4:4 image processing, and customizable multi-layout display options including PiP, PoP, quad-view, and fully tailored screen arrangements.

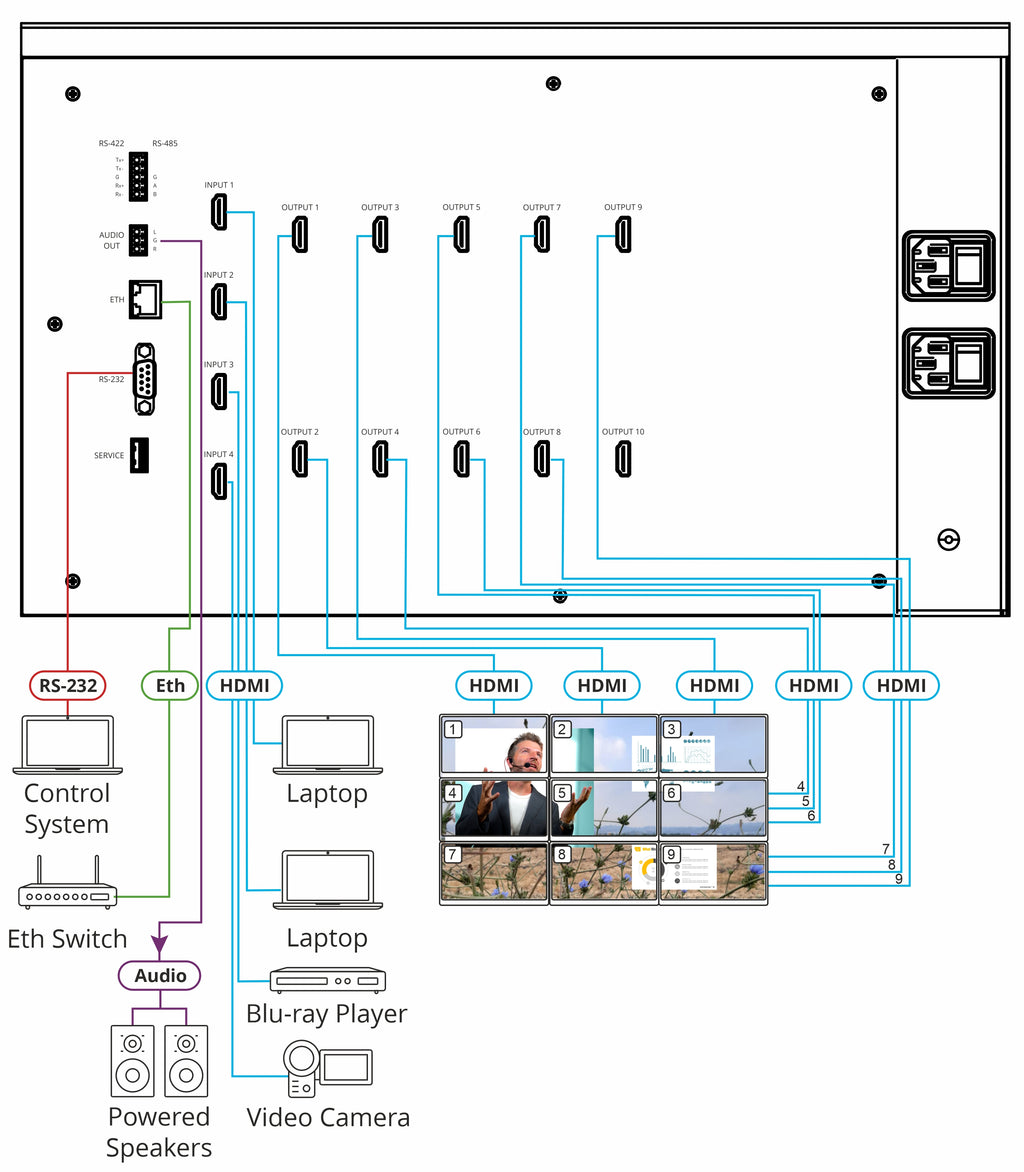

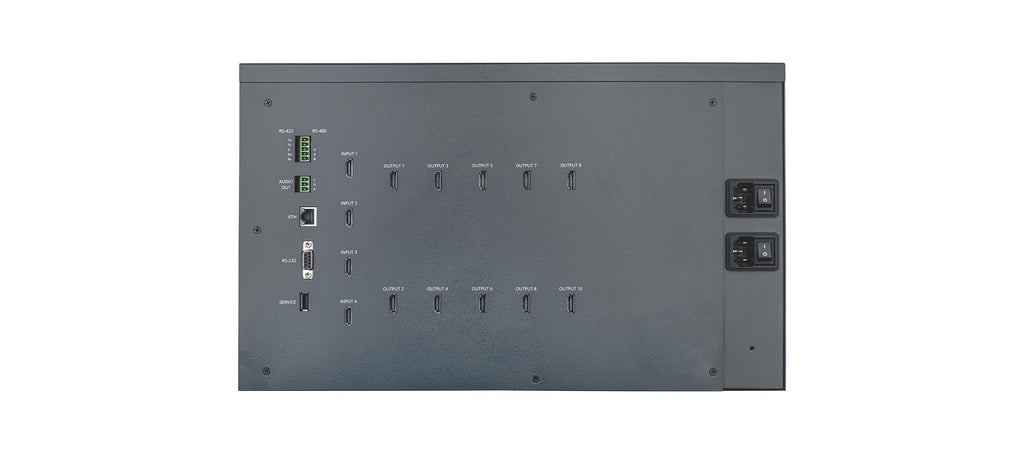

With four HDMI inputs and ten HDMI outputs, the VW-9 scales both up and down to virtually any resolution while maintaining clean, seamless transitions. Advanced features include rotation (90°/270°) for flexible installations, bezel correction, embedded and analog audio output, and robust control via web UI, RS-232, RS-485, RS-422, and Telnet.
Ideal for command centers, broadcast setups, signage arrays, or any multi-display installation requiring reliability and precision, the VW-9 also includes dual redundant power supplies for maximum uptime and mission-critical performance.
| Category | Details |
|---|---|
| Inputs | 4 × HDMI 2.0 |
| Outputs | 10 × HDMI 2.0 |
| Audio Output | 3-pole terminal block, stereo |
| Image Processing – Input Resolutions | Up to 4096×2160p (60/50/24Hz); 3840×2160p (60/50/30/25/24Hz); 2560×1080p; 1920×1080p/i; 1280×720p; 720×480p; 720×576p; 640×480p |
| Chroma Sampling | 4:4:4 (input & output) |
| Output Color Depth | 24 bpp |
| Video Bandwidth | Up to 18 Gbps |
| Output Resolutions | Up to 4096×2160p (60/50Hz); 3840×2160p (various rates); 2048×2048p (57Hz); 1920×1200p; 1920×1080p; 1600×1200p; 1280×720p |
| HDMI Compliance | HDMI 1.4 & HDMI 2.0 |
| HDCP Compliance | HDCP 1.4 & HDCP 2.2 |
| Control Interfaces | RS-232 (D9), RS-485/RS-422 (5-pole TB), Telnet, Ethernet (RJ-45), embedded web UI |
| Power | Dual redundant supplies, 100–240V AC, 50/60Hz, 205VA |
| Environmental – Operating | 0°C to 40°C; 0–80% RH |
| Environmental – Storage | –20°C to 60°C |
| Product Dimensions (W×D×H) | 44.00 × 26.40 × 42.10 cm (17.32" × 10.39" × 16.57") |
| Product Weight | 14.8 kg (32.6 lbs) approx |
| Shipping Dimensions | 49.00 × 35.50 × 49.00 cm (19.29" × 13.98" × 19.29") |
| Shipping Weight | 17.3 kg (38.1 lbs) approx |
