Description

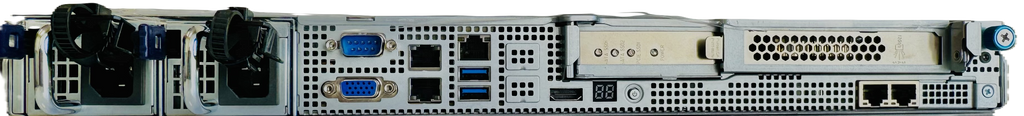

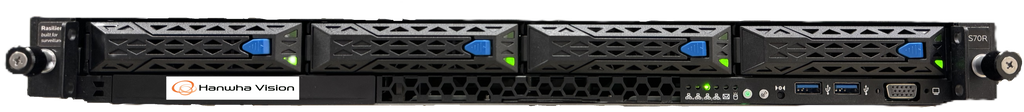

The Hanwha Vision WRR-P-E201L 80TB WAVE Recording Server is a high-performance 1U rackmount VMS appliance designed for professional surveillance environments. Pre-loaded with Wisenet WAVE VMS and built on Ubuntu 22.04 LTS, it delivers robust stability, fast deployment, and exceptional scalability for mid-size to large video systems.
With 470 Mbps recording throughput, support for up to 128 IP channels, and 80TB of raw storage (54TB usable RAID 5), this server ensures reliable long-term video retention using 24/7 duty-cycle drives. Dual 480GB SSD OS drives (RAID 1) provide fast boot times and maximize system resilience.
The Intel® Xeon® platform paired with 16GB DDR4 RAM, hot-swappable drive bays, redundant 450W power supplies, and IPMI management deliver enterprise-grade performance. Each unit includes 4 WAVE Professional licenses, keyboard, mouse, and a sliding rack rail kit with cable management for efficient installation.
This model (E201L) runs Ubuntu, ideal for organizations standardizing on Linux-based VMS infrastructure.
| Category | Specification |
|---|---|
| SKU | WRR-P-E201L-80TB |
| Form Factor | 1U rackmount chassis |
| Operating System | Ubuntu 22.04 LTS |
| Pre-installed VMS | Wisenet WAVE VMS |
| Included Licenses | 4 × WAVE Professional licenses |
| Processor | Intel® Xeon® (E-series) |
| Memory | 16GB DDR4 (2 × 8GB) |
| Recording Throughput | Up to 470 Mbps |
| Channel Support | Up to 128 IP channels |
| OS Drives | 2 × 480GB SSD (RAID 1) |
| Data Storage | 80TB raw; ~54TB usable (RAID 5) |
| Data Drive Bays | 4 × 3.5" front hot-swappable |
| Network Interfaces | 2 × RJ45 1GbE (default) |
| USB Ports | 2 × USB 3.2 (front), 2 × USB 3.2 (rear) |
| Video Output | HDMI & VGA |
| Other Ports | Serial port |
| Management | IPMI remote management |
| Rail Kit | Included (with cable management arm) |
| Keyboard & Mouse | Included |
| Power Supplies | Dual 450W 80 Plus Platinum (redundant) |
| Power Input | 100–240 VAC |
| Heat Dissipation | Max 1725 BTU/hr |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Operating Humidity | 10%–80% RH |
| Storage Temperature | −40°F to 158°F (−40°C to 70°C) |
| Certifications | BSMI, CE, FCC Class A, UL/cUL equivalent |
| Dimensions (W × D × H) | 17.3" × 19.6" × 1.7" (440 × 498 × 44 mm) |
| Weight | 50 lbs (23 kg), without HDDs |
