Description

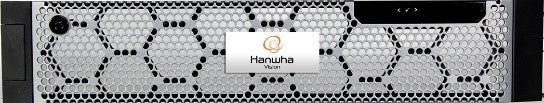

The Wisenet WRR-P-S204W-112TB is a powerful 2U rackmount WAVE Recording Server engineered for medium-to-large surveillance deployments requiring high performance, scalability, and reliability. Pre-loaded and pre-configured with Wisenet WAVE VMS, the server supports up to 256 IP channels, making it ideal for enterprise-level security environments.
This model provides 112TB of raw storage using 24/7-duty-cycle SAS drives, with effective capacities depending on RAID configuration. A dedicated SSD array (RAID 1) ensures fast OS and application performance, while the Intel Xeon processor and 16GB DDR4 RAM support sustained, high-bandwidth recording up to 1200 Mbps.
Designed for stability and uptime, the server includes redundant 800W power supplies, hot-swappable drive bays, sliding rack rails, and IPMI remote management. With a 5-year Next Business Day Keep-Your-Drive warranty, this system delivers long-term peace of mind and enterprise-grade reliability.
| Category | Details |
|---|---|
| SKU | WRR-P-S204W-112TB |
| Form Factor | 2U rackmount chassis |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Processor | Intel Xeon (per datasheet series spec) |
| Memory | 16GB DDR4 (1×16GB) |
| Recording Throughput | Up to 1200 Mbps |
| Included VMS | Wisenet WAVE VMS (pre-installed) |
| Included Licenses | 4× WAVE Professional licenses |
| Data Storage | 112TB raw capacity |
| Effective Storage (RAID 5/RAID 6) | 87TB / 72TB |
| Data Drive Bays | 12 × 3.5" front hot-swappable bays |
| OS Drives | 2 × 480GB SSD (RAID 1, internal) |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 |
| Network Interfaces | 4 × RJ-45 Gigabit Ethernet (default) |
| Ports | Front: 1× USB 2.0; Rear: 1× USB 2.0, 1× USB 3.0, Serial |
| Video Outputs | As supported by WAVE interface (per series configuration) |
| Remote Management | IPMI supported |
| Cooling / Thermal | Max 3000 BTU/hr |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity | 5%–95% RH, max 27°C dew point |
| Power Supply | Dual 800W, 80 Plus Platinum |
| Power Input | 100–240 VAC |
| Dimensions (W×D×H) | 482 mm × 772.13 mm × 86.8 mm (18.97" × 30.39" × 3.41") |
| Weight | 53.3 lbs (25.1 kg), without HDDs |
| Accessories Included | Keyboard, mouse, sliding rail kit with cable management arm |
| Camera Compatibility | Wisenet & ONVIF conformant IP cameras |
| Max Channels Supported | Up to 256 channels |
| Warranty | 5-Year NBD, On-Site, Keep-Your-Drive |
