Description

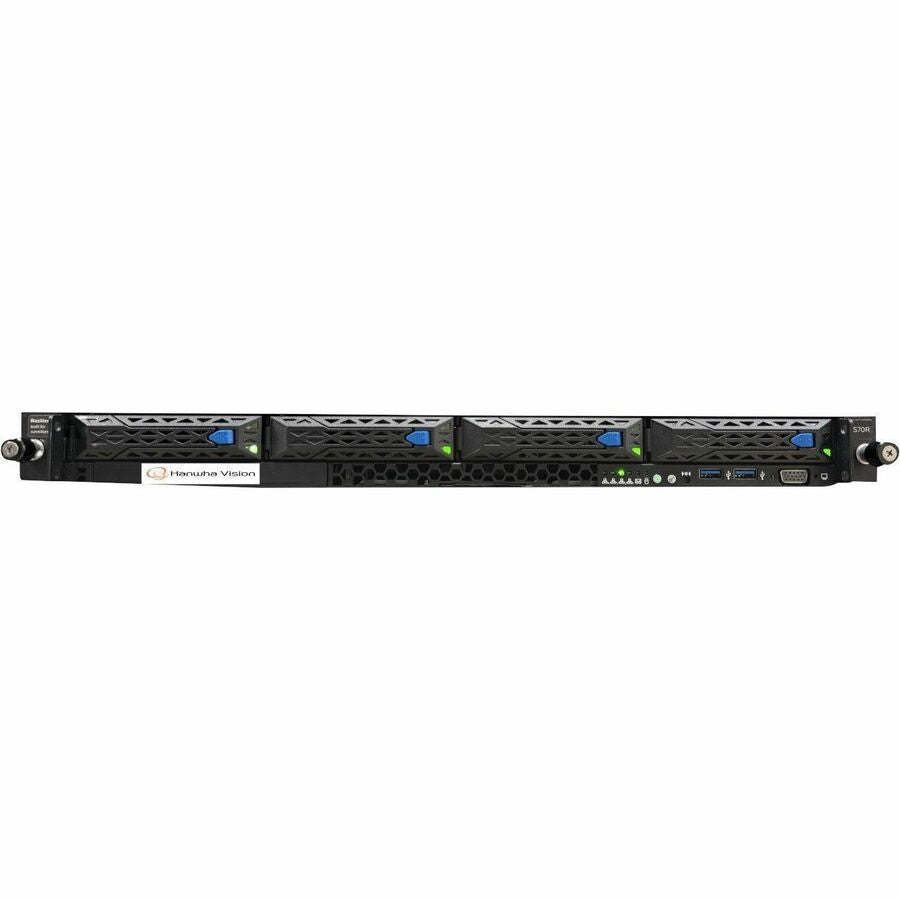

The Wisenet WRR-P-E201W is a high-performance 1U WAVE Recording Server engineered for medium to large surveillance deployments requiring reliability, throughput, and long-term scalability. Pre-loaded with Wisenet WAVE VMS and bundled with four Professional licenses, it enables rapid deployment with minimal setup.
Powered by an Intel Xeon E2356G processor, 16GB DDR4 RAM, and dual 480GB SSDs in RAID 1 for the operating system, this server ensures consistent speed and system stability. It supports up to 80TB of raw storage (54TB usable in RAID 5) across four hot-swappable drive bays, providing 24/7 duty-cycle video-optimized performance.
With 470 Mbps recording throughput, redundant 450W power supplies, dual 1GbE network interfaces, and display outputs including HDMI and VGA, the WRR-P-E201W delivers dependable performance for mission-critical video surveillance environments. A sliding rail kit, keyboard, and mouse are included for seamless installation.
| Category | Specification |
|---|---|
| SKU | WRR-P-E201W-80TB |
| Form Factor | 1U rackmount chassis |
| Processor | Intel Xeon E2356G |
| Memory | 16GB DDR4 (2 × 8GB) |
| Operating System | Windows IoT Enterprise LTSC 2024 |
| VMS Software | Wisenet WAVE pre-installed |
| Included Licenses | 4 × WAVE Professional licenses |
| RAW / Usable Storage | 80TB raw / 54TB usable (RAID 5) |
| Drive Bays (Data) | 4 × 3.5" hot-swappable |
| Drive Bays (OS) | 2 × 480GB SSD (RAID 1) |
| Recording Throughput | Up to 470 Mbps |
| RAID Support | RAID 0 / 1 / 5 / 6 / 10 + 512MB NV cache |
| Network Interfaces | 2 × 1GbE RJ45 |
| Video Outputs | HDMI, VGA |
| USB Ports | 2 × USB 3.2 (front), 2 × USB 3.2 (rear) |
| Other Ports | Serial port |
| Management | IPMI remote management |
| Power Supply | Dual redundant 450W (80 Plus Platinum) |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Operating Humidity | 10%–80% RH |
| Heat Dissipation | Up to 1,725 BTU/hr |
| Dimensions (WxDxH) | 17.3" × 19.6" × 1.7" (440 × 498 × 44 mm) |
| Weight | 50 lbs (without HDDs) |
| Included Accessories | Sliding rail kit with cable management arm, keyboard, mouse |
