Description

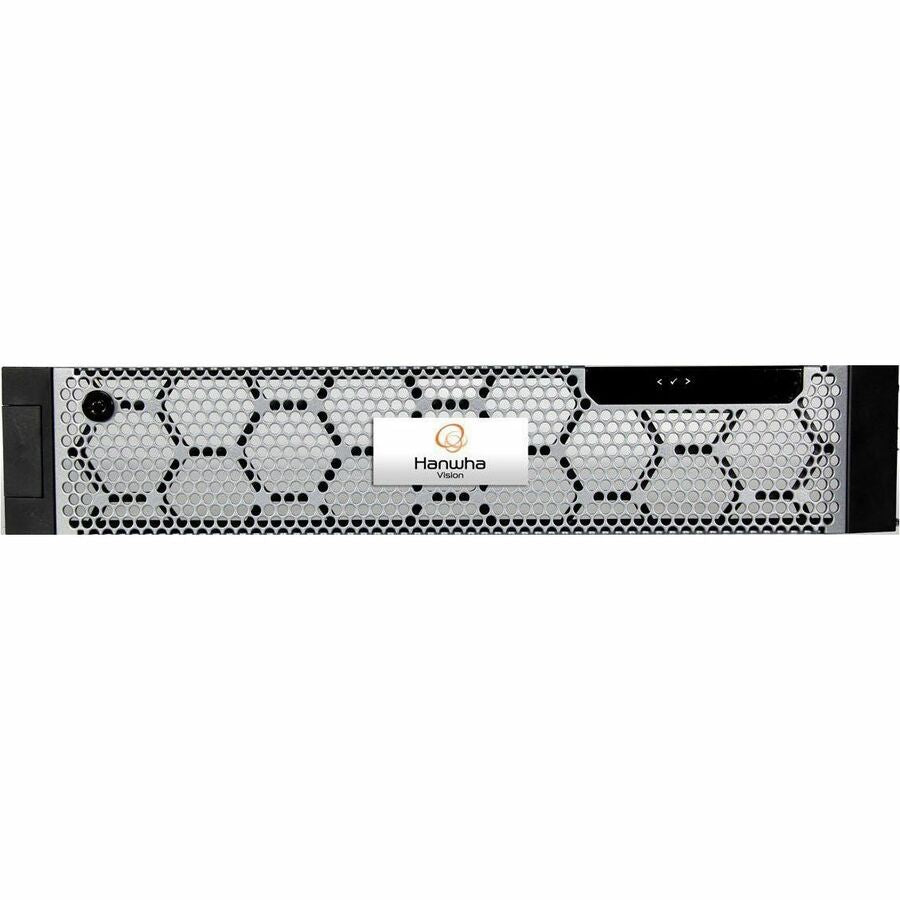

The Wisenet WRR-P-S204W-240TB is a powerful 2U rackmount WAVE Recording Server designed for large-scale, multi-site IP video deployments. Preloaded with the Wisenet WAVE VMS and bundled with 4 Professional licenses, it enables fast and efficient setup while supporting up to 256 IP camera channels across distributed locations. Equipped with 240TB of 24/7-duty-cycle, video-optimized storage and dual SSDs in RAID 1 for the operating system, this server ensures high-performance video recording and reliable long-term retention.
With up to 1200 Mbps recording throughput, remote management through IPMI, and flexible network connectivity options—either four 1GbE ports or an upgraded mix of 1GbE and 10GbE SFP interfaces—the WRR-P-S204W-240TB provides enterprise-grade scalability. The Windows IoT LTSC platform enables stable, long-life performance for mission-critical surveillance environments.
This server includes redundant 800W power supplies, sliding rack rails with cable management, USB ports for fast data access, and is built for dependable operation in commercial and industrial security installations.
| Category | Details |
|---|---|
| SKU | WRR-P-S204W-240TB |
| Form Factor | 2U rackmount chassis |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Video Management System | Wisenet WAVE VMS (preloaded) |
| Included Licenses | 4 × WAVE Professional licenses |
| Processor | Intel® Xeon® (latest generation, per datasheet) |
| Memory | 16GB DDR4 (1 × 16GB) |
| OS Drives | 2 × 480GB SSD (RAID 1, internal) |
| Data Storage | 240TB raw (12 × 3.5" hot-swap bays) |
| Effective Storage | 240TB raw / 200TB (RAID 5) / 182TB (RAID 6) |
| Recording Bandwidth | Up to 1200 Mbps |
| Network Interfaces (Default) | 4 × RJ45 1GbE |
| Optional Network Interfaces | 2 × RJ45 1GbE + 2 × 10GbE SFP |
| USB Ports | Front: 1 × USB 2.0 • Rear: 1 × USB 2.0, 1 × USB 3.0 |
| Video Outputs | Supported (model dependent) |
| Ports | Serial port included |
| Included Accessories | Sliding rack rail + cable arm, keyboard, mouse |
| Power Supply | Dual 800W, 80 Plus Platinum (redundant) |
| Heat Dissipation | Up to 3000 BTU/hr |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity | 5%–95% RH, max 27°C (80.6°F) dew point |
| Storage Temperature | –40°C to 65°C (–40°F to 149°F) |
| Certifications | UL, NOM, RoHS, TUV, GS |
| Dimensions (W × D × H) | 18.97" × 30.39" × 3.41" (482mm × 772.13mm × 86.8mm) |
| Weight | 53.3 lbs (25.1 kg, without HDDs) |
