Description

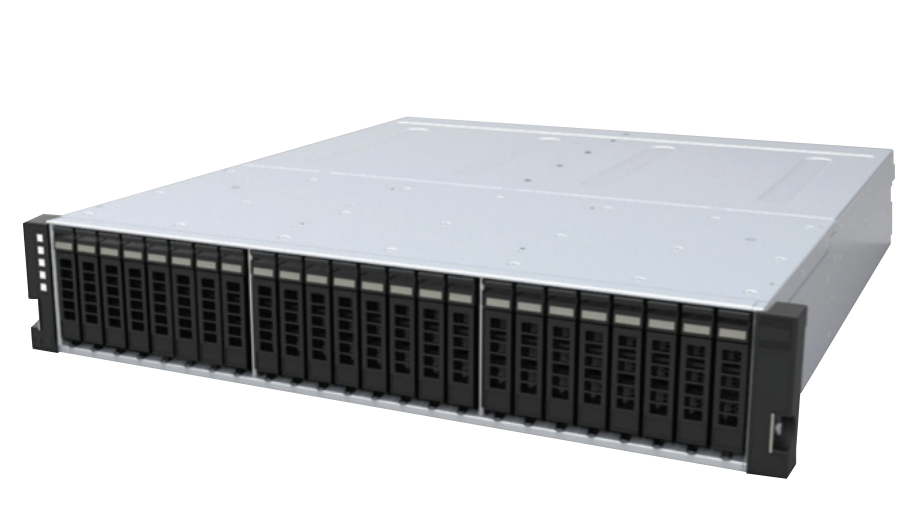

High-Performance 2U Flash Storage for Enterprise and Cloud
The WD Ultrastar 1ES1610 SE2U24-24 is a high-density 2U flash storage platform designed for enterprise-grade software-defined storage (SDS) environments. Preconfigured with 24x 6.4TB SAS SSDs, this platform delivers exceptional throughput—up to 4.7M IOPS and 23 GB/s bandwidth—with ultra-low latency of under 1ms. With 153.6TB of total capacity, it provides scalable, reliable, and hot-swappable flash storage, ideal for virtualization, databases, and scale-out architectures.
Designed for flexibility and serviceability, it features 1+1 hot-swappable power supplies, 1+1 I/O modules, and front-accessible SSD bays. Equipped with Mini-SAS HD host interface (3 ports per IOM), it ensures easy integration into high-performance data center environments.
| Feature | Details |
|---|---|
| Model Number | 1ES1610 |
| Form Factor | 2U Rackmount |
| Drive Bays | 24 x 2.5" SAS SSDs (hot-swappable) |
| SSD Capacity (Each) | 6.4TB (SAS, 3DWPD) |
| Total Raw Capacity | 153.6TB |
| Drive Interface | 12Gb/s SAS |
| Host Interface | 2x I/O Modules, 3x Mini-SAS HD ports each |
| Performance | 4.7M IOPS, 23GB/s read/write, <1ms latency |
| Power Supply | 1+1 Redundant 600W, 80+ Gold Certified |
| Cooling | 3 fan modules per PSU, front-to-rear flow |
| Management | SCSI Enclosure Services (SES) |
| LED Indicators | Power, ID, Fault (front/rear); Drive Activity |
| Dimensions (H x W x D) | 87.4mm x 446mm x 536mm |
| Weight | 23.7kg (with 24 SSDs) |
| Operating Temperature | 5°C to 40°C |
| Warranty | 5-Year Limited |
