Description
The Edgecore Wedge100-32X-O-AC-F-UK is a 1RU, 32-port 100 GbE Top-of-Rack switch designed for hyperscale and web-scale data centers.
Based on Facebook’s Open Compute Project (OCP) Wedge 100 platform, it delivers 3.2 Tbps of non-blocking throughput powered by the Broadcom BCM56960 Tomahawk ASIC and an Intel Atom E3800 CPU subsystem.

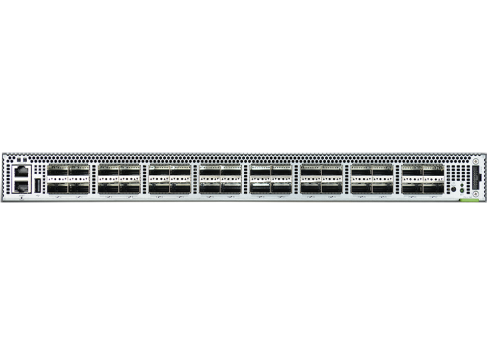

Ideal for open-networking environments, the Wedge100-32X supports 32 QSFP28 ports, each configurable as 1 × 100 GbE / 40 GbE, or via breakout as 4 × 25 GbE / 4 × 10 GbE / 2 × 50 GbE.

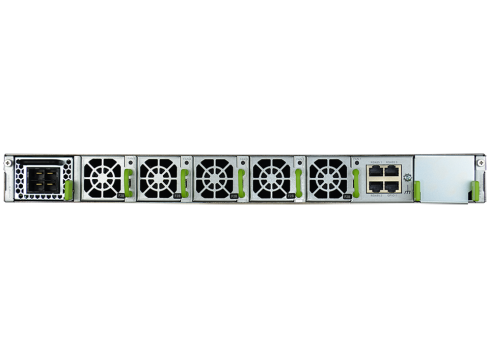

It features redundant, hot-swappable AC power supplies, 4 + 1 hot-swappable fans, and front-to-back airflow for efficient cooling.
Pre-loaded with ONIE, it supports flexible network operating systems such as Open Network Linux, SnapRoute FlexSwitch, Cumulus Linux 3.4+, and open-source FBOSS Agent—delivering full Layer 2/Layer 3 functionality, analytics, and OCP integration.
| Category | Specification |
|---|---|
| Model | Wedge100-32X-O-AC-F-UK |
| Device Type | 100 GbE Data Center Switch |
| Ports | 32 × QSFP28 ports (100 GbE / 40 GbE / 4×25 GbE / 4×10 GbE / 2×50 GbE) |
| Switching Capacity | 3.2 Tbps full duplex |
| Forwarding Rate | 4.7 Bpps |
| Processor | Intel Atom E3800 x86 CPU (COM-E module) |
| Switch ASIC | Broadcom BCM56960 Tomahawk |
| System Memory | 8 GB DDR3 ECC SO-DIMM @ 1600 MHz |
| Storage | 2 × SATA 2.0 interfaces |
| Packet Buffer | 16 MB integrated |
| Jumbo Frame | Up to 9216 bytes |
| Management Ports | 1 × RJ-45 serial console, 2 × RJ-45 1G management, 1 × USB Type-A |
| Airflow Direction | Front (port) → Back (power) |
| Cooling | 4 + 1 redundant hot-swappable fans |
| Power Supplies | 2 × hot-swappable AC PSUs (120–240 V AC, 93% efficiency) |
| Typical Power Consumption | 436 W |
| Dimensions (W × D × H) | 44 × 50.7 × 4.4 cm (17.32 × 19.97 × 1.73 in) |
| Weight | 8.8 kg (19.56 lb) |
| Operating Temp. | 0 °C – 45 °C (32 °F – 113 °F) |
| Operating Humidity | 10 % – 90 %, non-condensing |
| Regulatory Compliance | CE Mark, FCC Class A, UL/CUL, CB, RoHS-6 Compliant |
| Software Environment | Pre-loaded with ONIE and OpenBMC; supports FBOSS, Open Network Linux, SnapRoute FlexSwitch, Cumulus Linux 3.4 and later |
| Rack Compatibility | 19" Rack or 21" Open Rack (with Open Rack Switch Adapter) |
| Warranty | Standard Edgecore Limited Warranty (Region-specific) |
| Country SKU | UK power cord version |
