Description

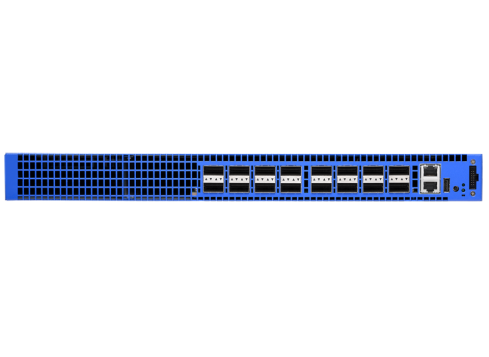

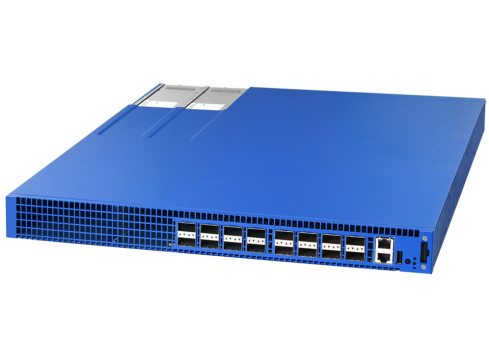

The Edgecore Wedge-16X-DC is a high-performance open networking switch designed for data center and cloud infrastructure environments. Featuring 16 high-speed QSFP+ 40GbE ports, this switch delivers exceptional throughput, scalability, and reliability for next-generation network architectures.
Built to meet open hardware standards, the Wedge-16X-DC integrates seamlessly into disaggregated network designs and supports software-defined networking (SDN) deployments. The DC-powered model ensures flexible power integration within telco or hyperscale environments requiring -48VDC input.

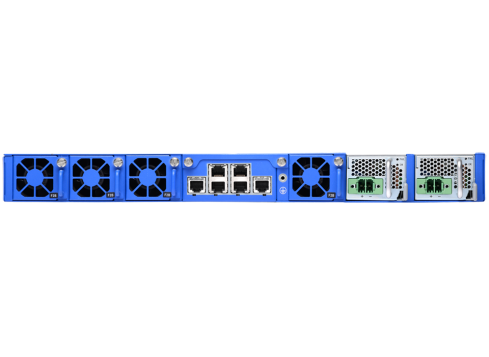

Designed for efficiency and uptime, it includes dual hot-swappable DC power supplies, redundant fans, and supports both optical and copper QSFP+ connections. Combined with Edgecore’s robust hardware engineering and open-source compatibility, the Wedge-16X-DC provides a reliable foundation for scalable, software-driven data centers.
| Category | Specification |
|---|---|
| Model | Edgecore Wedge-16X-DC |
| Device Type | 40GbE Data Center Switch |
| Ports | 16 × QSFP+ 40GbE |
| Management Port | 1 × RJ-45 10/100/1000BASE-T |
| Form Factor | 1RU Rack-mountable |
| Switching Capacity | 1.28 Tbps (line-rate, non-blocking) |
| Forwarding Rate | Up to 960 Mpps |
| CPU | Intel x86 Processor |
| Memory | 8 GB DDR3 |
| Flash Storage | 8 GB |
| Airflow | Front-to-Back or Back-to-Front (varies by SKU) |
| Power Supply | Dual hot-swappable DC PSUs |
| DC Input Range | -42 to -72 VDC, 6A maximum |
| Power Consumption | 282W maximum |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × D × H) | 442 × 617 × 44 mm (17.40 × 24.29 × 1.73 in) |
| Weight | 9.85 kg (21.72 lb) |
| Certifications | CE, FCC Class A, VCCI Class A, EN 55022/55024, IEC 60950-1 |
