Description
The Edgecore Wedge100BF-32QS-O-AC-F-US is a high-performance Top-of-Rack (ToR) or spine switch built for modern data centers. Powered by the Intel® Xeon® D-1548 (8-core) CPU and Intel® Tofino™ programmable switch silicon, this open network platform delivers 6.4 Tbps line-rate L2/L3 switching across 32 QSFP28 ports, each supporting 40/100 GbE connections and breakout options for 4 × 25 GbE, 2 × 50 GbE, or 4 × 10 GbE.

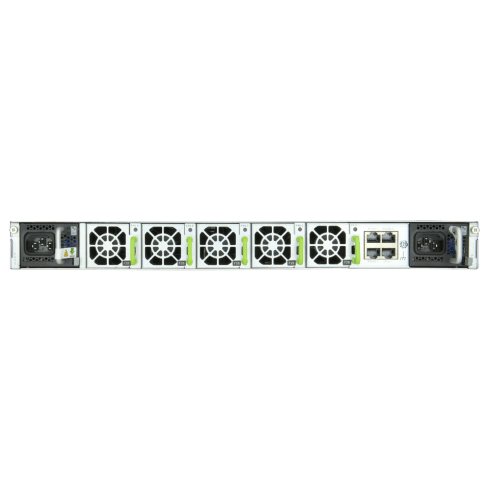

With its 1RU rackmount design, redundant dual AC power supplies, and five hot-swappable fans, the Wedge100BF-32QS ensures high availability and efficient cooling. Supporting port-to-power airflow, it fits seamlessly into data center rack configurations. Pre-installed with the Open Network Install Environment (ONIE), it allows automated deployment of open-source or commercial Network Operating Systems (NOS).
| Specification | Details |
|---|---|
| Model | Edgecore Wedge100BF-32QS-O-AC-F-US |
| Form Factor | 1RU rack-mountable |
| Switch Type | Open Network Data Center Switch |
| CPU | Intel® Xeon® D-1548, 8 cores, 2.0 GHz |
| Memory | 48 GB SO-DIMM |
| Storage | 2 TB SSD (TLC) |
| Switch Silicon | Intel® Tofino™ BFN-T10-032Q |

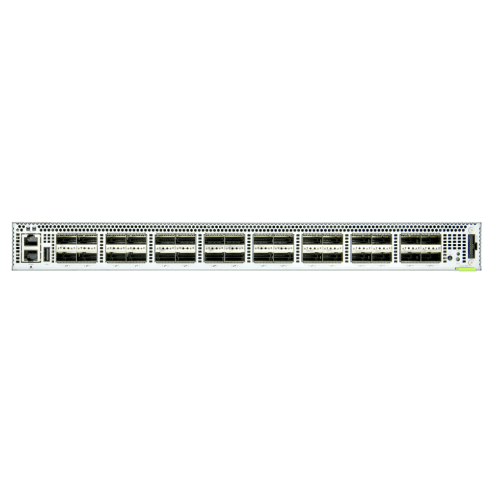

| Ports | 32 × QSFP28 (each supporting 1 × 100 GbE or 1 × 40 GbE; breakout to 4 × 25 GbE, 2 × 50 GbE, or 4 × 10 GbE) |
| Management Interfaces | 1 × RJ-45 serial console, 1 × RJ-45 1G BASE-T management, 1 × USB Type A storage |
| Switching Capacity | 6.4 Tbps (full duplex) |
| Forwarding Rate | 4.7 Bpps |
| Packet Buffer Size | 20 MB integrated buffer |
| Jumbo Frames | Up to 9216 bytes |
| Airflow | Port-to-Power |
| Cooling | 5 × hot-swappable, redundant fans |
| Power Supply | Dual hot-swappable, load-sharing AC PSUs |
| Input Voltage | 90–240 VAC, 50–60 Hz |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | −40 °C – 70 °C (−40 °F – 158 °F) |
| Operating Humidity | 0% – 95% non-condensing |
| Dimensions (W × D × H) | 440 × 509 × 44 mm (17.32 × 20.03 × 1.73 in) |
| Weight | 10.0 kg (20.05 lb) |
| Regulatory Compliance | FCC Part 15 Subpart B Class A |
| Software Environment | ONIE (Open Network Install Environment) pre-loaded |
| LED Indicators | Port link/activity/rate, system diagnostic, locator, PSU and fan status |
| Warranty | 3-year hardware warranty |
