Description
The Edgecore Wedge100BF-32X-O-AC-F-US is a 32-port 100 GbE bare-metal data center switch designed for high-performance Top-of-Rack (ToR) and spine deployments. Built around Barefoot Networks’ Tofino programmable switch silicon, it delivers up to 3.2 Tbps switching capacity and 4.7 billion packets per second of forwarding performance.
This open-networking platform supports ONIE (Open Network Install Environment) for the installation of compatible network operating systems, including SONiC and Open Network Linux, allowing operators to build scalable, disaggregated network fabrics.
The switch features dual hot-swappable AC power supplies, redundant fans with port-to-power airflow, and a compact 2RU rack-mount form factor optimized for hyperscale and enterprise data centers.
| Category | Specification |
|---|---|
| Model Number | Wedge100BF-32X-O-AC-F-US |

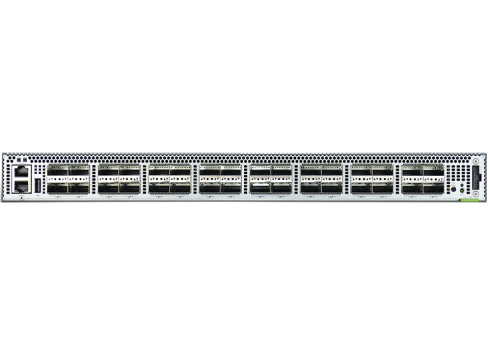

| Ports | 32 × QSFP28 ports (each supporting 1×100 GbE, 1×50 GbE, 1×40 GbE, or breakout to 4×25 GbE/10 GbE) |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 1G BASE-T management, 1 × USB Type A storage |
| Switch Silicon | Barefoot Tofino programmable ASIC |
| CPU Module | Intel Broadwell-DE Pentium D-1517 |
| System Memory | 4 / 8 / 16 GB DDR4 SO-DIMM |
| Storage | 16 MB SPI Flash, 8 GB NAND Flash, 32 GB M.2 SSD |
| Switching Capacity | 3.2 Tbps (full duplex) |
| Forwarding Rate | 4.7 Bpps |
| Packet Buffer | 22 MB integrated buffer |
| Jumbo Frame Support | Up to 9216 bytes |
| Airflow Direction | Port-to-Power |

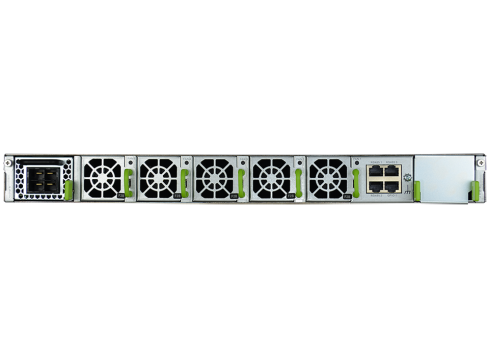

| Cooling | 5 × hot-swappable redundant fans |
| Power Supply | Dual AC, hot-swappable, load-sharing (90–240 VAC, 50–60 Hz) |
| Dimensions (WxDxH) | 509 × 440 × 44 mm (20.03 × 17.32 × 1.73 in) |
| Weight | 10.0 kg (22.05 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 0 – 95 % non-condensing |
| Compliance | CE, FCC Class A, UL, CSA, RoHS-6 Compliant |
| Software Support | ONIE software installer; compatible with SONiC and ONL |
| Noise Level | 62 dB @ 27 °C |
| Form Factor | 2RU rack-mountable |
| Region / Power Cord | North America |
| UPC | 662698609011 |
| Warranty | Standard Edgecore limited hardware warranty |
