Description
The Samsung WE65FX is a 65-inch UHD interactive display designed for meeting rooms, collaboration spaces, classrooms, and BYOD-driven environments. Its 4K resolution, IPS panel, Direct LED backlighting, and wide 178° viewing angle deliver clear visuals for presentations, annotations, and shared content.
Built with IR touch technology, front-facing connectivity, USB-C, HDMI, OPS support, and included passive touch pens, the WE65FX gives teams a flexible display solution for interactive work. Its Non-OS design supports external device workflows, while the annotation mode allows users to write notes seamlessly over displayed content.
| Specification | Details |
|---|---|
| Brand | Samsung |
| Product Type | UHD Interactive Touch Display |
| Series | WEFX |
| Model | WE65FX |
| Display Size | 65 inches |
| Screen Diagonal | 163.83 cm |
| Resolution | 3840 x 2160 UHD |
| Display Orientation | Landscape |
| Panel Technology | IPS Panel |
| Backlight Technology | Direct LED |
| Brightness | 350 cd/m² typical without glass |
| Contrast Ratio | 1200:1 typical without glass |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Viewing Angle | 178° horizontal / 178° vertical |
| Haze Value | 25% without glass |
| Operating Usage | Designed for 16/7 operation |
| Touch Capability | Interactive touch-enabled display |
| Touch Technology | IR Touch |
| Multi-Touch Support | Up to 40-point touch with external Windows device and up to 20-point touch with SoC |
| Touch Response Time | Less than 10 ms touch overlay response |
| Touch Latency | 90 ms |
| Included Pen Type | Passive touch pens included |
| Operating System | Non-OS Linux Kernel design |
| Processor | ARM Cortex A55 Quad Core |
| Memory | 2 GB RAM |
| Internal Storage | 32 GB eMMC |
| Graphics | ARM Mali-G52 MP2 |

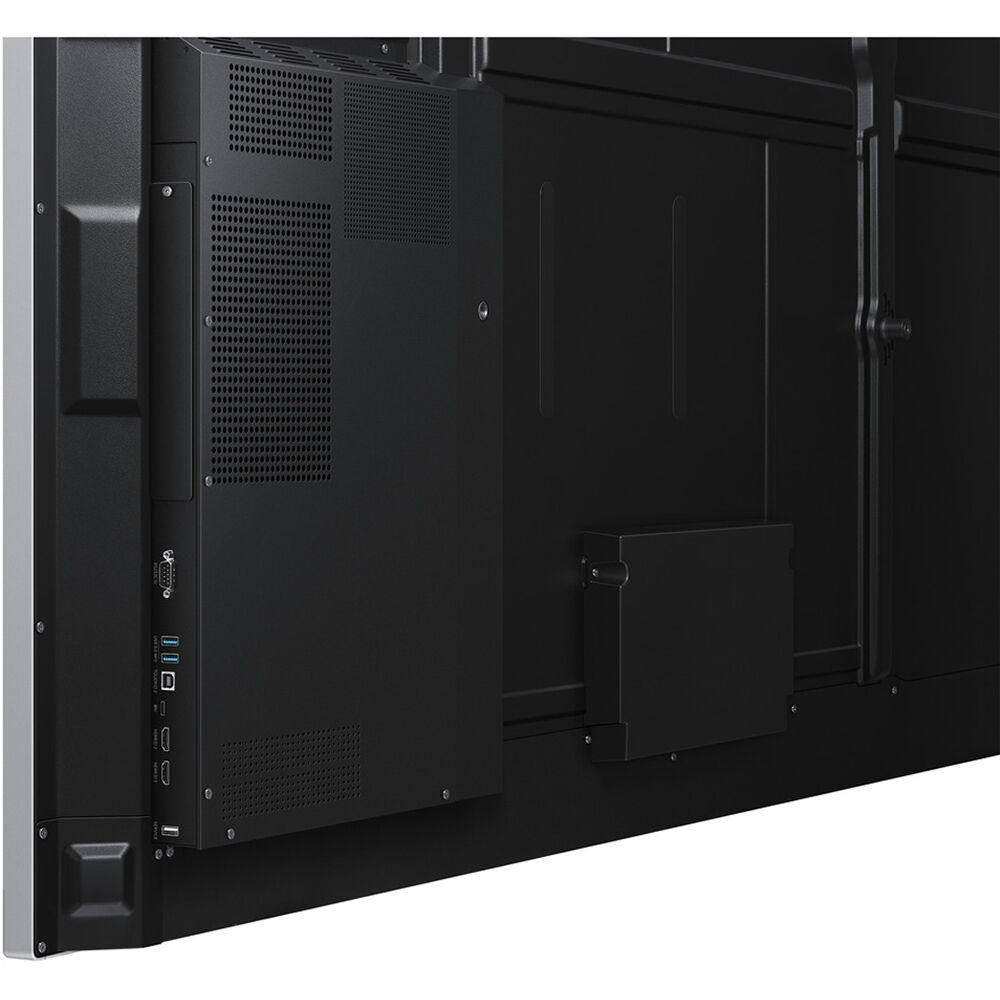

| Video Inputs | 3 HDMI ports, 2 USB-C ports, and 1 OPS slot |
| USB Connectivity | 4 USB 3.0 ports, 1 USB 2.0 port, and 2 USB-C ports |
| Touch Outputs | 2 Touch Out ports, with one front and one rear connection |
| Audio Input | 3.5 mm stereo jack |
| Audio Output | 3.5 mm stereo jack |
| External Control | Touch Input and RS-232C In |
| Wireless Connectivity | No integrated WiFi, Bluetooth, Miracast, or Ethernet network function |
| OPS Support | Supports external device integration through OPS slot |

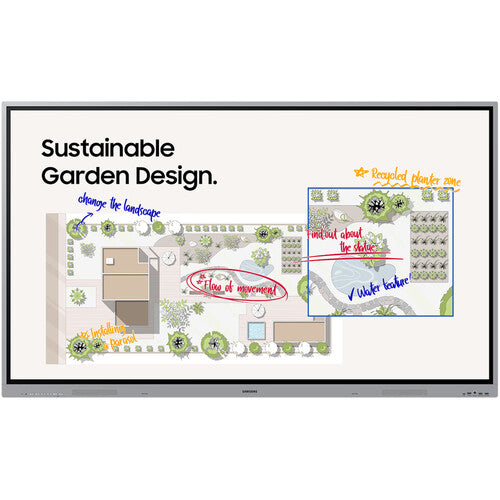

| Annotation Support | Annotation mode allows writing over displayed content from external sources |
| Front Connectivity | Front-facing ports support convenient BYOD use |
| Speakers | Integrated 16W x 2 channel speakers |
| Glass | Protective glass included |
| Glass Thickness | 3.2 mm |
| Glass Hardness | 8H hardness rating |
| Color | Black |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Dimensions Without Stand | 1491 x 898 x 99 mm |
| Packaged Dimensions | 1628 x 1014 x 185 mm |
| Weight Without Stand | 30.5 kg |
| Packaged Weight | 38.0 kg |

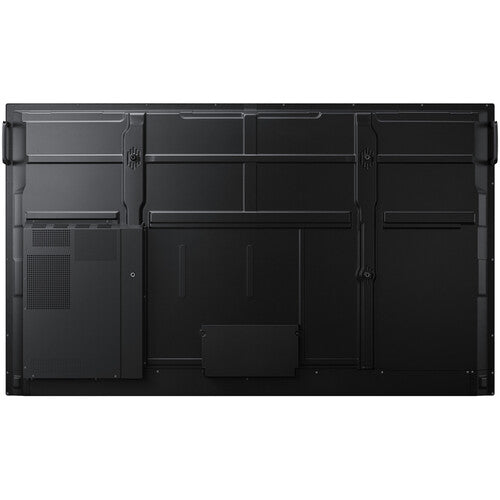

| VESA Mount | 600 x 400 mm |
| Screw Specification | M8, 19 to 21 mm thread depth |
| Included Accessories | Power cable, HDMI cable, touch pen, USB cable, warranty card, and quick setup guide |
| Warranty | 3-year device warranty, with extension options available |
