Description
The BenQ InstaShow VS10 is a wireless video conferencing system designed for hybrid huddle rooms and modern collaboration spaces. As a true BYOD and BYOM solution, it enables seamless wireless screen sharing and conferencing without complicated setup.
With simple plug-and-play functionality, the VS10 allows presenters to instantly share content in up to Full HD 1080p at 60fps. The switchable USB button supports both USB Type-C and USB Type-A connections, making it compatible with a wide range of laptops and devices. Touchback control lets users manage shared content directly from the display, enhancing interactivity and meeting efficiency.
Built with dual-band Wi-Fi connectivity and enterprise-grade security, the VS10 supports up to 32 simultaneous connections, ensuring smooth collaboration in busy meeting environments. Its compact receiver integrates easily into existing AV systems and supports LAN management for streamlined IT control.
Ideal for corporate meeting rooms, training spaces, and collaborative work environments, the BenQ InstaShow VS10 delivers secure, cable-free presentations and reliable hybrid conferencing performance.
| Specification | Details |
|---|---|
| Model | VS10 |
| System Type | Wireless Video Conferencing & Presentation System |
| Output Resolution | Up to 1920 × 1080 @ 60fps |
| Split Screen Mode | 2-way split (on/off) |
| Simultaneous Connections | Up to 32 devices |
| Interface | USB Type-C (includes USB Type-A and HDMI spare cables) |
| Wi-Fi Standard | IEEE 802.11ac (5GHz 2T2R/4T4R), IEEE 802.11n (2.4GHz 2T2R) |
| Frequency Band | 2.4GHz / 5GHz |
| Maximum Data Rate | Up to 867 Mbps (5GHz) + 300 Mbps (2.4GHz) |
| Wi-Fi Security | WPA2-PSK AES 128-bit / WPA2 Enterprise AES 256-bit |
| WAN | 1 Gbps |
| Supported Platforms | Windows, macOS, Linux, Chrome (Wireless Presentation); Windows (Wireless Conferencing) |
| Mobile Display Support | AirPlay |
| Wireless Reach Distance | Up to 20 meters (environment dependent) |
| Power Consumption | 6W typical / 15W maximum |
| Standby Power | Less than 5W |
| Operating Temperature | 0°C to 40°C |
| Net Weight | 212 g |

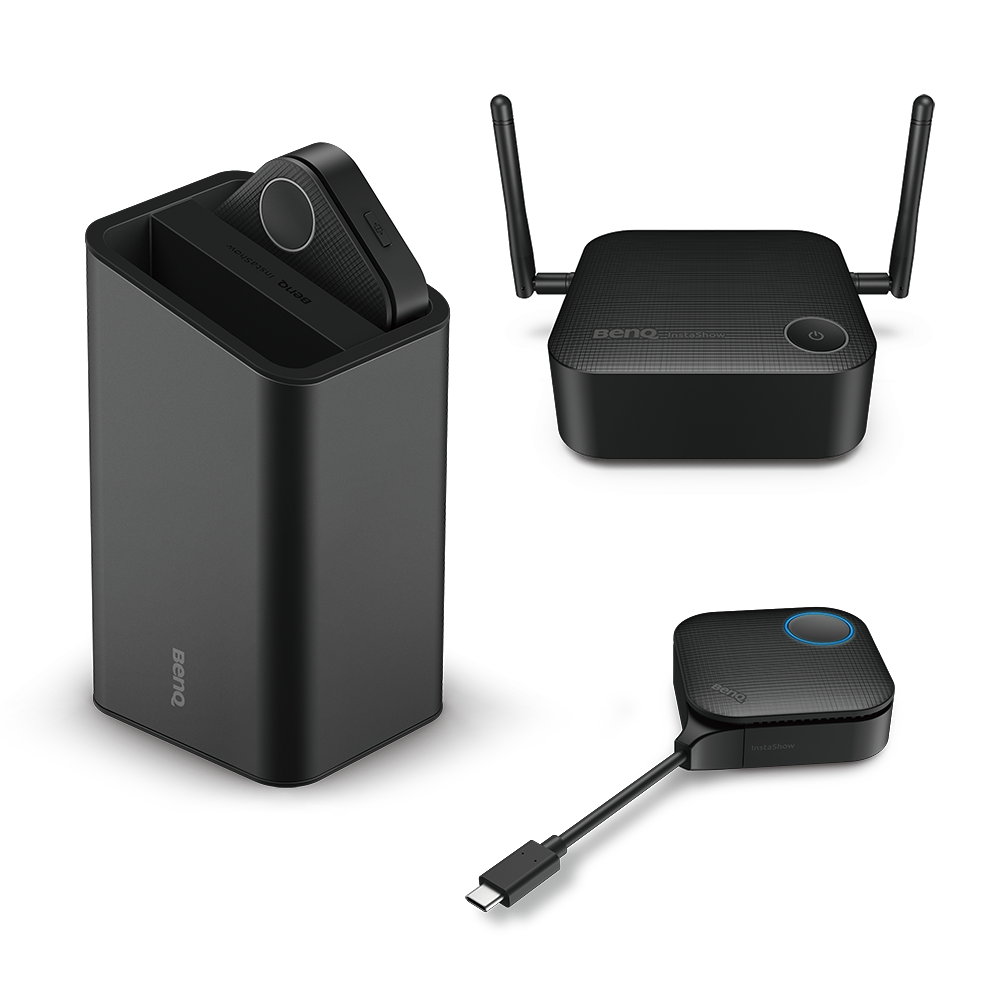

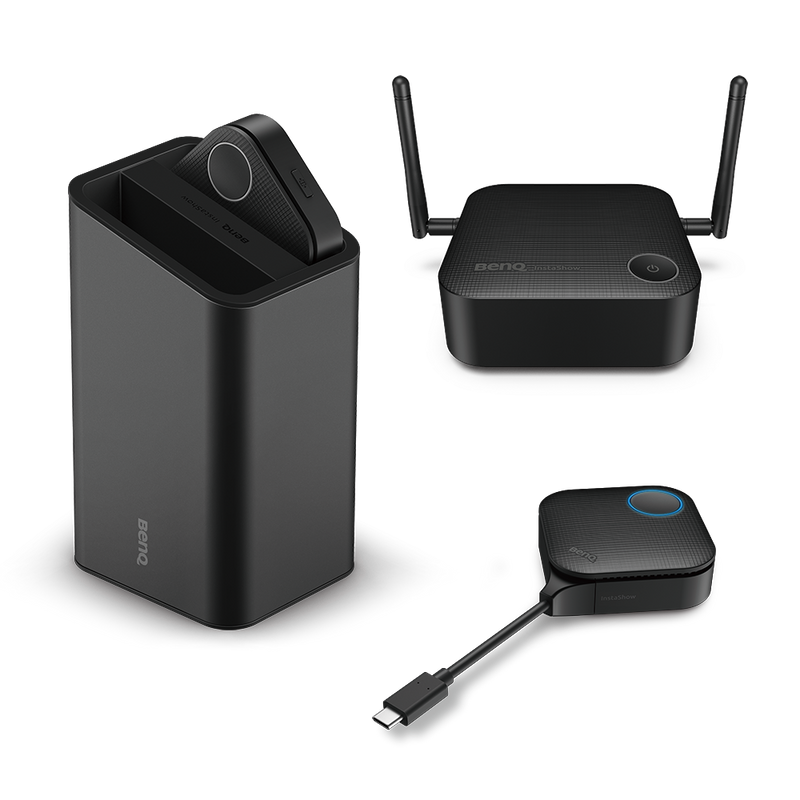

| Included Accessories | Receiver x1, Button x2, Cradle x1, Antenna x2, Power Adapter x1, Quick Start Guide x1, Spare HDMI Cable x2 |
| Connectivity Ports | HDMI Out, USB for Camera/Speaker (Touchback), RJ45 (LAN), DC Power |
