Description
The Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver delivers secure, professional-grade wireless audio performance for mission-critical environments. Designed for government, corporate, and high-level executive applications, this receiver features always-on AES-256 encryption to ensure complete audio privacy.
Housed in a rugged 1RU rackmount chassis, the ULXD4D-GV integrates two independent digital receivers, enabling reliable dual-channel operation with exceptional RF stability. Operating within the G57 frequency band (470 to 608 MHz), it offers an ultrawide 138 MHz tuning range and supports high channel density, making it ideal for complex multi-system deployments.
With Dante-enabled networking via dual Ethernet ports, the receiver seamlessly integrates into modern AV infrastructures for low-latency, multichannel digital audio distribution. Advanced features such as Digital Predictive Switching Diversity, audio summing, and RF cascade ports enhance flexibility, scalability, and performance in demanding environments.
Delivering pristine 24-bit/48 kHz audio, wide dynamic range, and intuitive front-panel controls, the ULXD4D-GV ensures consistent, interference-resistant operation for live sound, conferencing, broadcast, and installed AV systems.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 608 MHz |
| Tuning Range | 138 MHz |
| Number of Audio Channels | 2 |
| Receiver Type | 1U Rackmount (19") |
| Diversity | Digital Predictive Switching Diversity |
| Max Operating Range | Up to 100 m (328.1 ft) |
| Max Systems per Band | Up to 60 channels |
| Dynamic Range | Greater than 120 dB |
| Latency | Less than 2.9 ms |
| Encryption | AES-256 (Always-On) |

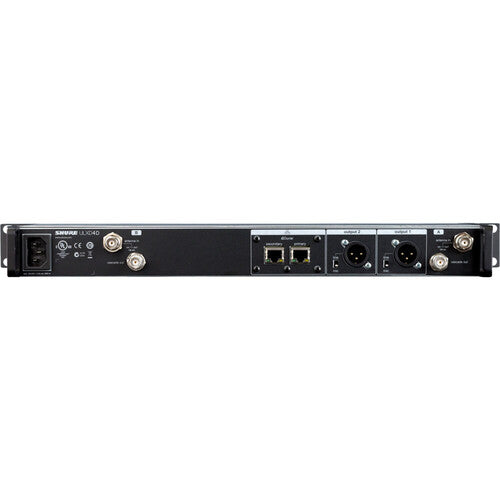

| Audio Outputs | 2 x XLR Balanced Outputs |
| Network Interfaces | 2 x RJ45 (Dante, DHCP, Manual IP) |
| RF Cascade Ports | 2 x RF Cascade Ports |
| Antenna | 2 x Removable BNC 1/2 Wave (Rear-Mount) |
| Frequency Response | 30 Hz to 20 kHz ±1 dB |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Audio Processing | Audio Summing, Internal Limiting |
| Display | Backlit LCD |
| Mobile App Support | Yes (ShurePlus Channels – iOS & Android) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Construction | Aluminum and Steel |
| Dimensions | 19 x 10.8 x 1.7 inches |
| Weight | 7.4 lb (3.4 kg) without antennas |
| Included Transmitters | Not Included |
| Microphone Included | Not Included |
| Charging Case Included | Not Included |
